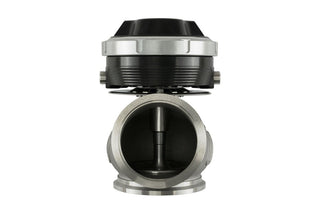

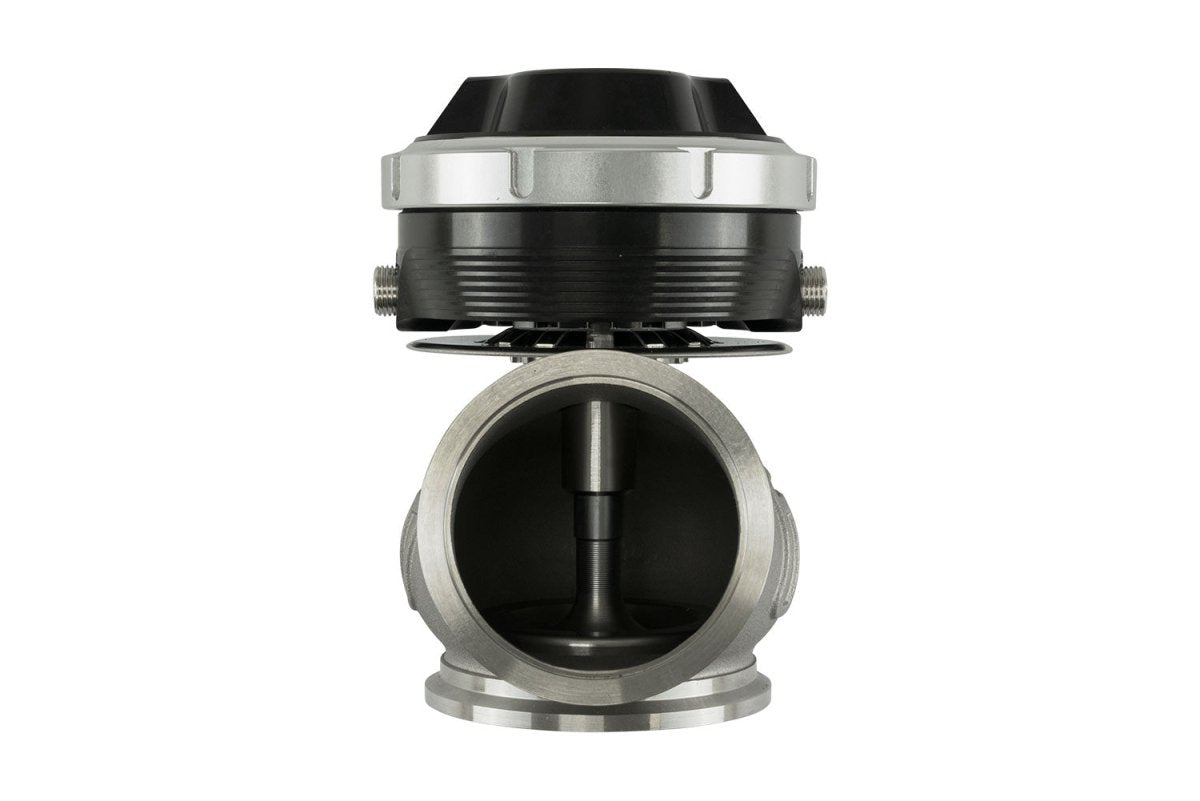

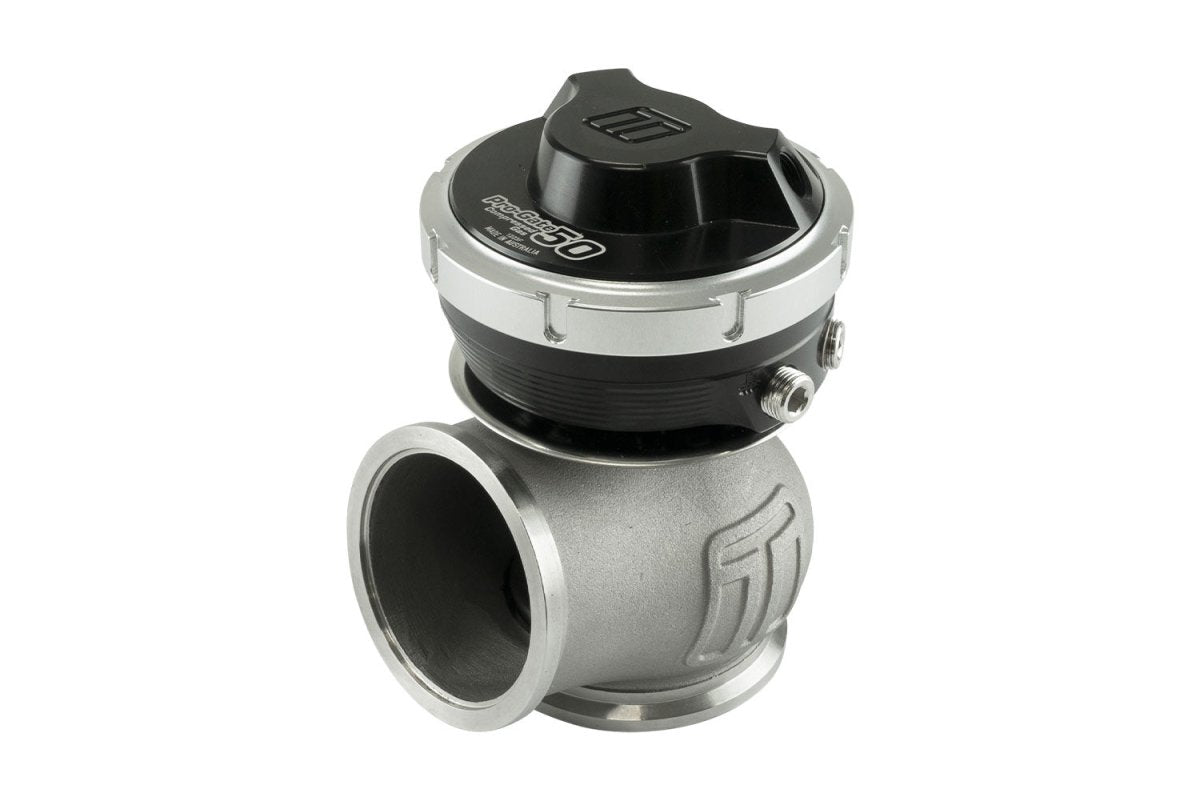

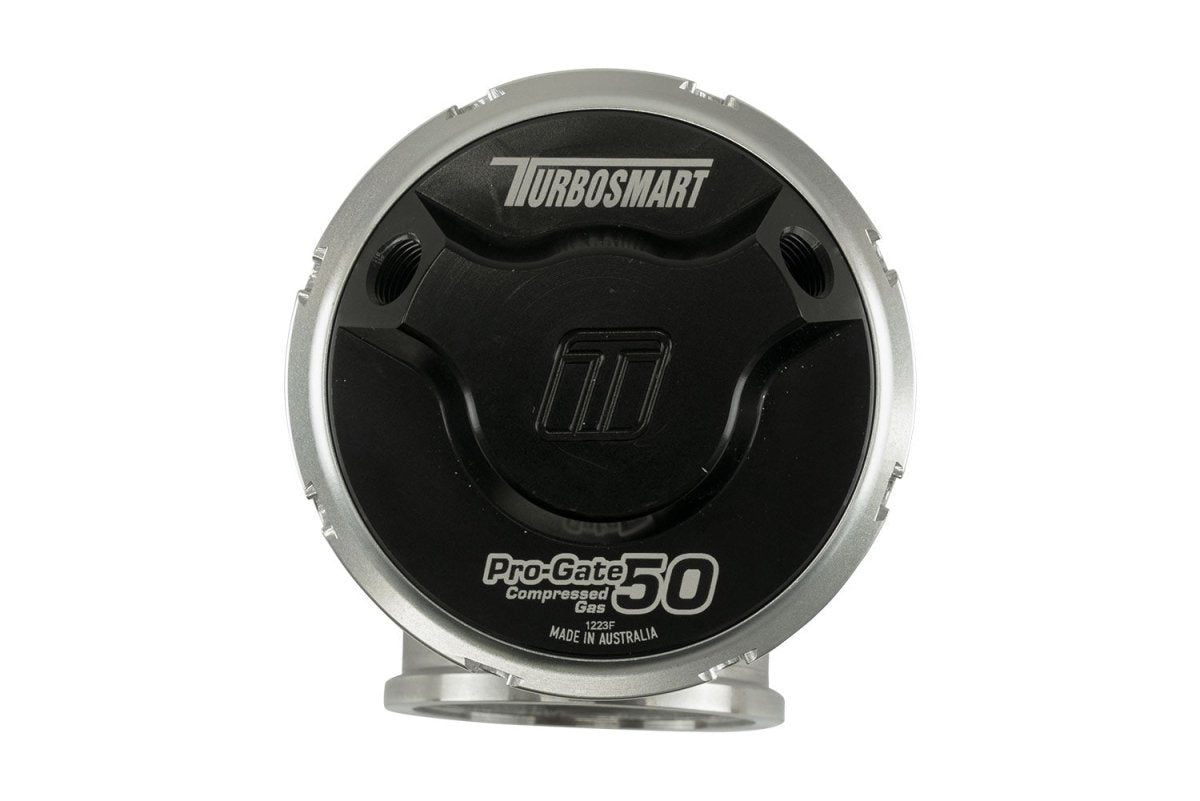

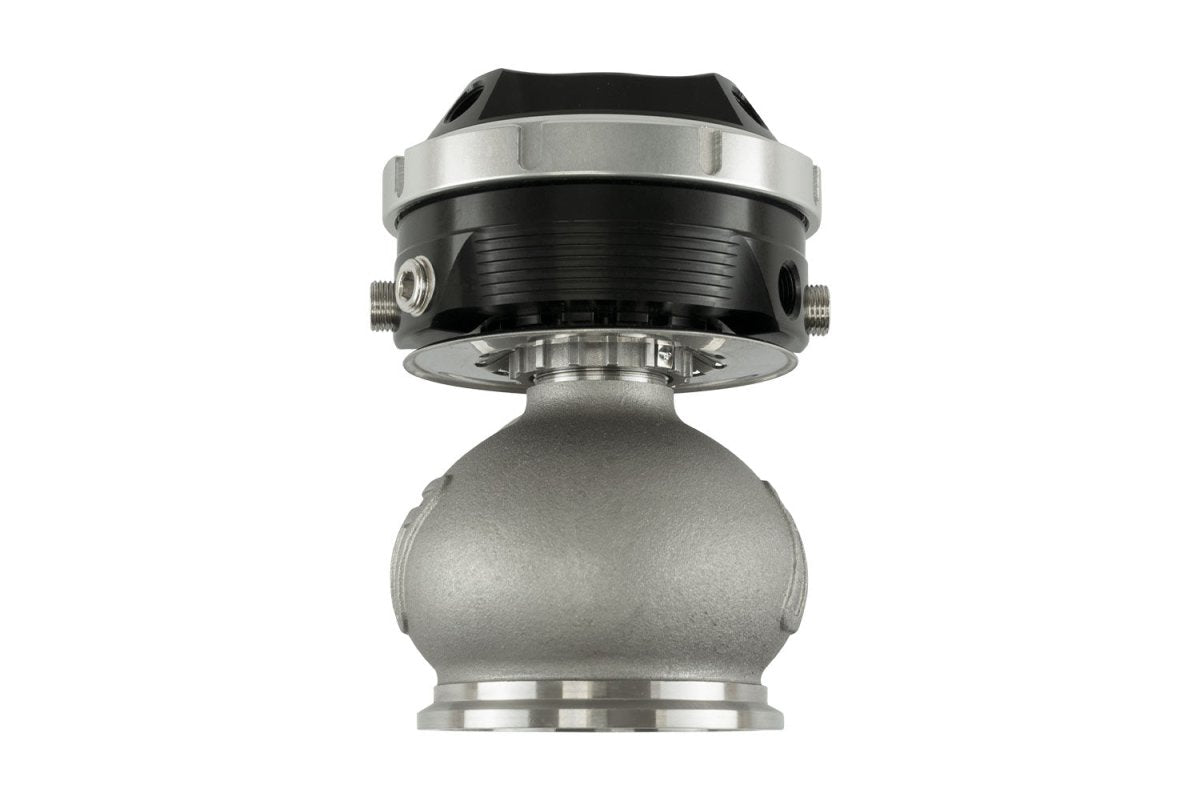

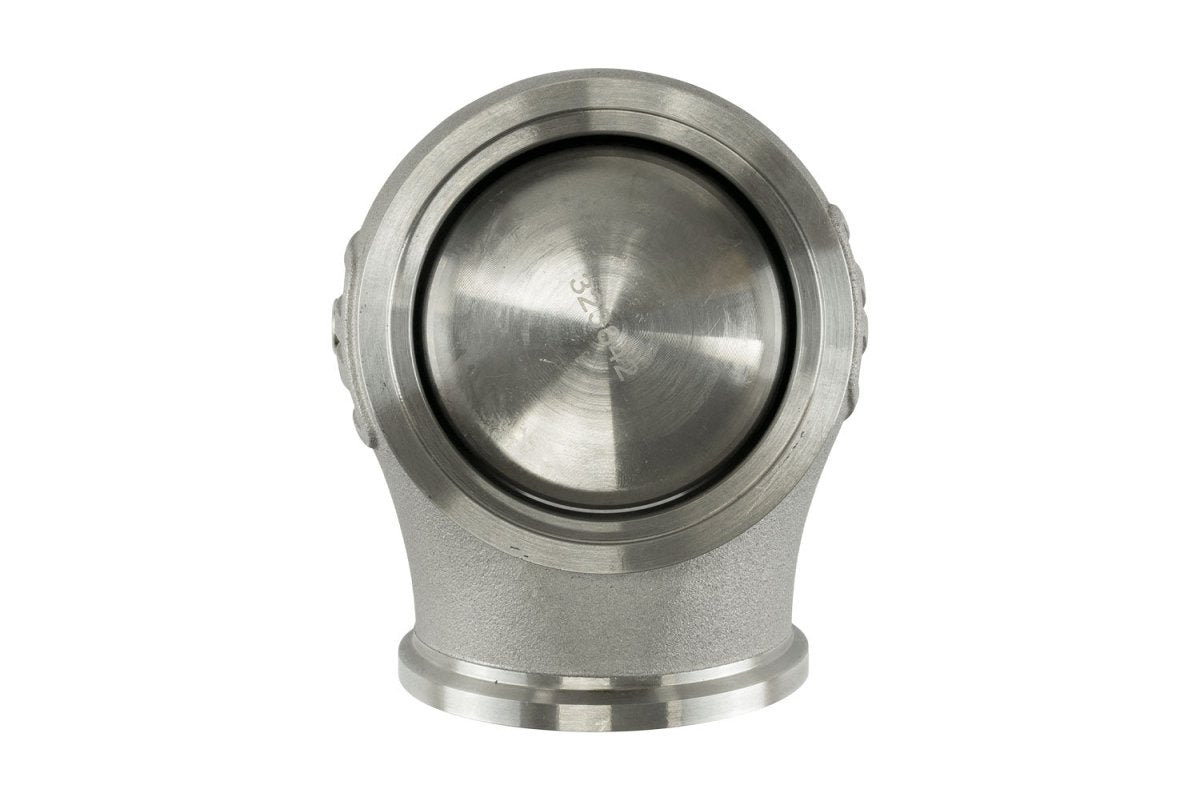

Turbosmart GenV ProGate Compressed Gas External Wastegate
Fits Most Models
TS-0554-1202
Overview:
The Turbosmart GenV ProGate WG50 Compressed Gas external wastegate is a high-performance 50mm wastegate engineered for advanced boost control strategies that require active top chamber pressure biasing. Ideal for applications such as CO2 drag racing or compressed air systems, this wastegate offers exceptional boost bandwidth and precise control. Designed for enthusiasts and professionals who demand reliability and versatility, the GenV ProGate delivers outstanding thermal performance, fatigue resistance, and flow efficiency to ensure long-lasting, consistent operation under extreme conditions.
Whether you are upgrading from a previous generation or building a high-boost system, the GenV ProGate is a cost-effective solution that combines cutting-edge technology with proven durability to optimize your vehicle’s boost management.
Key Features:
The GenV ProGate Compressed Gas external wastegate incorporates advanced engineering and premium materials to deliver superior performance and adaptability.
- 50mm valve size with Nitronic 60 valve guide and high-temperature 347 stainless steel body for enhanced durability and heat resistance.
- Inverted diaphragm design specifically suited for high-pressure CO2 or compressed air systems, capable of handling large pressure differentials.
- Class-leading thermal performance and fatigue resistance ensure reliable operation in demanding environments.
- CFD-optimized and bench-validated flow performance for maximum efficiency and precise boost control.
- Rotatable and clock-able actuator housing with variable actuator cap and base allows 360-degree routing of reference hoses for flexible installation.
- Includes base spring options of 3 and 5 PSI to tailor boost response to your specific setup.
- Strap-type V-band clamps and 50mm V-band fitment provide secure, leak-free connections.
- Optional liquid actuator cooling provision and position sensor available separately for enhanced control and thermal management.
- Direct-fit upgrade for all Gen4 Turbosmart wastegates, maintaining the same mounting orientation for easy replacement.
Construction & Design:
The GenV ProGate wastegate is a ground-up redesign of Turbosmart’s classic external wastegate, incorporating modern materials and engineering techniques. The body is constructed from high-temperature 347 stainless steel, paired with a Nitronic 60 valve guide to withstand extreme heat and pressure. The inverted diaphragm design is engineered to handle compressed gas applications, such as CO2, with large pressure differentials without compromising durability.
Its actuator housing is fully rotatable, allowing for customizable hose routing to fit a wide range of engine bays and boost control setups. The unique collar-locking system ensures secure assembly and easy maintenance. Additionally, the inclusion of strap-type V-band clamps and weld flanges for inlet and outlet connections simplifies installation and enhances sealing reliability.
Installation & Fitment:
This wastegate fits most vehicle models and is designed as a direct replacement for all Gen4 Turbosmart wastegates, making it an ideal upgrade without the need for modifications. The mounting orientation remains consistent with previous generations, facilitating straightforward installation.
No cutting, drilling, or special tuning is required to install the GenV ProGate, allowing for a hassle-free upgrade to your existing boost control system.
- Direct fit upgrade for Gen4 Turbosmart wastegates
- 360-degree rotatable actuator housing for flexible hose routing
- Strap-type V-band clamps included for secure connections

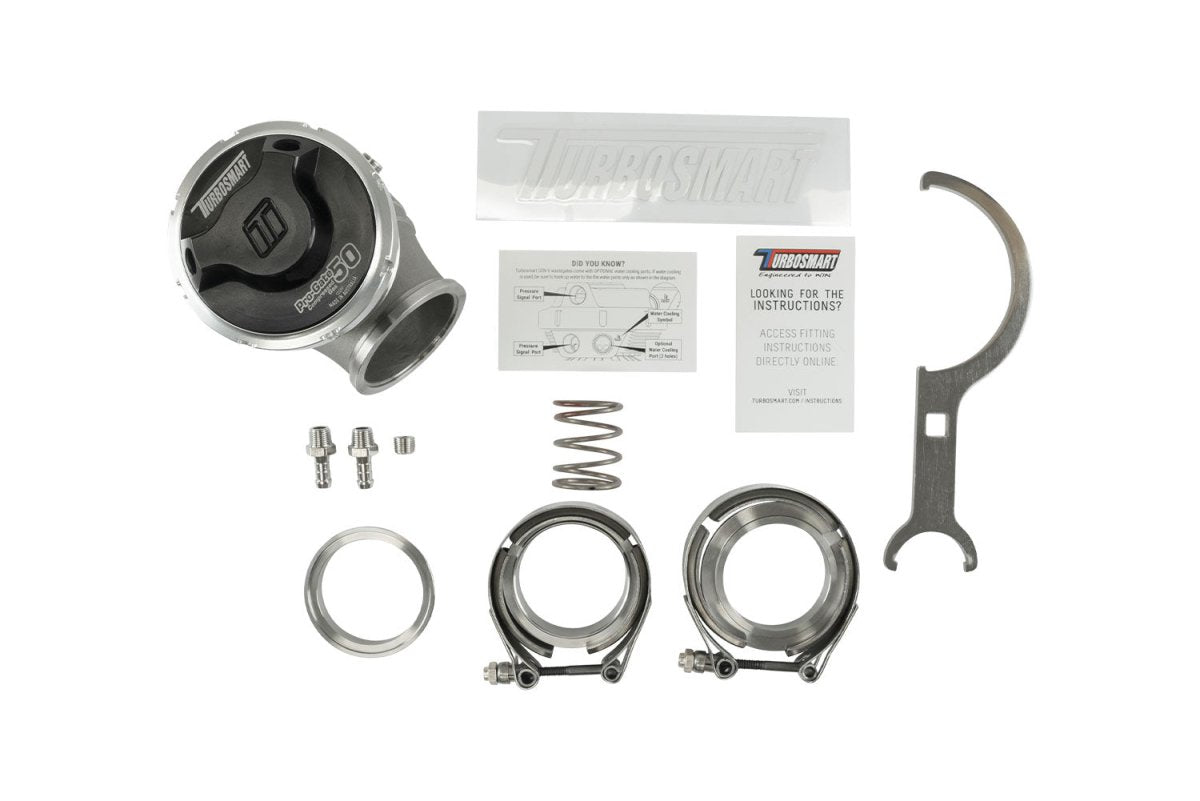

What's Included:
- GenV ProGate WG50 Compressed Gas external wastegate unit
- Set of springs including 3 PSI and 5 PSI options (one installed as described)
- Locking collar tool for secure assembly
- SS316 valve seat for enhanced durability
- Strap-type V-band clamps
- Inlet and outlet weld flanges
- Hose tail and blank fitting kit
- Turbosmart decal
- Installation guide
Ideal For:
The Turbosmart GenV ProGate Compressed Gas external wastegate is perfect for performance enthusiasts, drag racers, and tuners who require precise boost control in high-pressure compressed gas or CO2 applications. It is especially suited for setups demanding wide boost bandwidth and reliable operation under extreme thermal and fatigue conditions.
- CO2 drag racing and compressed air boost control systems
- High-boost turbocharged engines requiring advanced wastegate control
- Users upgrading from Gen4 Turbosmart wastegates seeking improved performance and configurability
- Applications where thermal management and durability are critical
