Turbosmart GenV Hypergate45-Lite External Wastegate
Fits Most Models
TS-0553-1602
Overview:
The Turbosmart GenV Hypergate45-Lite is a high-performance 45mm external wastegate designed for vehicles with limited engine bay space. This compact, low-profile unit offers exceptional thermal management and durability, making it ideal for enthusiasts seeking reliable boost control and longevity. It serves as a direct fit upgrade for all Gen4 Turbosmart wastegates, providing enhanced configurability and superior flow performance for street and track applications alike.
Whether you are upgrading your turbo setup or replacing a worn wastegate, the GenV Hypergate45-Lite delivers precise boost regulation with a compact design that fits most models. Its advanced features ensure consistent performance under demanding conditions, making it a smart choice for daily drivers and performance enthusiasts.
Key Features:
The GenV Hypergate45-Lite combines innovative engineering and premium materials to deliver outstanding performance and durability. Key features include:
- Compact, low-profile actuator housing with reduced height and diameter for tight engine bays
- Class-leading thermal performance to withstand extended high-temperature operation
- CFD-driven and bench-validated flow design for best-in-class flow efficiency and boost control
- Exceptional fatigue resistance for long-lasting reliability under repeated cycling
- Rotatable and clockable actuator housing allowing 360-degree routing of reference hoses
- Optional liquid cooling provision to further enhance thermal management
- Optional position sensor available separately for precise boost monitoring
- 45mm V-band fitment with strap-type V-band clamps included for secure, leak-free connections
- Durable construction featuring Nitronic 60 valve guide and high-temperature 347 stainless steel body
- 17-7 PH stainless steel springs included, with a full range of springs supplied for tuning flexibility
Construction & Design
The GenV Hypergate45-Lite is engineered with premium materials and thoughtful design to maximize performance and durability. Its valve seat is made from SS316 stainless steel for superior wear resistance, while the valve guide uses Nitronic 60, known for excellent strength and heat tolerance. The body is crafted from high-temperature 347 stainless steel, ensuring longevity even under extreme thermal conditions.
The actuator housing is designed to be rotatable and clockable, allowing for flexible installation and optimal hose routing. The unique collar-locking system secures the actuator cap and base, simplifying adjustments and maintenance. Welded inlet and outlet flanges with included V-band clamps provide a robust and leak-proof connection to your turbo system.
Installation & Fitment
The GenV Hypergate45-Lite is a direct fit upgrade compatible with all Gen4 Turbosmart wastegates, making installation straightforward for most turbocharged vehicles. Its compact design suits engine bays with limited space, and the rotatable actuator housing allows for customized hose routing to fit your setup.
No cutting, drilling, or special tuning is required for installation, ensuring a hassle-free upgrade experience. The wastegate comes pre-fitted with springs and includes all necessary hardware for immediate installation.
- Direct fit replacement for Gen4 Turbosmart wastegates
- Compact actuator housing fits tight engine bays
- 360-degree rotatable actuator for flexible hose routing
- Includes all springs and hardware for installation
- No modifications or special tuning needed

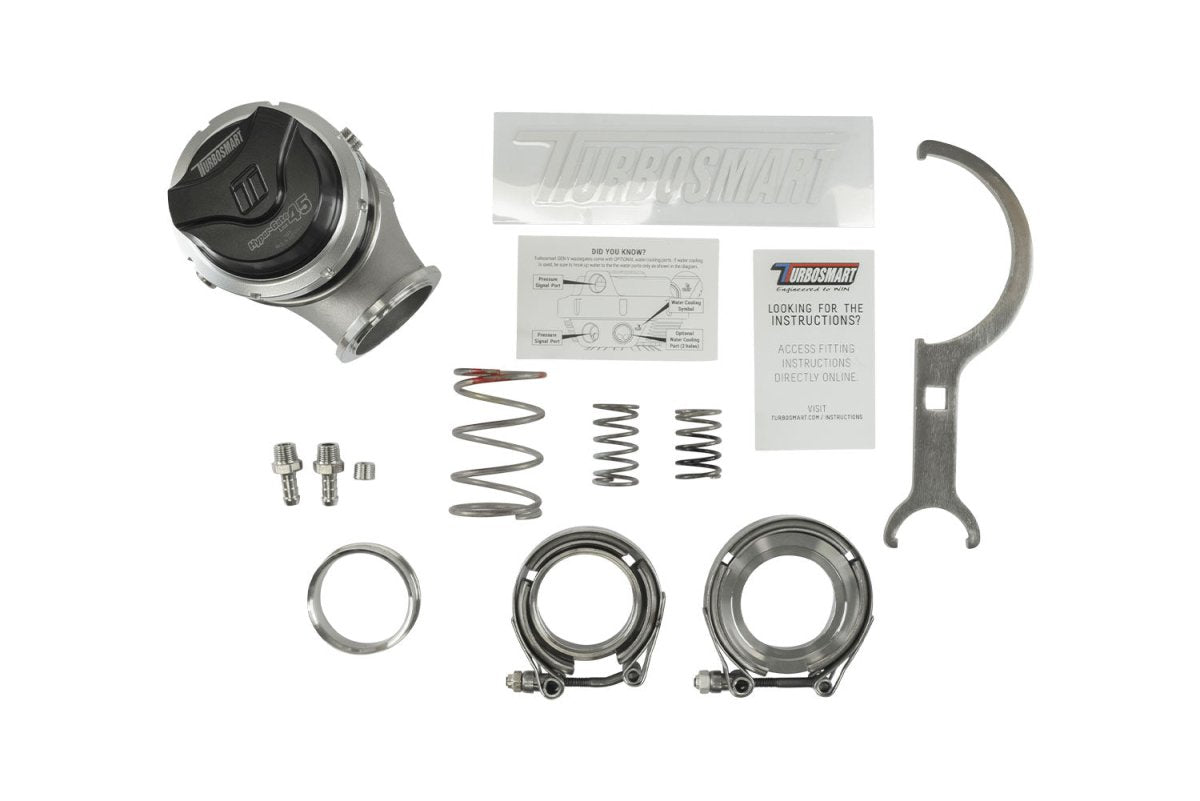

What's Included:
- GenV Hypergate45-Lite wastegate unit
- Complete set of springs pre-fitted and included in the box
- SS316 stainless steel valve seat
- Inlet and outlet weld flanges
- Inlet and outlet 45mm V-band clamps (strap-type)
- Locking collar tool for actuator adjustment
- Four 1/8" NPT plugs and two 1/8" NPT hose tail fittings
- Turbosmart decal and installation instructions
Ideal For:
The GenV Hypergate45-Lite is ideal for turbocharged vehicle owners who require a reliable, high-flow external wastegate with a compact footprint. It suits:
- Performance enthusiasts upgrading their boost control system
- Street and track drivers seeking consistent and precise boost regulation
- Vehicles with limited engine bay space needing a low-profile actuator
- Turbo setups requiring enhanced thermal management and durability
- Anyone looking for a direct-fit, easy-to-install wastegate upgrade
