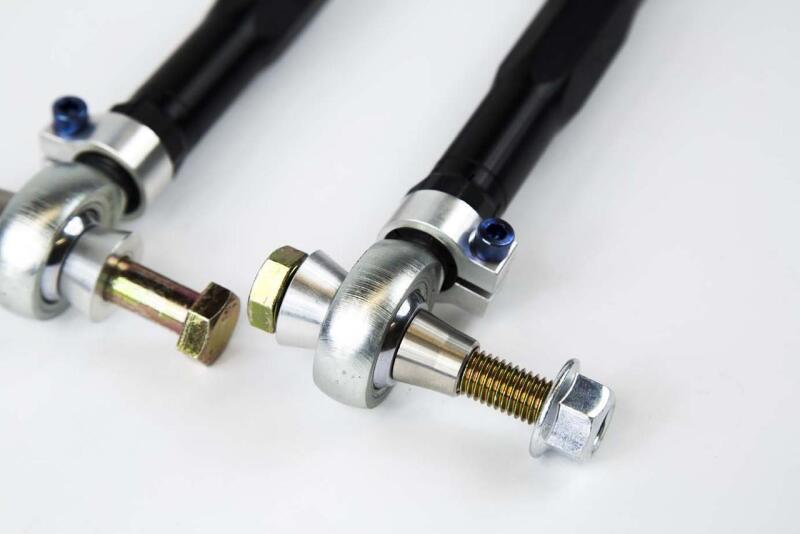

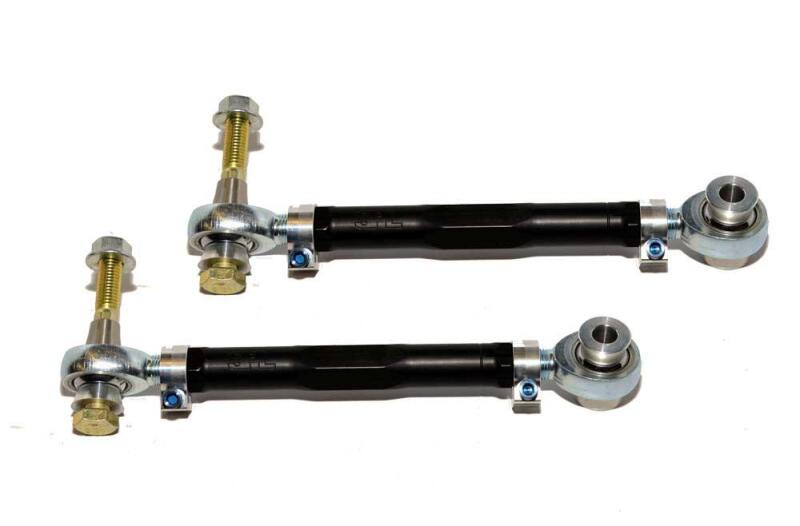

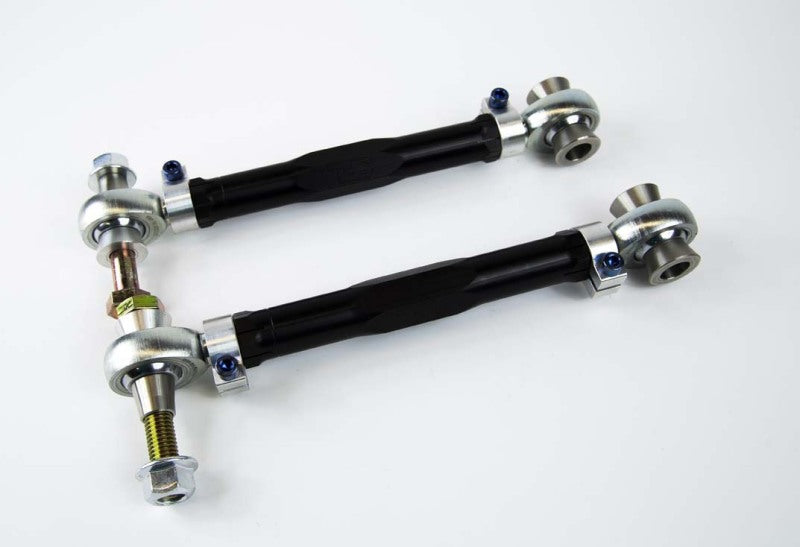

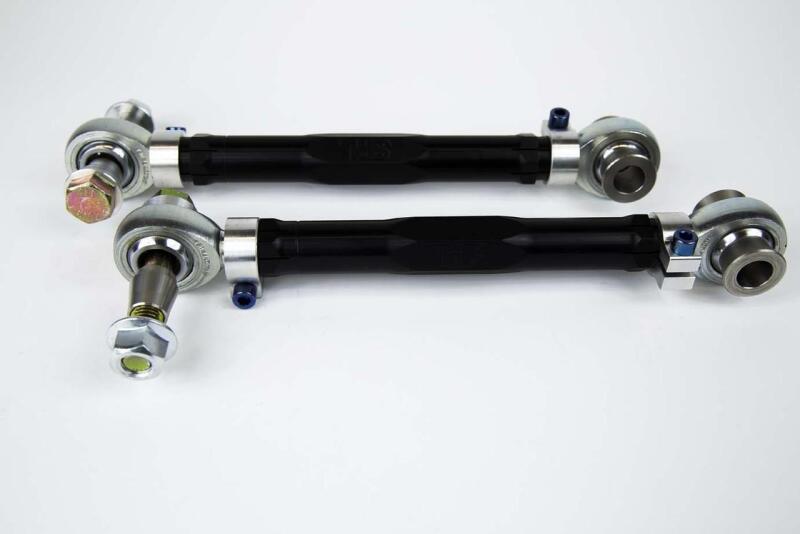

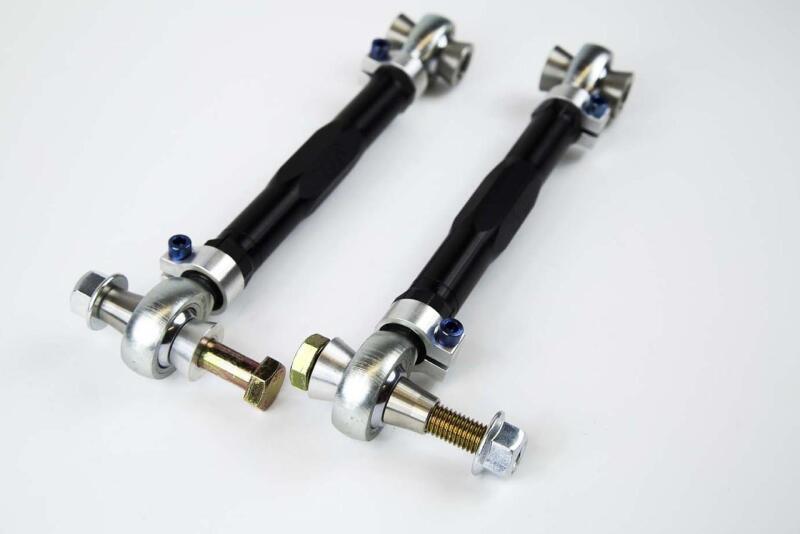

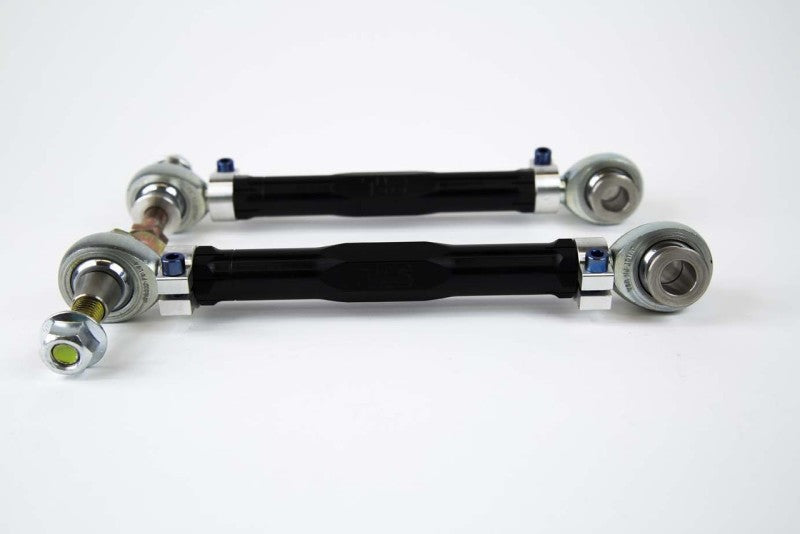

SPL Parts Rear Toe Arms
2013–2020 Subaru BRZ / 2017–2020 Toyota 86 / 2022–2024 Toyota GR86
SPL RTA FRS
Overview:
The SPL Parts Rear Toe Arms are precision-engineered adjustable suspension components designed specifically for the Subaru BRZ (2013–2020), Toyota 86 (2017–2020), and Toyota GR86 (2022+). These rear toe arms significantly enhance vehicle stability and responsiveness by eliminating bushing deflection, a common cause of inconsistent handling and uneven tire wear. Ideal for lowered vehicles and performance enthusiasts, the SPL Rear Toe Arms provide a broad range of toe adjustment to correct static toe angles and maintain optimal alignment under dynamic driving conditions.
By addressing the toe change caused by OEM bushing deflection, these arms deliver sharper turn-in, improved braking stability, and predictable handling from corner entry through exit. The design also simplifies on-car adjustments, making it easier to dial in precise alignment settings without the hassle of jam nuts.
Key Features:
Engineered for performance and ease of use, the SPL Rear Toe Arms offer the following key benefits:
- Lightweight construction at just 2.48 lbs (1.13 kg) per arm, reducing unsprung weight by 23% compared to OEM parts
- Wide range of toe adjustability to accommodate lowered suspension setups and correct rear alignment
- Elimination of bushing deflection and associated toe changes for consistent handling and tire wear
- 360° clamp design replaces traditional jam nuts, allowing for quick and precise on-car adjustments
- Self-cleaning, PTFE-lined FK bearings manufactured in the USA for durability and smooth operation
- Includes titanium 1/4"-20 socket head screws for secure locking of the adjustment without slippage

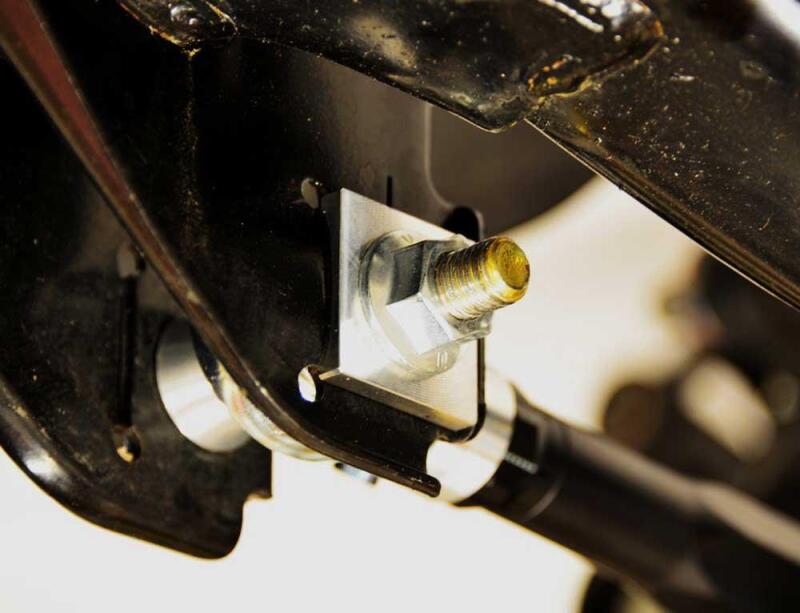

- Compatible with SPL eccentric lockouts to prevent OEM eccentric bolt slippage during aggressive driving
- Black anodized finish for corrosion resistance and a sleek appearance
Construction & Design:
The SPL Rear Toe Arms are crafted from hollow 6061-T6 aluminum, chosen for its excellent strength-to-weight ratio and corrosion resistance. The arms feature anodized black surfaces for durability and aesthetic appeal. The 360° clamps and spacers are also machined from 6061-T6 aluminum, while stainless steel insert spacers provide added wear resistance where needed. Titanium socket head screws secure the assembly, offering superior strength and corrosion resistance without adding unnecessary weight.
Each arm incorporates PTFE-lined FK bearings that are self-cleaning and designed to maintain smooth articulation over time. This combination of premium materials and thoughtful engineering ensures long-lasting performance and reliability under demanding conditions.
Installation & Fitment:

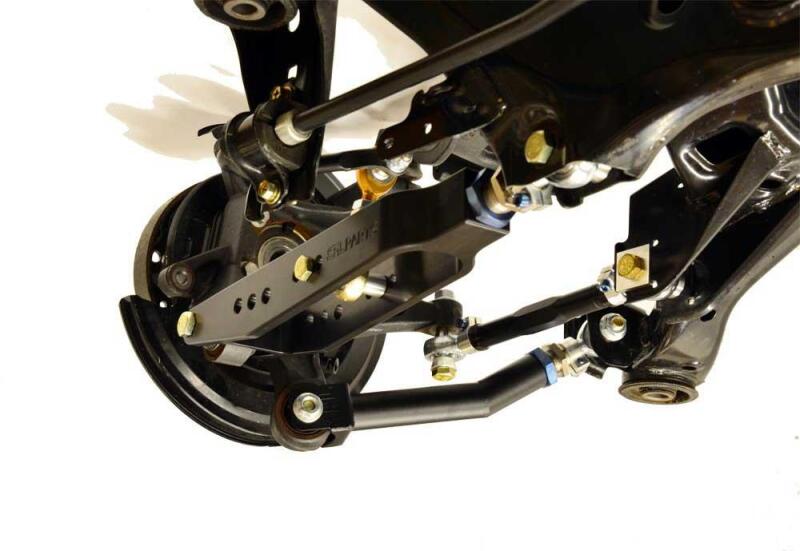

Installation of the SPL Rear Toe Arms is straightforward for experienced enthusiasts and professional installers alike. The arms are designed as direct replacements for the factory components on Subaru BRZ (2013–2020), Toyota 86 (2017–2020), and Toyota GR86 (2022+), requiring no modifications. The 360° clamp system allows for easy length adjustment once installed, enabling precise toe settings without removing the arms from the vehicle.
For optimal results, it is recommended to pair these toe arms with SPL eccentric lockouts to prevent unwanted alignment changes caused by OEM eccentric bolt slippage during spirited driving or track use.
What's Included:
- One pair of SPL Rear Toe Arms (left and right)
- 360° aluminum clamps and spacers
- PTFE-lined FK bearings installed
- Titanium 1/4"-20 socket head Allen screws
- Installation instructions
Ideal For:
The SPL Rear Toe Arms are perfect for Subaru BRZ, Toyota 86, and Toyota GR86 owners seeking improved rear suspension precision and handling consistency. They are especially beneficial for lowered vehicles, track day enthusiasts, and anyone looking to eliminate the common issues of bushing deflection and toe angle changes under load. These arms enhance driving confidence by delivering sharper turn-in, better braking stability, and predictable cornering behavior.
