SPL Parts Rear Swaybar Endlinks (REAR): Subaru BRZ (13-20), Toyota 86 (17-20) & Toyota GR86 (22+)

SPL Parts Rear Swaybar Endlinks (REAR): Subaru BRZ (13-20), Toyota 86 (17-20) & Toyota GR86 (22+)

SPL Parts Rear Swaybar Endlinks enhance handling by providing precise articulation and eliminating sway bar preload. Designed for 2013-2020 Subaru BRZ, 2017-2020 Toyota 86, and 2022-2024 Toyota GR86, these adjustable endlinks feature heat-treated Chromoly studs and Teflon-lined FK bearings for durability and smooth operation. Ideal for street and track use, they ensure reliable performance with stiffer aftermarket sway bars.
Part # SPL RE FRS

free ground shipping
$206.10
$229.00 $206.10
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

  • FREE SHIPPING

    MOST orders over $250 ship free*

  • AUTHORIZED RETAILER

    100% Authorized Direct Retailer

  • LIVE INVENTORY

    Inventory updated throughout the day

  • 0% APR FINANCING

    Easy payment plans through Affirm and Shop Pay

View full details
SPL Parts Rear Swaybar Endlinks enhance handling by providing precise articulation and eliminating sway bar preload. Designed for 2013-2020 Subaru BRZ, 2017-2020 Toyota 86, and 2022-2024 Toyota GR86, these adjustable endlinks feature heat-treated Chromoly studs and Teflon-lined FK bearings for durability and smooth operation. Ideal for street and track use, they ensure reliable performance with stiffer aftermarket sway bars.

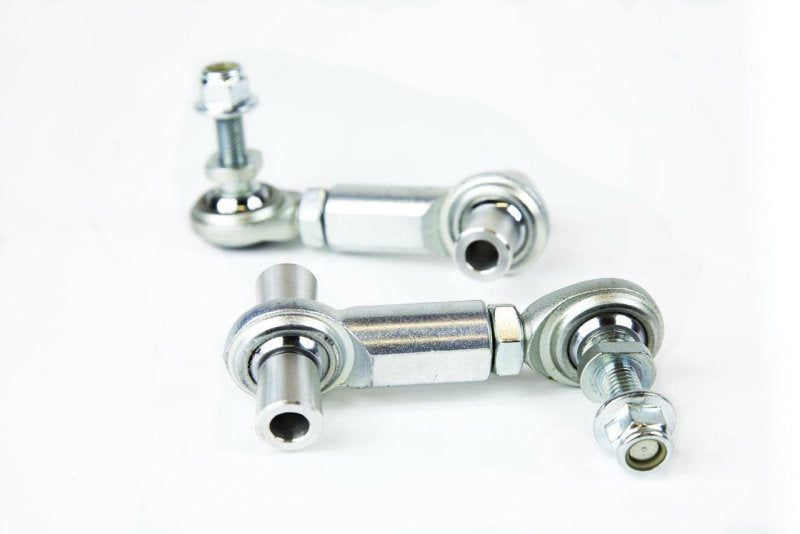

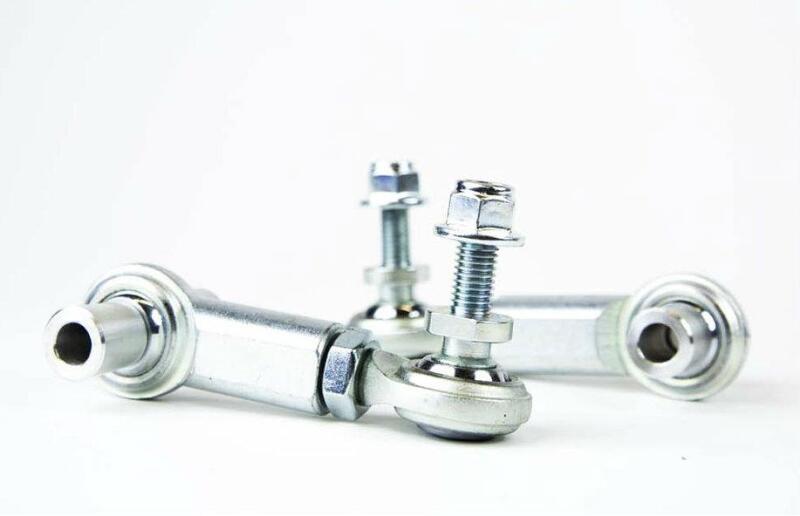

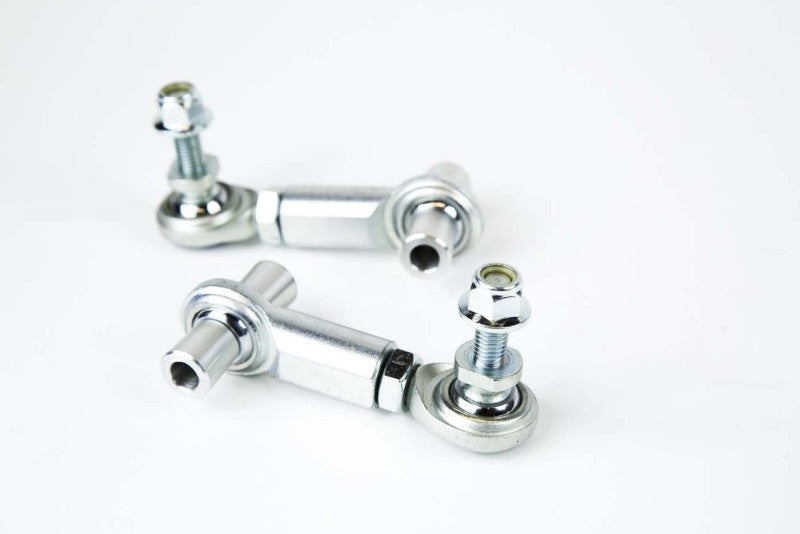

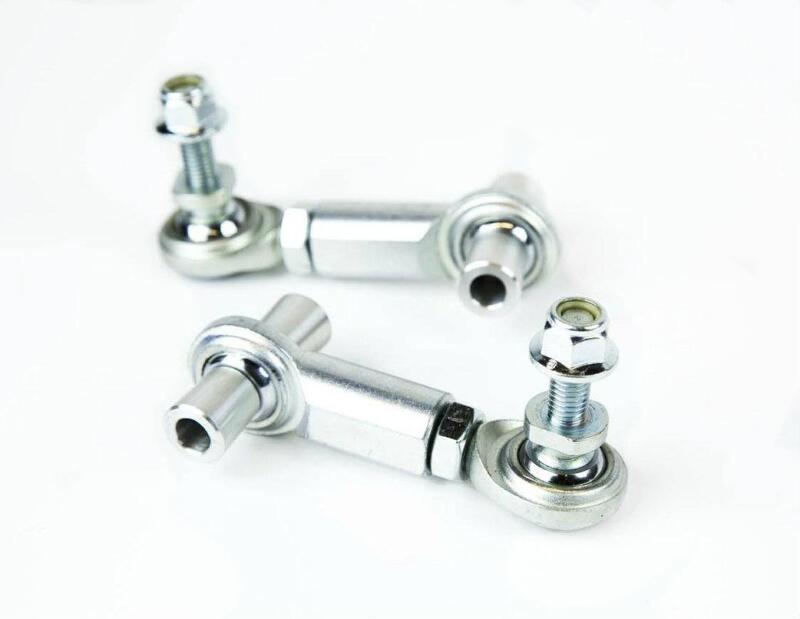

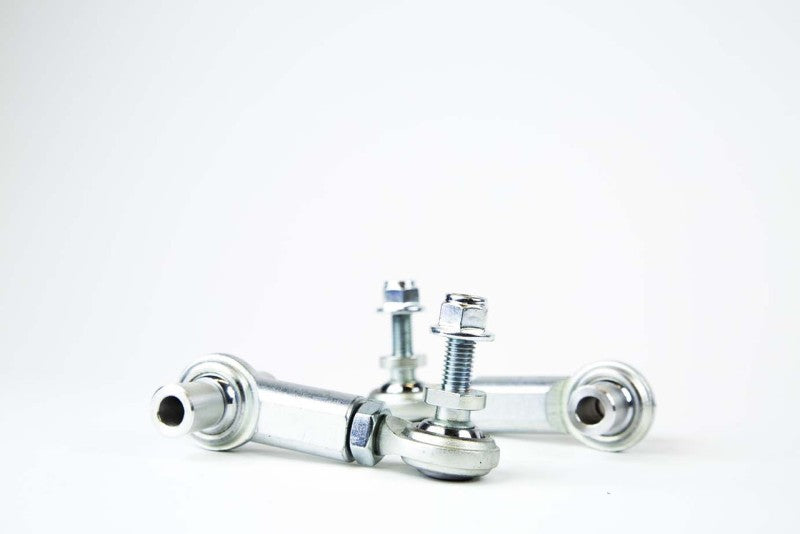

SPL Parts Rear Swaybar Endlinks

2013–2020 Subaru BRZ / 2017–2020 Toyota 86 / 2022–2024 Toyota GR86

SPL RE FRS

Overview:

The SPL Parts Rear Swaybar Endlinks are precision-engineered suspension components designed specifically for the Subaru BRZ (2013–2020), Toyota 86 (2017–2020), and Toyota GR86 (2022+). These endlinks are an essential upgrade for enthusiasts seeking improved handling and suspension response when running stiffer aftermarket sway bars. By replacing the factory endlinks with SPL’s adjustable, high-strength units, drivers can eliminate sway bar preload and reduce binding, resulting in sharper cornering and enhanced vehicle stability.

Built to withstand the rigors of both street and track use, these endlinks provide exceptional articulation and durability, making them ideal for performance-minded owners who demand precision and reliability from their suspension components.

Key Features:

Engineered for maximum performance and durability, the SPL Parts Rear Swaybar Endlinks offer the following key features:

  • Massive 2-piece Teflon-lined FK 1/2" spherical bearings for superior load capacity and smooth articulation
  • Custom heat-treated Chromoly High Misalignment Studs providing up to 65 degrees of articulation to prevent binding
  • Length adjustable design to eliminate sway bar preload caused by uneven spring settling or corner weighting
  • Grade 10.9 high-strength bolts secure the endlinks to the lower control arm for reliable attachment
  • Machined 6061-T6 aluminum spacers ensure precise fitment and alignment
  • Designed specifically for use with stiffer aftermarket sway bars to maximize handling performance
  • Sold as a pair for complete rear sway bar endlink replacement
  • Made in the USA with rigorous quality control and engineering standards

Construction & Design:

The SPL Parts Rear Swaybar Endlinks are crafted from premium materials to deliver outstanding strength and longevity. The core of the design features FK spherical bearings lined with Teflon, which reduce friction and wear while providing a high load capacity suitable for aggressive suspension setups. The Chromoly steel studs are heat-treated to enhance toughness and allow for extreme articulation angles, preventing binding even when adjusted to different sway bar holes.

Each endlink incorporates machined 6061-T6 aluminum spacers that maintain precise geometry and alignment, ensuring consistent suspension performance. The use of Grade 10.9 bolts further guarantees secure mounting to the vehicle’s lower control arms, making these endlinks a robust upgrade over factory components.

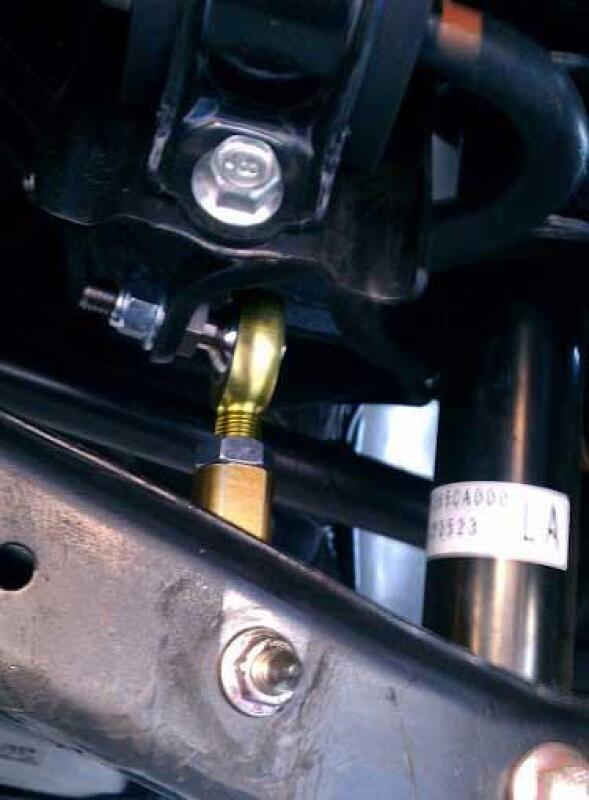

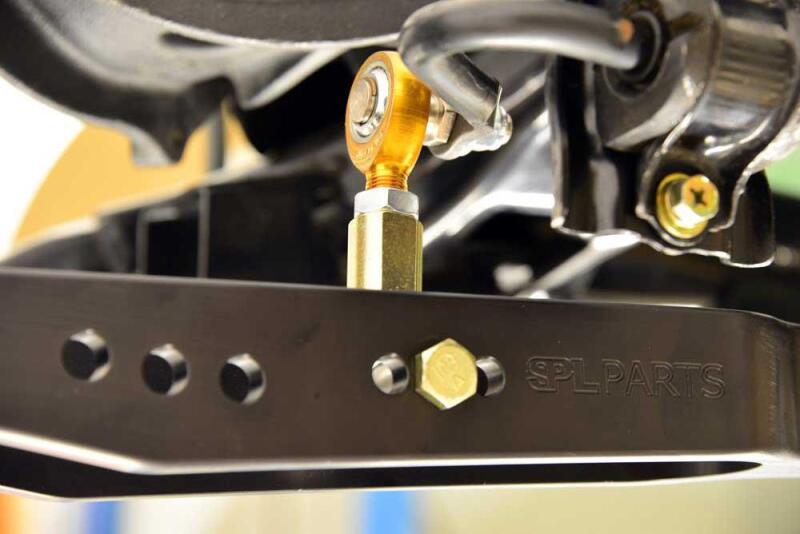

Installation & Fitment:

Installation of the SPL Parts Rear Swaybar Endlinks is straightforward and designed to fit directly onto the rear sway bar and lower control arms of the specified vehicles without modification. The length adjustability allows installers to fine-tune the endlink length to eliminate any preload on the sway bar, which can occur due to uneven suspension heights or corner weighting. This adjustability ensures optimal sway bar function and suspension balance.

These endlinks are compatible with the Subaru BRZ models from 2013 through 2020, Toyota 86 models from 2017 through 2020, and Toyota GR86 models from 2022 onward. They are also suitable for use with aftermarket sway bars that feature multiple adjustment holes.

What's Included:

  • Pair of SPL Parts Rear Swaybar Endlinks
  • Heat-treated Chromoly High Misalignment Studs
  • FK 1/2" Teflon-lined spherical bearings (2-piece)
  • Machined 6061-T6 aluminum spacers
  • Grade 10.9 mounting bolts
  • Installation instructions

Ideal For:

These rear swaybar endlinks are perfect for Subaru BRZ, Toyota 86, and Toyota GR86 owners who have upgraded to stiffer aftermarket sway bars and want to maximize handling precision without binding or premature wear. They are well-suited for both spirited street driving and competitive track environments, providing enhanced suspension articulation and durability. Enthusiasts seeking a high-quality, adjustable endlink solution made in the USA will find these components an excellent choice.

free ground shipping
Part #: SPL RE FRS
Brand: SPL Parts
