Radium Engineering Fuel Surge Tank
Fits Most Models
20-0960
Overview:
The Radium Engineering Fuel Surge Tank (FST) is a high-quality solution designed to prevent fuel starvation in vehicles with inadequate fuel tank baffling. Ideal for performance enthusiasts and daily drivers alike, this surge tank ensures consistent fuel delivery even under demanding conditions such as aggressive cornering or high G-forces. It also offers a straightforward upgrade path for standard fuel systems without requiring modifications to the stock fuel tank or pump.
This surge tank is especially beneficial for vehicles with large fuel demand upgrades, including forced induction setups, providing reliable and stable fueling to support enhanced engine performance.
Key Features:
The Radium Engineering Fuel Surge Tank combines advanced engineering and durable materials to deliver dependable fuel management for a wide range of applications.
- Extruded anodized aluminum 1.5-liter canister for lightweight strength and corrosion resistance
- Removable O-ring sealed billet aluminum caps ensure a secure, leak-free seal
- Multiple 6AN ORB (O-Ring Boss) fittings for versatile plumbing options
- Corrosion-resistant stainless steel hardware and clamps designed for 39-45mm diameter fuel pumps
- Supports both large and small internal diameter pump connections for compatibility with various fuel pumps
- Plug-and-play pump wiring with pre-installed fuel pump sock filters for easy installation and protection
- Anti-rotation stainless steel electrical terminals designed to handle high current demands safely
- Internal flow deflector reduces fuel foam and aeration, ensuring smooth fuel delivery through all ports
- Fuel-resistant internal tubing compatible with gasoline, ethanol, and methanol fuels
- Overflow port to the main fuel tank is required for all installations, maintaining proper fuel circulation
Construction & Design:
The fuel surge tank features a robust extruded aluminum canister finished with anodizing to resist corrosion and wear. The billet aluminum caps are sealed with O-rings to prevent leaks and allow easy access for maintenance or pump installation. All fittings are located on the top of the tank, simplifying plumbing and reducing the risk of leaks or damage.
Internally, the tank includes a flow deflector to minimize fuel aeration and foam, which can negatively impact pump performance. The internal pump mounts securely using fuel-resistant tubing, ensuring durability and compatibility with a variety of fuel types including ethanol blends and methanol.
Electrical connections use anti-rotation stainless steel studs with non-conductive anodized aluminum acorn nuts to prevent accidental short circuits. The wiring inside the tank is insulated with chemically resistant ETFE, providing long-lasting reliability in harsh fuel environments.
Installation & Fitment:
This fuel surge tank is designed to fit most vehicle models, making it a versatile upgrade for many fuel systems. It installs without the need to modify the stock fuel tank or pump, allowing for a clean and efficient setup. However, vehicles with fuel tanks lacking return ports will require customization of the hanger top or filler neck to accommodate the overflow port.
The tank’s plumbing uses standardized 6AN fittings, and the internal pump outlet is 6AN male only. The overflow to the main tank is mandatory to maintain proper fuel circulation and system safety.
No cutting, drilling, or special tuning is required for most installations, making this an accessible upgrade for both professional installers and experienced enthusiasts.

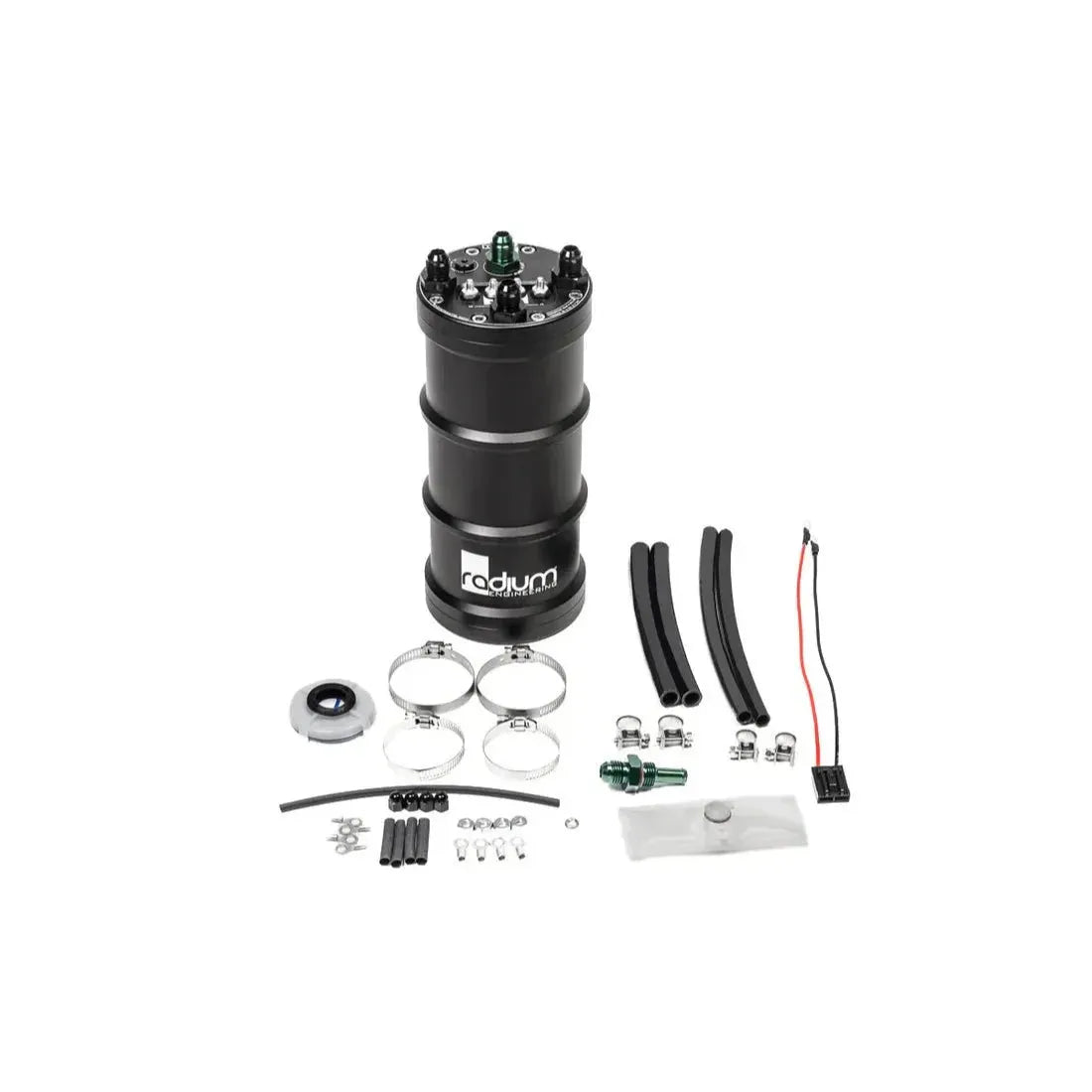

What's Included:
- Extruded anodized aluminum 1.5-liter fuel surge tank canister
- Removable O-ring sealed billet aluminum caps
- 6AN ORB fittings for fuel inlet, overflow, and return lines
- Corrosion-resistant stainless steel hardware and clamps
- Pre-installed fuel pump sock filters
- Plug-and-play wiring harness with anti-rotation electrical terminals
Fuel Pump Compatibility
The Radium Engineering Fuel Surge Tank supports a wide range of popular high-performance fuel pumps (sold separately), including:
- Walbro F90000267, F90000274, F90000285, F90000295, GSS341, GSS342
- AEM 50-1000, 50-1200, 50-1220
- Bosch BR540
- Deatschwerks DW400, DW440 (brushless), DW810 (brushless)
- Protec 11928 (brushless)
- Fuelab 49614 (brushless)
- Ti Automotive E5LM (brushless)
Sock filters are included in the kit for compatible pumps, ensuring clean fuel delivery and protecting the pump from debris.
Ideal For:
- Performance enthusiasts upgrading to forced induction or high-horsepower setups
- Vehicles experiencing fuel starvation due to inadequate tank baffling or high lateral acceleration
- Daily drivers seeking reliable and consistent fueling under all driving conditions
- Racers and track-day vehicles requiring stable fuel supply during aggressive maneuvers
- Anyone looking to upgrade their fuel system without modifying the factory fuel tank or pump
