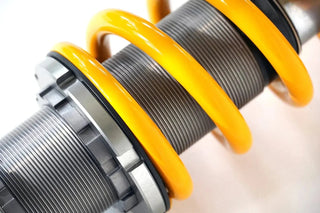

Ohlins Road & Track Coilover System w/ DFV Tech
2022–2026 Toyota GR86 / 2022–2026 Subaru BRZ
SUS MP21S2
Overview:
The Ohlins Road & Track Coilover System with Dual Flow Valve (DFV) technology is engineered specifically for the Toyota GR86 and Subaru BRZ model years 2022 through 2026. Designed for enthusiasts who demand the perfect balance between street comfort and track-ready performance, this coilover kit elevates your vehicle’s handling, responsiveness, and grip.

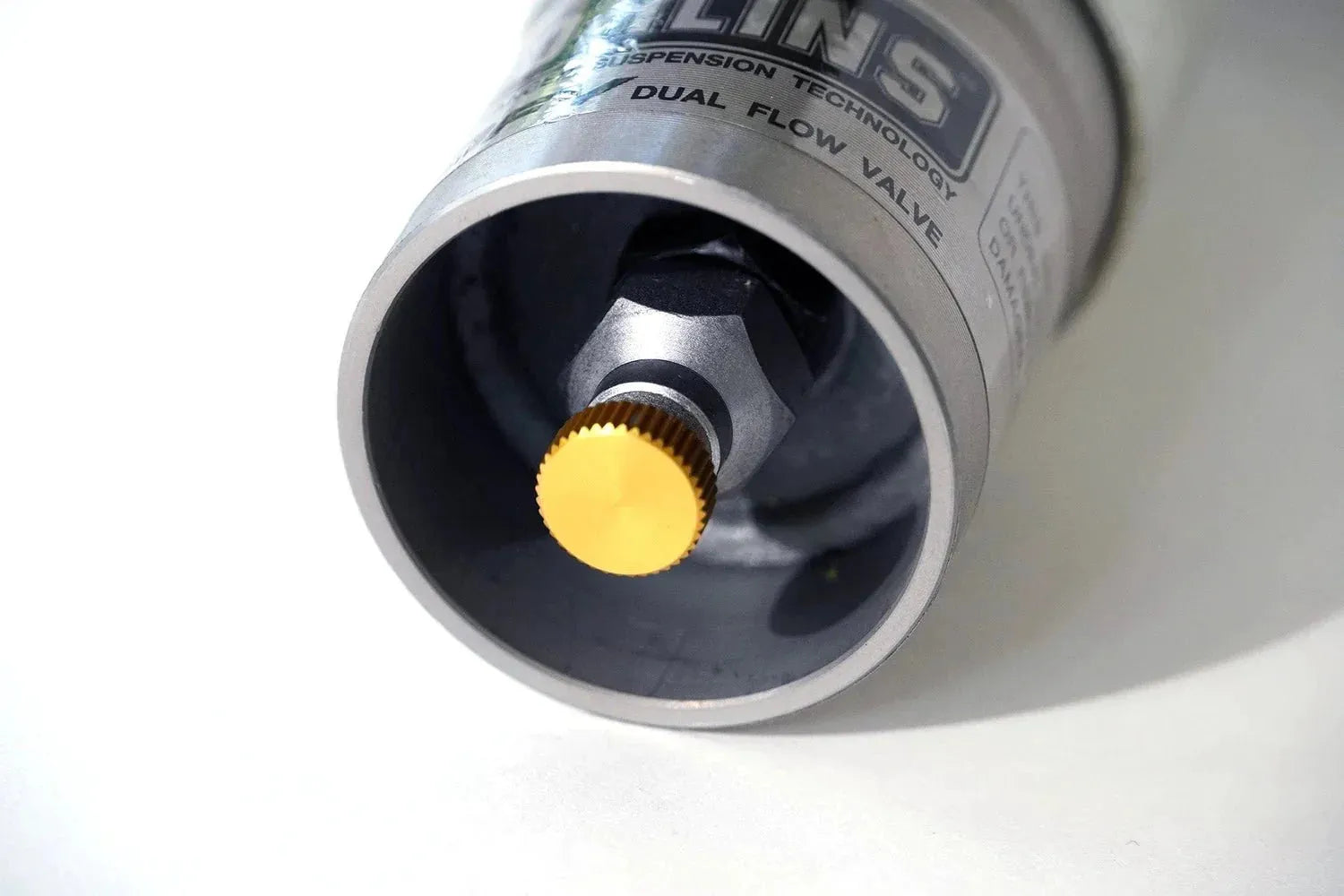

Whether you’re enjoying spirited drives on winding roads or pushing your car on the track, the Ohlins system offers precise adjustability and superior damping control. With a simple turn of the damper’s golden knob, you can tailor your suspension setup for faster response times, improved bump absorption, and enhanced overall driving dynamics.
Key Features:
This coilover system combines advanced suspension technology with durable construction to deliver consistent performance and reliability.
- Ride-height adjustable to fine-tune stance and handling, lowering the front approximately 10–35 mm and the rear 5–25 mm from stock height
- Matched compression and rebound hydrodynamics for balanced damping behavior

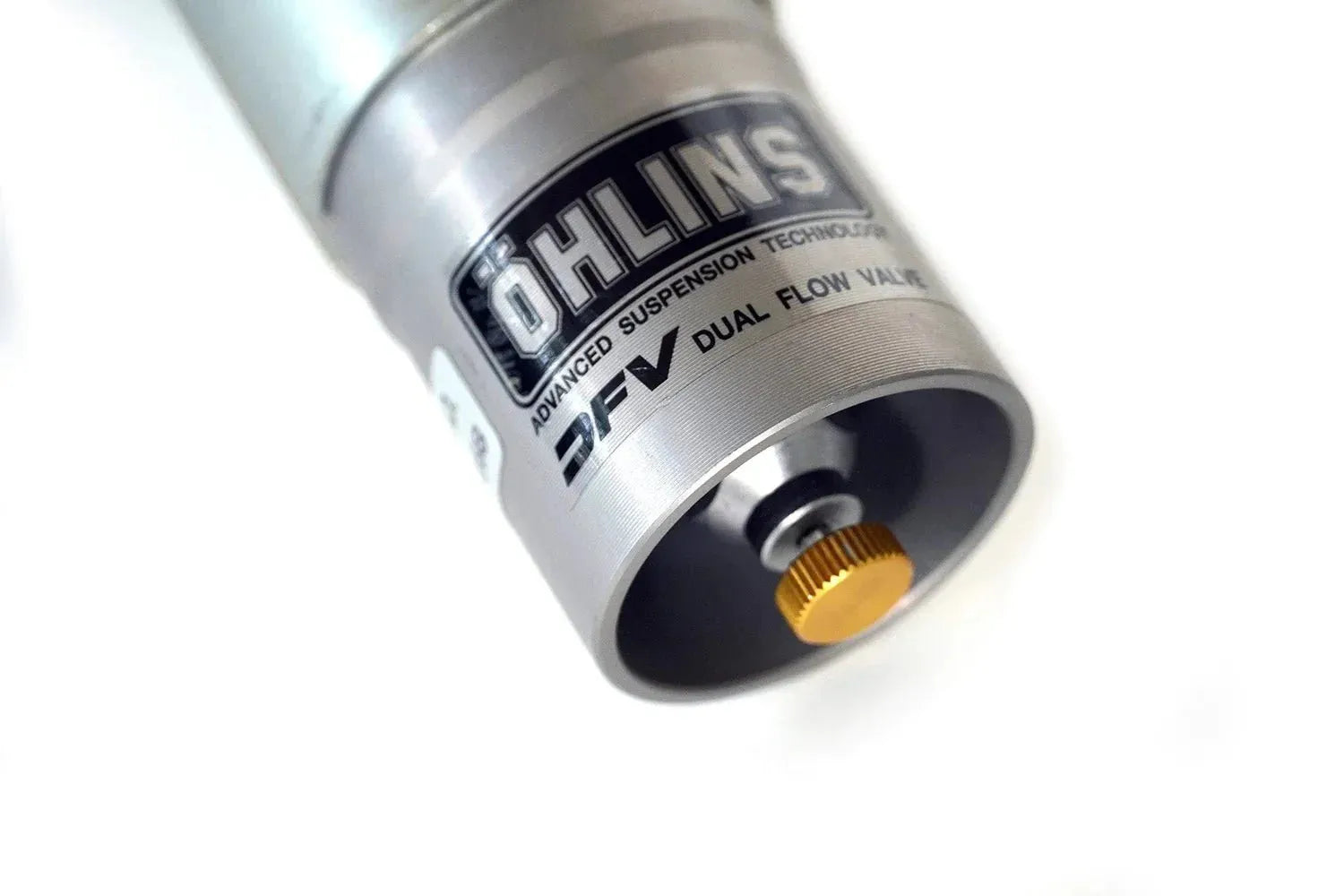

- Unique Dual Flow Valve (DFV) technology enables rapid reaction to road conditions, improving control both on and off the track
- Fully rebuildable design ensures long-term serviceability and performance retention
- Corrosion salt spray tested to ISO 9227 standards for enhanced durability in harsh environments
- Includes all necessary hardware and detailed installation instructions for a straightforward upgrade
- Consistent high-tolerance manufacturing guarantees reliable and repeatable performance

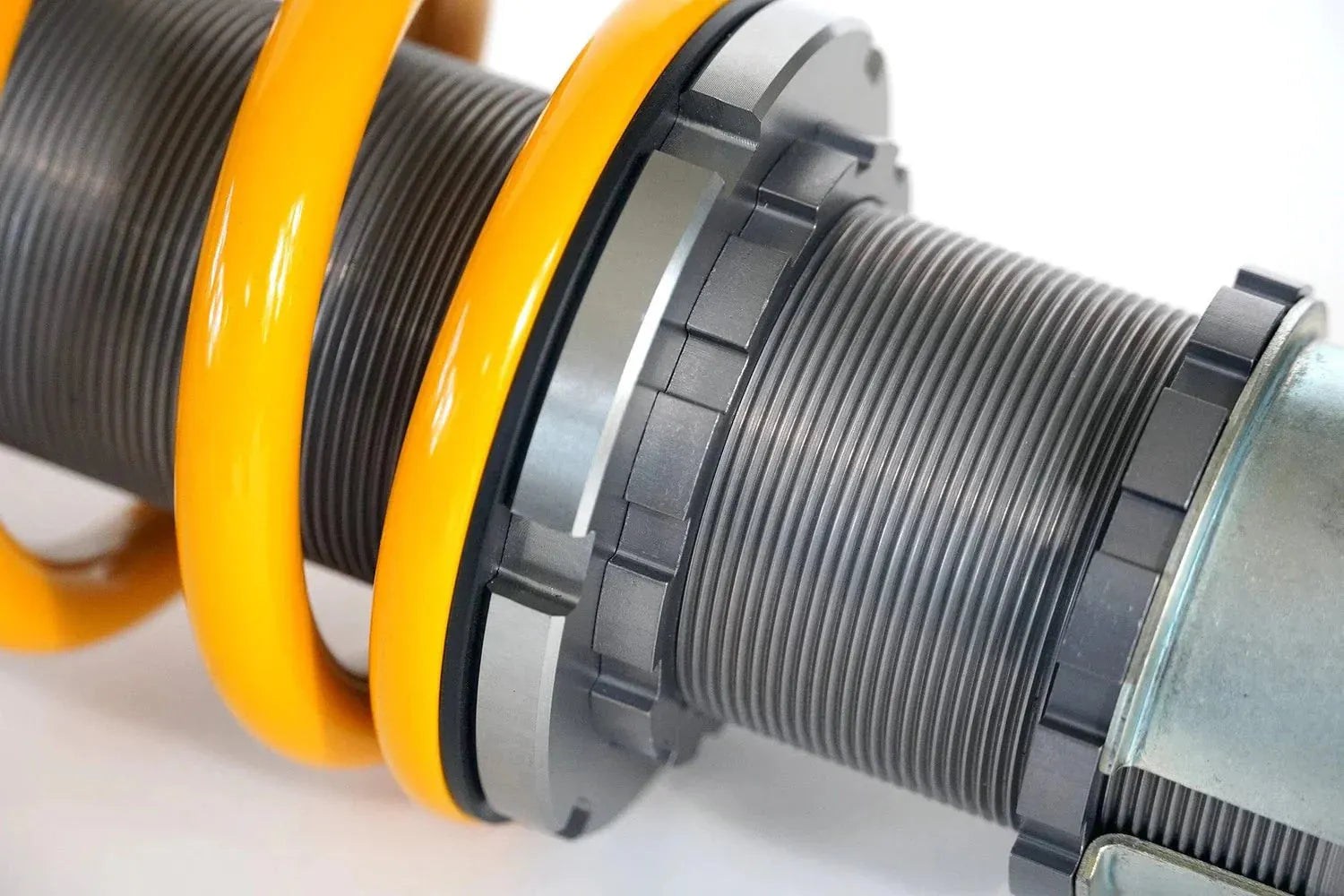

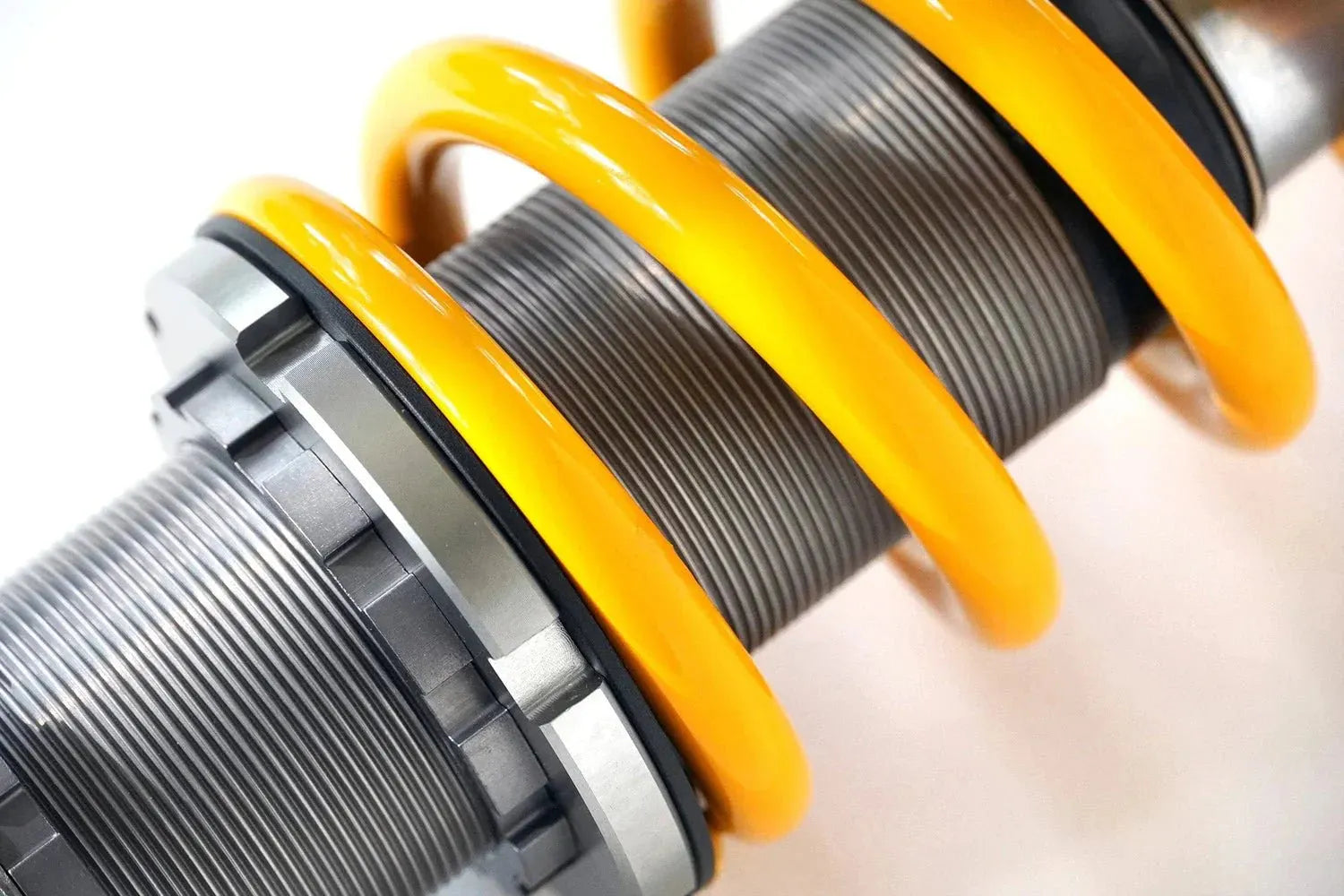

- Spring preload adjusters on both front and rear for precise tuning of ride quality and handling
- Dust covers protect shock components from debris and extend service life
Construction & Design:

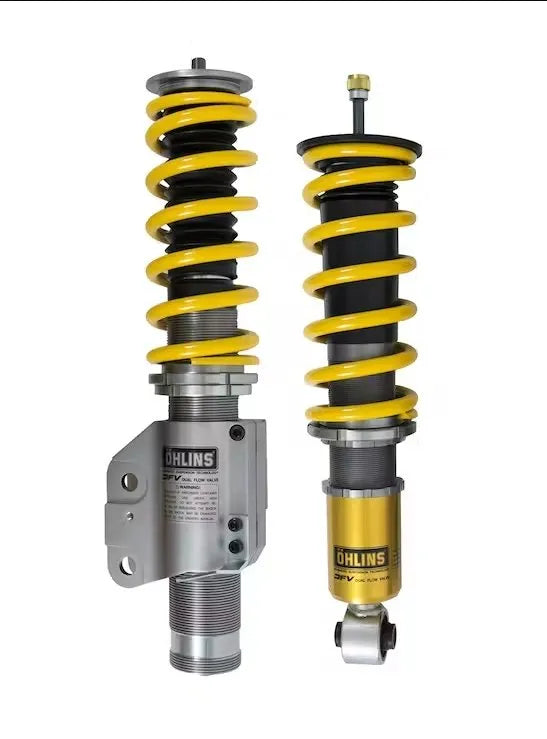

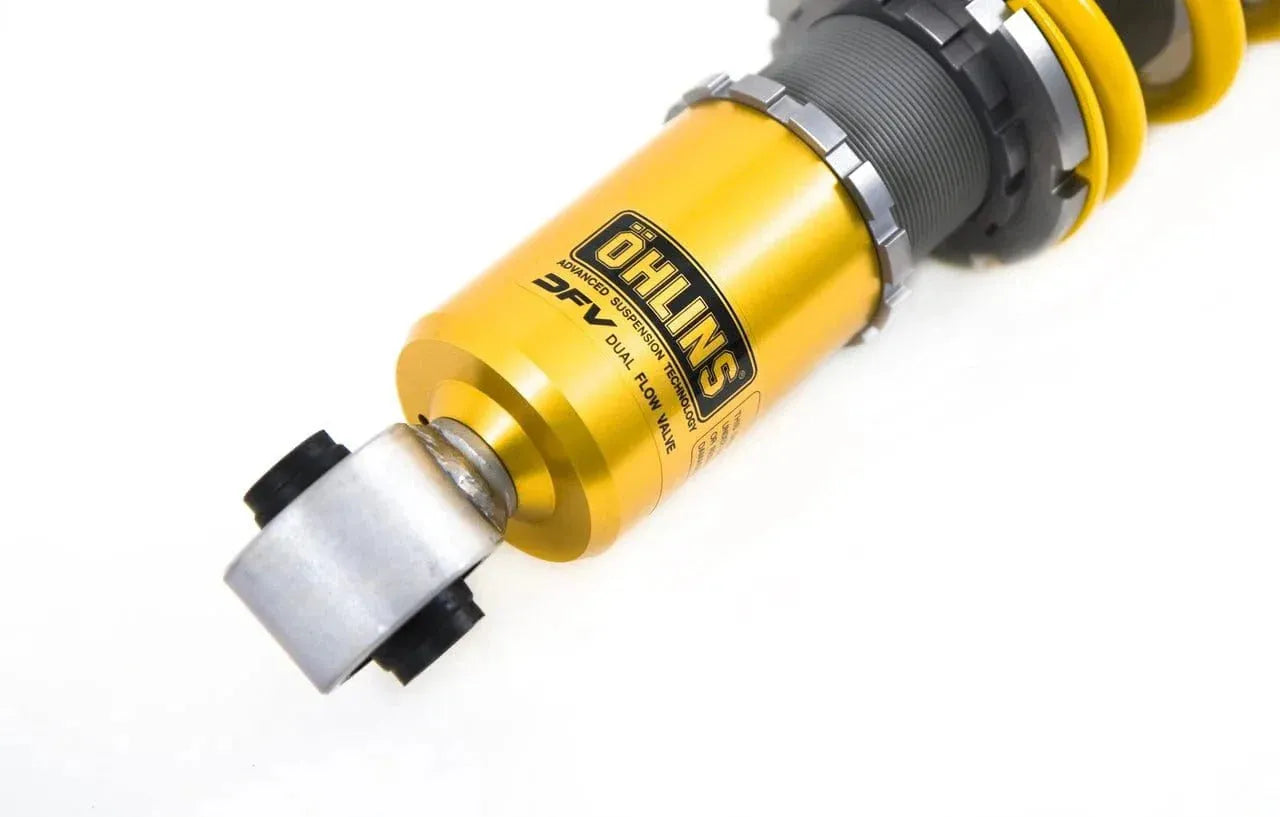

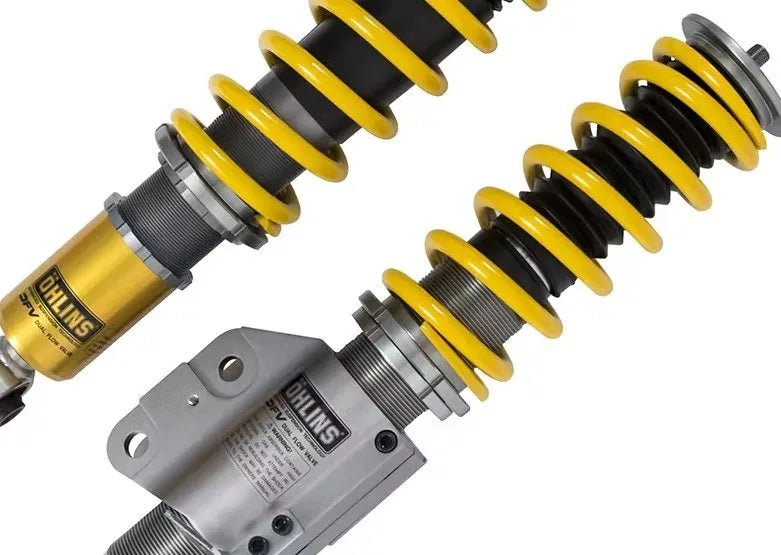

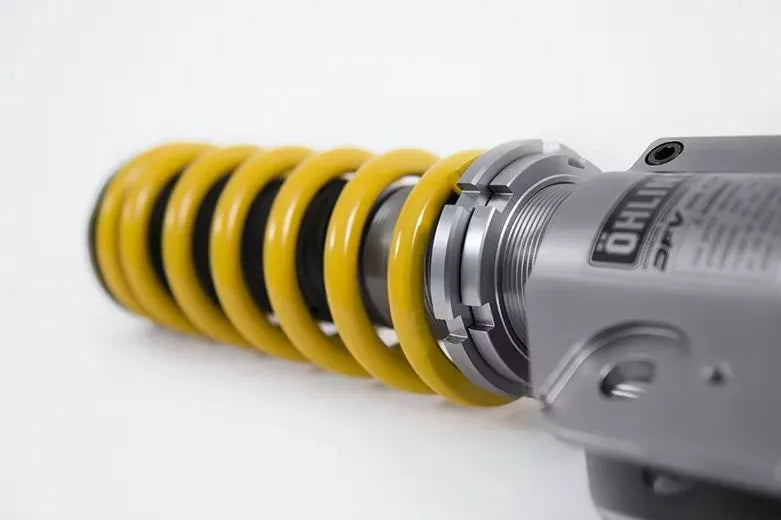

The front suspension features a McPherson strut design with upside-down shocks, combining lightweight construction with robust damping capabilities. Compression and rebound damping are controlled by a single adjuster, simplifying setup while maintaining precise control. The rear uses conventional shock absorbers with similar damping adjustability and spring preload control.

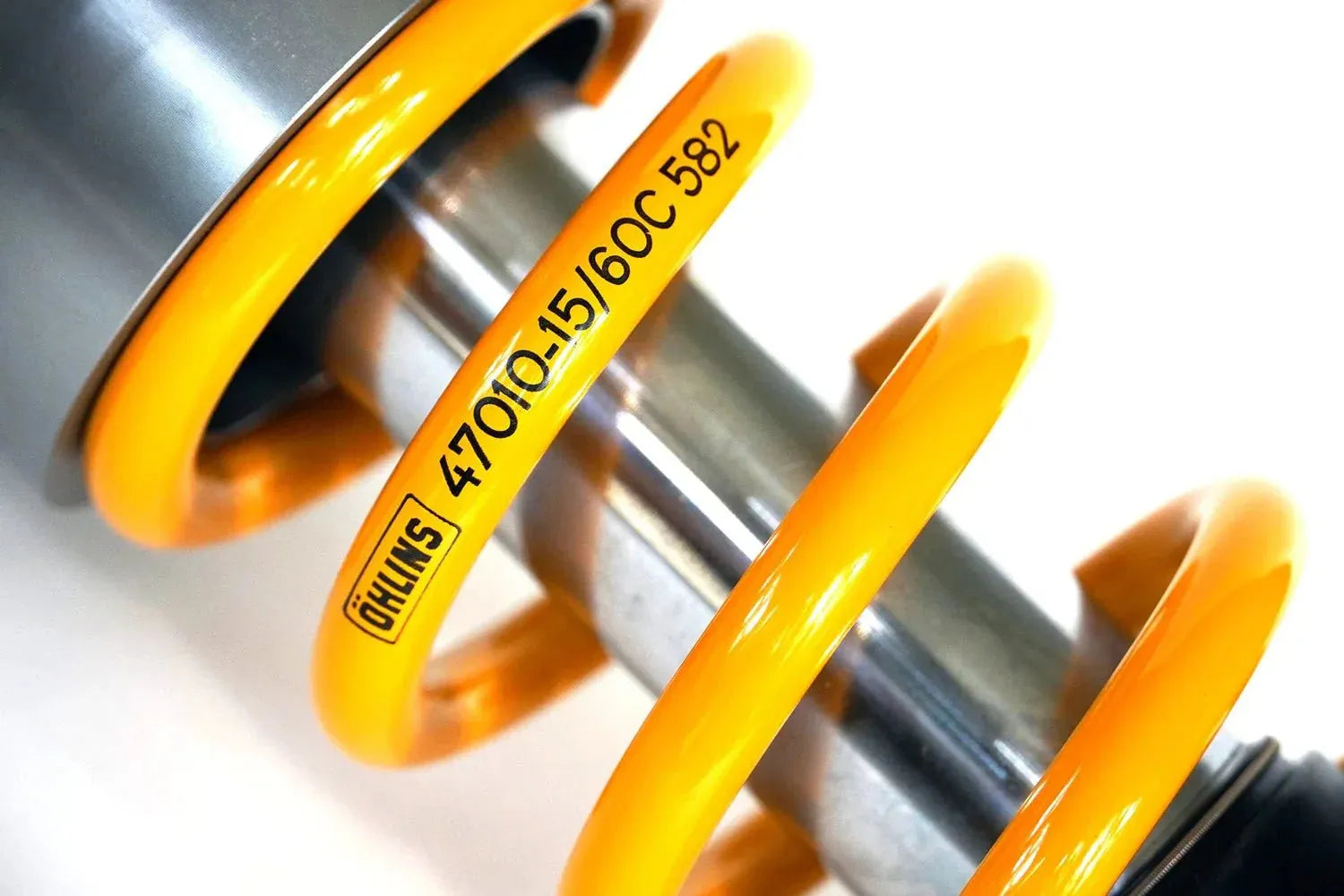

Both front and rear springs have a matched spring rate of 60 N/mm (approximately 343 lbs/in or 6 kg/mm), providing balanced handling characteristics and improved grip. The coilovers are designed to work with the vehicle’s original top mounts, ensuring a clean fitment without the need for additional modifications.
Installation & Fitment:
The Ohlins Road & Track Coilover System is a direct fit for 2022–2026 Toyota GR86 and Subaru BRZ models. Installation uses factory mounting points and original top mounts, allowing for a bolt-on upgrade without cutting, drilling, or special tuning requirements. The kit includes all necessary hardware and a comprehensive owners manual with mounting instructions to facilitate a smooth installation process.
What's Included:

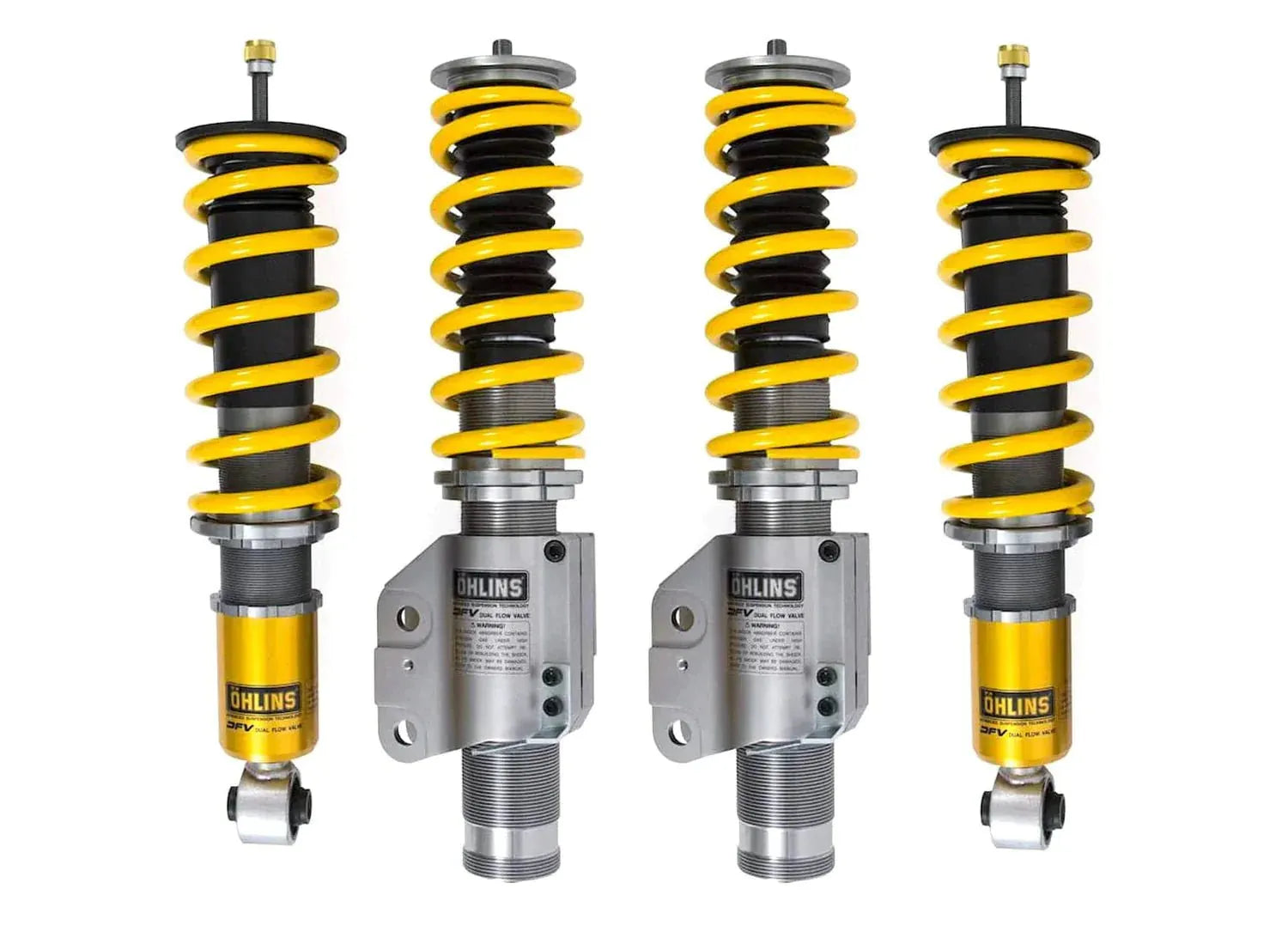

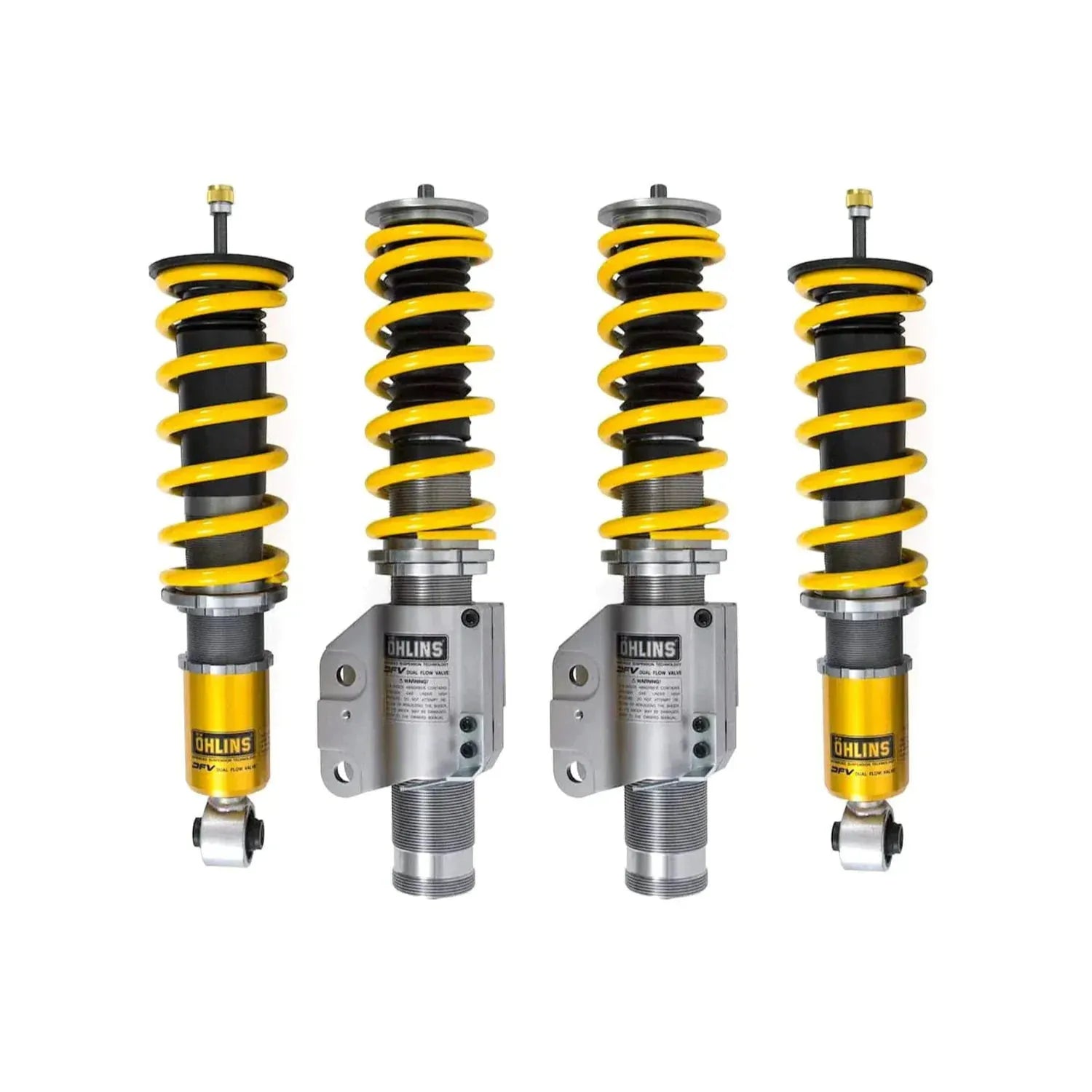

- Complete coilover kit with front and rear springs
- C-Spanner for spring preload adjustment
- Owners manual and detailed mounting instructions
- Sticker set
Ideal For:
- Sports car enthusiasts seeking improved handling and ride quality on both street and track
- Drivers who want adjustable suspension to tailor performance to different driving conditions
- Owners of Toyota GR86 and Subaru BRZ looking to maximize their vehicle’s dynamic potential
- Those who value durability and rebuildable suspension components for long-term use
