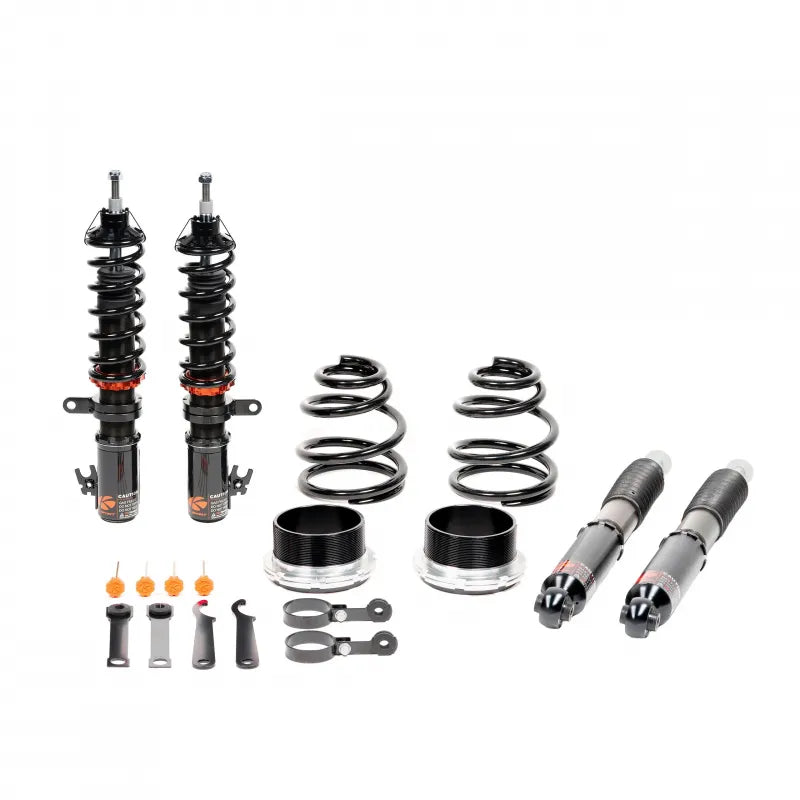

K SPORT KONTROL PRO DAMPER COILOVERS
08-14 Scion xD
CTY320-KP
Spring Rates(kg/mm)
Front: 6.7
Rear: 3.0
One of our top selling systems, the Ksport Kontrol Pro coilovers provide the ultimate in suspension technology for your vehicle both on the street and at the track. Featuring 36 levels of damping adjustment, Kontrol Pro allows you to perfectly dial in your system for both handling and comfort. In addition, the damping adjustment alters compression and rebound simultaneously for more effective and user-friendly setup changes. For those seeking a lowered stance as well as improved handling and response at a high value, the Ksport Kontrol Pro Coilover Kit is the perfect choice.
36 Way Adjustable Damping
Featuring 36 levels of damping adjustment Kontrol Pro Coilovers allow you to perfectly dial in your coilover system for both handling and comfort. In addition, the damping adjustment alters compression and rebound simultaneously for more effective and user-friendly setup changes.
Monotube High Pressure Design Reduces Oil Leakage
All Ksport Kontrol Pro Coilover systems utilize a Monotube design, with oil and gas separated within the cylinder. When compared to twin tube construction, the Monotube design dissipates heat faster and more evenly and allows for finer damping adjustments. Aeration and cavitation issues are a lot less common in a Monotube design, resulting in a more consistent ride quality.
Camber Adjustment on Many Models
For enthusiasts seeking the ultimate in adjustability, Ksport’s advanced upper pillow ball mount is available on many applications, giving the option for separate camber and caster adjustments. This allows you to easily dial in your camber for things such as vehicle alignment while also eliminating the need for a separate camber kit. *Note: Camber adjustment is not available on all models with pillowball upper mounts.
Adjustable Spring Perch for Height Adjustment
Most applications utilize an adjustable lower mount which means height adjustability without losing suspension travel. Users can easily achieve desired ride height without worrying about bottoming out the shock. For vehicles that have a separate rear shock and spring, or a “hi-low kit”, height adjustment is available via the spring perch and the lower mount of the shock. This allows vehicles with this type of set up to still go as low, if not lower, than true coilovers.
Pillowball Top Mount for Increased Steering Feel
On applicable applications, Pillowball top mounts in the front and rear allow you to install and setup to OEM specifications. Ksport’s patented upper pillowball mount offers the same level of adjustability and performance but allows for compliance that is often required from high-demand strut applications. In addition, our pillowball upper mounts combat noise, increase steering feel and response and on many applications, offer camber adjustment, eliminating the need for a separate camber kit.
Aerospace Quality Aluminum Components
Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components. Steel shock bodies are electroplated with Zinc to resist rust and protect from the elements. In addition, kits include an anti-rust paste packet that can be applied to key areas of the coilover for added protection.
Adjustable Lower Mount Allowing Maximum Suspension Travel
Most of our coilovers feature the ability to adjust your ride height without affecting the shock and spring travel. This way you can set your desired ride height without having to worry about bottoming out the shock.
Dust Boot to Protect Damper Seal
Dust boots are standard on all coilovers. We also integrate the bump stop inside the dust boot. This is more efficient and is less likely to crumble to pieces and deteriorate like other designs.
12 Month Limited Warranty
Kontrol Pro coilovers come standard with a 12-month warranty which covers manufacturer defects.
Easy Installation
The Ksport Kontrol Pro Coilover system has been carefully designed to ensure a hassle-free installation process. A specialized team of engineer’s test fitment, clearance, ride height and more to ensure the perfect application for your vehicle.
