HKS Oil Pan Bolt On Turbo Special

2013–2020 Scion FR-S, Subaru BRZ & Toyota 86

11999-AT001

Overview:

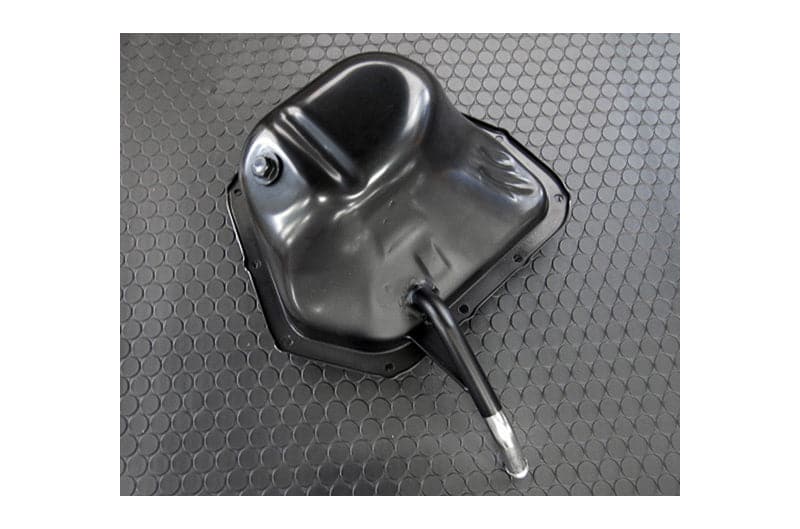

The HKS Oil Pan Bolt On Turbo Special is a precision-engineered oil pan designed specifically for bolt-on turbo applications on the Scion FR-S, Subaru BRZ, and Toyota 86 models from 2013 through 2020. This product replaces the stock oil pan with a turbo-ready design that simplifies installation and enhances reliability for turbocharged setups. Ideal for enthusiasts upgrading their naturally aspirated engines to forced induction, the HKS oil pan ensures proper oil return and durability under increased performance demands.

Developed with the GTIII-RS turbine in mind, this oil pan comes pre-fitted with an integrated oil return pipe, allowing for a straightforward bolt-on installation without the need for extensive modifications. Its robust construction and reinforced design help prevent oil leaks and maintain engine integrity during high-stress driving conditions.

Key Features:

The HKS Oil Pan Bolt On Turbo Special offers a range of features tailored to turbocharged applications, delivering both convenience and reliability:

• Direct replacement for the stock oil pan on 2013–2020 Scion FR-S, Subaru BRZ, and Toyota 86 models

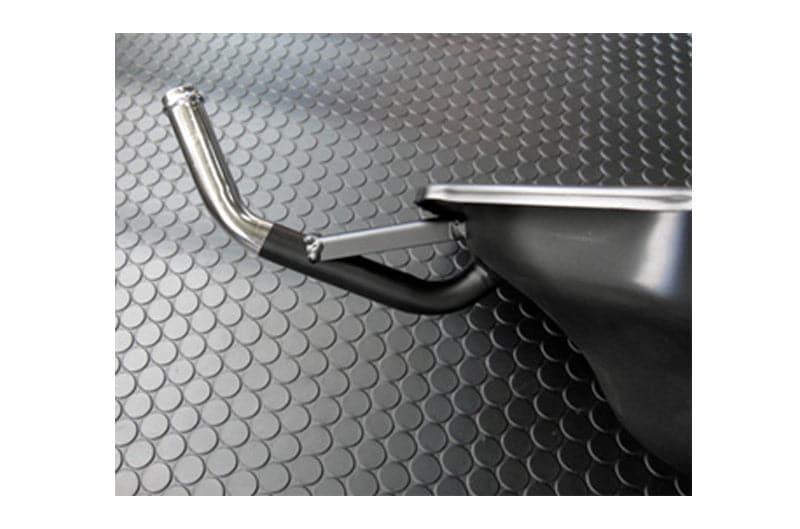

• Pre-fitted oil return pipe designed for seamless integration with the GTIII-RS turbine (part numbers 11001-AT005, 11001-KT001)
• Strong internal and external welds reinforce structural integrity to prevent leaks
• Additional mounting bracket enhances strength and stability under turbocharged conditions
• Durable coating applied to protect against corrosion and ensure long-term reliability
• Facilitates easy installation for bolt-on turbo setups without requiring custom fabrication
• Engineered to maintain optimal oil flow and pressure for turbocharged engines

Construction & Design:

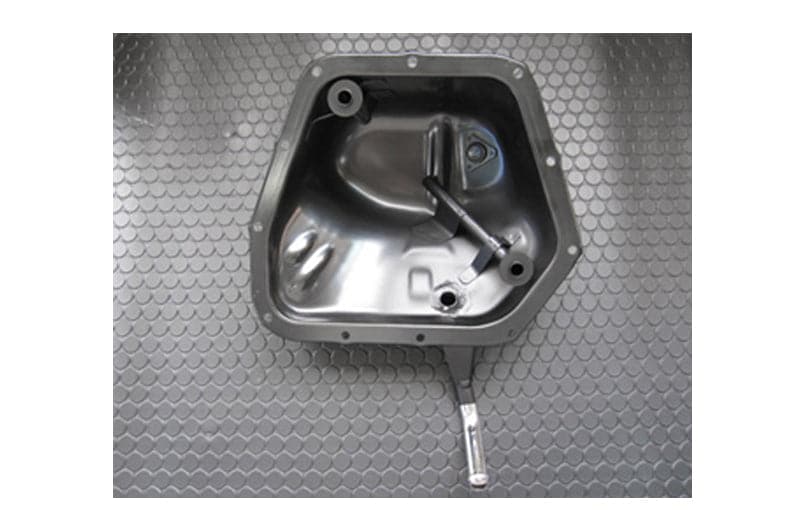

Crafted with precision welding both inside and outside the oil pan, the HKS Oil Pan Bolt On Turbo Special is built to withstand the increased stresses of turbocharged operation. The reinforced structure minimizes the risk of oil leaks, a common concern when modifying the oil system for forced induction. An additional bracket is incorporated to further strengthen the assembly, ensuring durability during spirited driving or track use.

The oil pan is carefully coated with a protective paint finish that guards against corrosion and wear, extending the lifespan of the component even under harsh environmental conditions. The integrated oil return pipe is engineered to optimize oil flow back to the pan, supporting consistent lubrication and cooling of the turbo system.

Installation & Fitment:

This oil pan is designed as a direct bolt-on replacement for the stock oil pan on the Scion FR-S, Subaru BRZ, and Toyota 86 models from 2013 to 2020. It is specifically made for bolt-on turbo applications, particularly compatible with the HKS GTIII-RS turbine kits. Installation is straightforward, requiring no custom modifications or additional fabrication, making it an ideal upgrade for enthusiasts seeking a reliable turbo setup.

As a make-to-order item, it is recommended to confirm compatibility with your specific turbo kit and vehicle year before purchase. Proper installation ensures optimal oil return and prevents leaks, contributing to the longevity and performance of your turbocharged engine.

What's Included:

• HKS Oil Pan with pre-fitted oil return pipe
• Additional mounting bracket for enhanced strength
• Protective coating applied for durability

Ideal For:

This oil pan is ideal for automotive enthusiasts and tuners who are upgrading their naturally aspirated Scion FR-S, Subaru BRZ, or Toyota 86 to a bolt-on turbocharged setup. It suits those looking for a reliable, factory-style oil pan replacement that supports turbo oil return without the hassle of custom fabrication. Perfect for street performance, track days, and any application where forced induction reliability is paramount.
