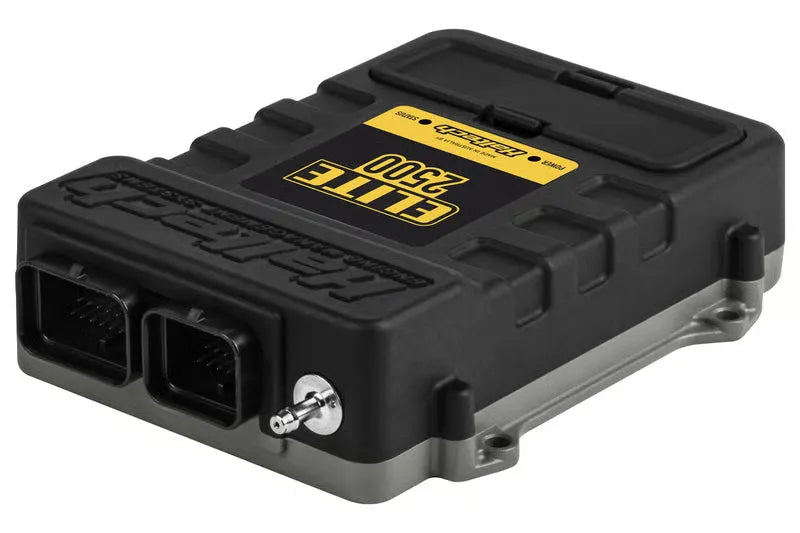

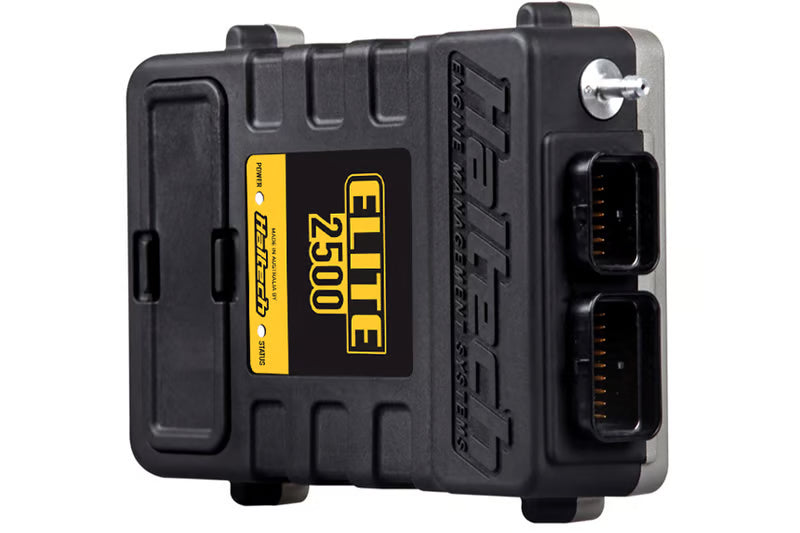

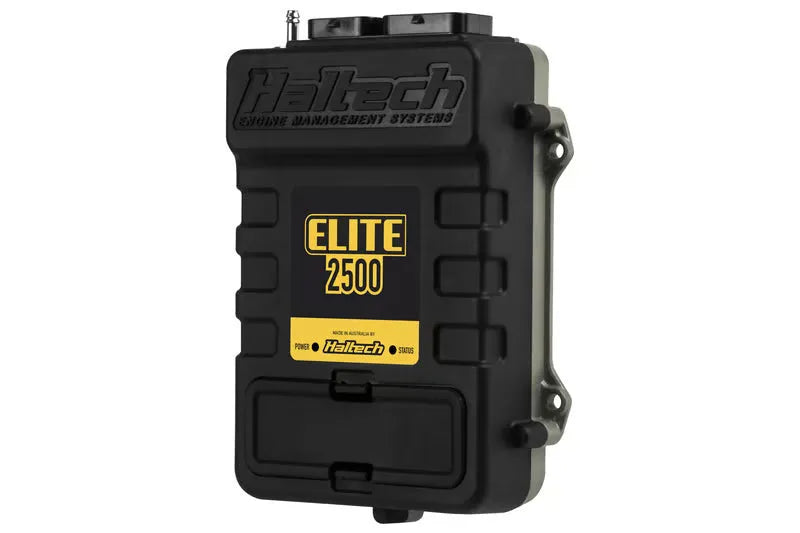

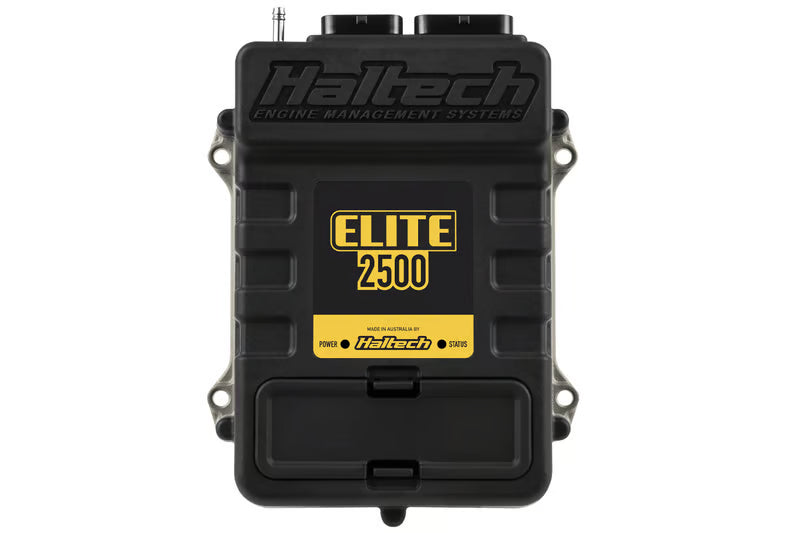

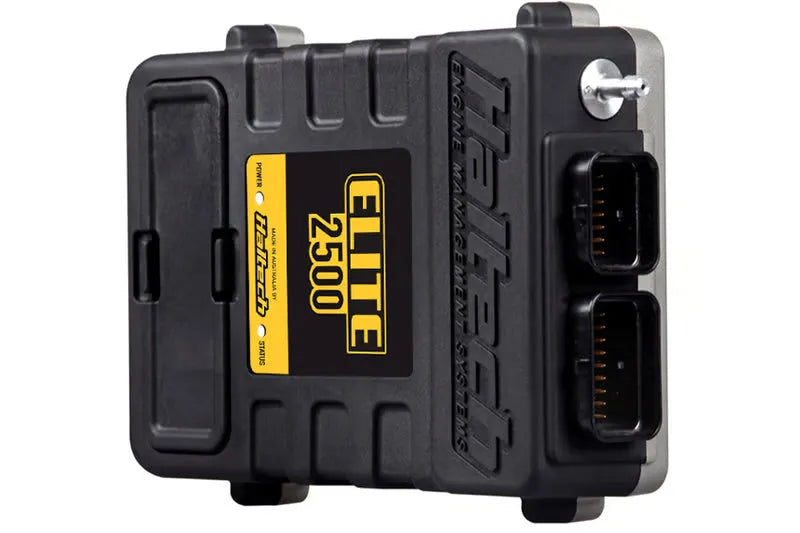

Haltech Elite 2500 Standalone ECU w/ Plug and Pin Set
Fits Most Models: Supports 1 to 12 Cylinder and 2 to 4 Rotor Engines
HT-151301
Overview:
The Haltech Elite 2500 is a versatile two-connector standalone engine control unit (ECU) designed for late model performance and racing applications. It is ideal for a wide range of engines including 4, 6, and 8 cylinder configurations, as well as 2, 3, and 4 rotor setups. Whether you are running a drive-by-wire throttle system, performing EFI conversions, or managing engines with multiple variable camshafts, the Elite 2500 provides the advanced control and flexibility you need.
Built for tuners and performance enthusiasts, this ECU offers robust features in a compact, environmentally sealed, and water-resistant IP67-rated case. Paired with the new Nexus Software Programmer (NSP), it delivers unprecedented user-friendliness and functionality for precise engine calibration and tuning.
Key Features:
The Elite 2500 ECU combines advanced technology with practical design to support a wide variety of engine setups and tuning requirements. Key features include:
- Supports 1 to 12 cylinder engines and 2 to 4 rotor engines, accommodating normally aspirated and forced induction configurations.
- Drive-by-wire throttle control with intake and exhaust camshaft control for enhanced engine management.
- Short-term and long-term map learning capabilities to optimize fuel and ignition maps based on real-world conditions.
- Dual channel knock control for precise detection and mitigation of engine knock.
- Load sensing via Throttle Position Sensor (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF) sensors.
- Flexible fuel injection patterns including staged, sequential, semi-sequential, batch, or multipoint injection.
- Ignition system compatibility with distributor ignition, multi-coil setups, expanded CDI range, and Haltech Multiplex CDI systems.
- Connectivity to a wide range of display dashboards and expansion devices through CAN bus communication.
- Robust waterproof case with pocket cover fitted, rated IP67 for protection against harsh environments.
- Extensive input/output options including 8 fuel injection outputs, 8 ignition outputs, 12 digital outputs, 10 analogue voltage inputs, and multiple dedicated inputs for knock sensors, ignition switch, and onboard MAP sensor.
- Up to 45 channels of input/output expansion available via CAN bus for future upgrades and customization.
- USB communication for laptop connection running Windows, enabling easy tuning with the new Nexus Software Programmer (NSP).
Construction & Design:
The Elite 2500 ECU is housed in a rugged, environmentally sealed enclosure rated IP67, ensuring water resistance and durability in demanding conditions. The two-connector design uses AMP 26 and 34 pin 4-row 3-key Superseal sets, providing secure and reliable connections. This robust construction protects the ECU from moisture, dust, and vibration, making it suitable for both street and race environments.
The compact form factor and high-quality connectors simplify installation and integration into a wide variety of engine bays and wiring harnesses. The inclusion of a pocket cover further safeguards the unit’s connectors when not in use.
Installation & Fitment:
The Haltech Elite 2500 ECU is designed to fit most performance and racing applications across a broad range of vehicles and engine types. It supports engines from single-cylinder setups up to 12 cylinders, as well as rotary engines with up to 4 rotors. This flexibility makes it suitable for many popular late model vehicles and custom EFI conversions.
Installation requires integration with your vehicle’s wiring harness using the supplied plug and pin sets. The ECU supports a wide variety of sensors and ignition systems, allowing it to replace factory ECUs or serve as a standalone controller in custom builds. Tuning and calibration are performed via USB connection using the included Nexus Software Programmer (NSP).
What's Included:

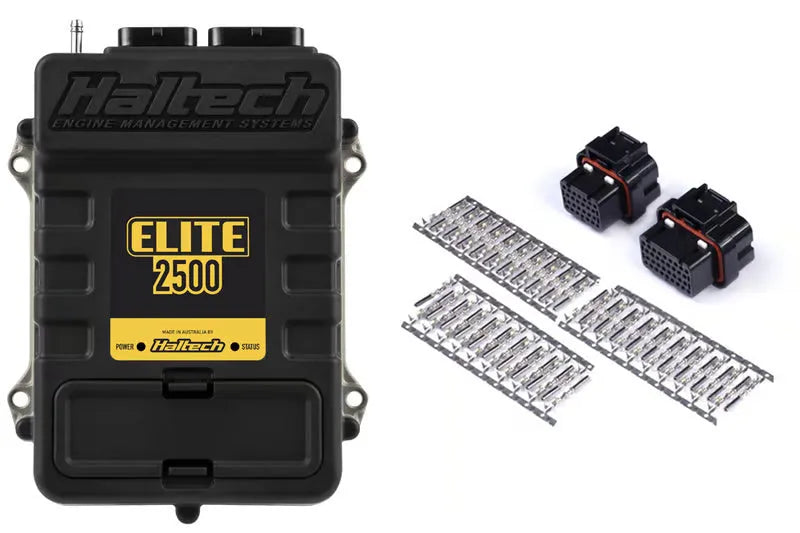

- Haltech Elite 2500 Standalone ECU unit with IP67-rated waterproof case
- Plug and pin set: AMP 26 & 34 pin 4-row 3-key Superseal connectors
- Quick Start Guide
- Specification sheet and wiring diagram
- Access to Nexus Software Programmer (NSP) for calibration and tuning
Ideal For:
- Performance enthusiasts and professional tuners seeking advanced engine control
- Racing applications requiring precise ignition and fuel management
- EFI conversions and custom engine builds with complex camshaft and throttle control needs
- Vehicles with drive-by-wire throttle systems or multiple variable camshafts
- Users needing a durable, water-resistant ECU for harsh environments
