Fuel Injector Clinic 1200cc Fuel Injectors: Toyota GR Supra 3.0L Turbo 2020 - 2024

Fuel Injector Clinic 1200cc Fuel Injectors: Toyota GR Supra 3.0L Turbo 2020 - 2024

Part # IS147-1200H

free ground shipping
$846.00
$1,015.20 $846.00
Sale Sold out
Shipping calculated at checkout.

  • FREE SHIPPING

    MOST orders over $250 ship free*

  • AUTHORIZED RETAILER

    100% Authorized Direct Retailer

  • LIVE INVENTORY

    Inventory updated throughout the day

  • 0% APR FINANCING

    Easy payment plans through Affirm and Shop Pay

View full details

Short Description

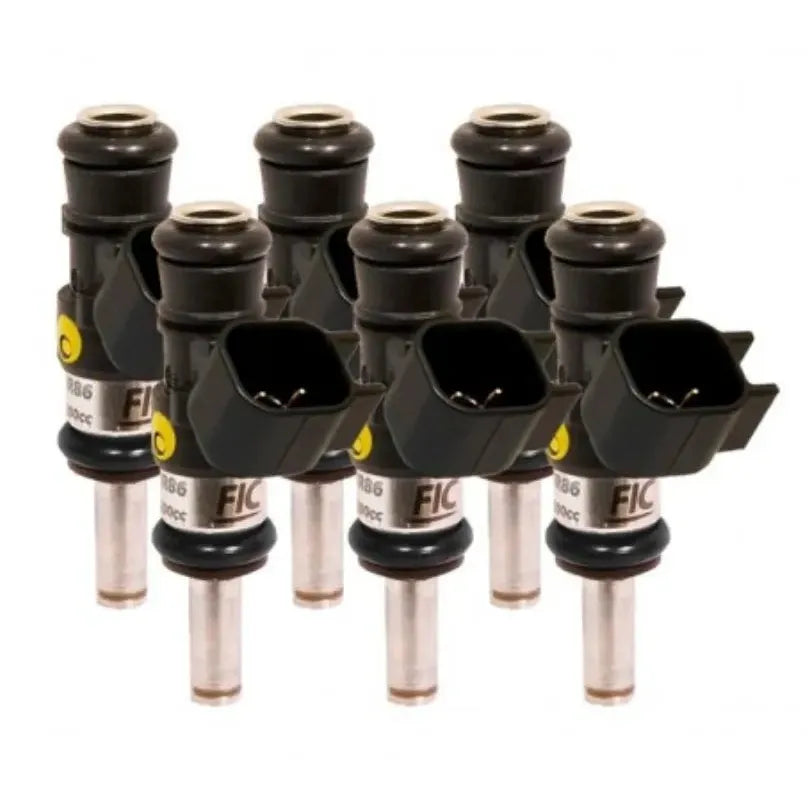

20-24 Toyota GR Supra 1200cc Fuel Injectors by Fuel Injector Clinic. IS147-1200H  Toyota Supra 5th Gen J29/DB Fuel Injector Clinic Injector Set to fit OEM Fuel Rail: 6x1200cc High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Includes pigtails PGT JET6.

Description

FUEL INJECTOR CLINIC 1200CC FUEL INJECTORS

20-24 Toyota GR Supra 3.0L Turbo

IS147-1200H

Toyota Supra 5th Gen J29/DB Fuel Injector Clinic Injector Set to fit OEM Fuel Rail: 6x1200cc High Impedance Ball & Seat Injectors. These injectors utilize the latest technology and provide great linearity and short pulse width repeatability. Includes pigtails PGT JET6.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90deg F fuel temperature using CF-16B calibration fluid.

Superior short pulse width control and state of the art matching make these injectors easy to tune and provide great drivability.

Please note that Fuel Injector Clinic injectors are specifically designed to work with aftermarket port injection plates and fuel rails for the listed vehicle. They come with all the necessary o-rings for installation. However, these injectors are not compatible with the stock direct injector fitment and should not be used as replacements for them.

Every injector is covered against failure caused by defects in original manufacture by our lifetime warranty.




Fitment Specifications
Bottom O-ring Outer Diameter 14mm
Cylinder Quantity 6
Height 38mm
Impedance High-Z
Top O-ring 14mm
Horsepower supported
Engine Aspiration turbocharged
Fuel Pressure 43.5
WHP on E85 at 43psi 90%DC NA 807.03
WHP on E85 at 43psi 90%DC Supercharged 733.67
WHP on E85 at 43psi 90%DC Turbo 672.53
WHP on E85 at 58psi 90%DC NA 932.12
WHP on E85 at 58psi 90%DC Supercharged 847.38
WHP on E85 at 58psi 90%DC Turbo 776.77
WHP on Gas at 43psi 90%DC NA 1049.14
WHP on Gas at 43psi 90%DC Supercharged 953.77
WHP on Gas at 43psi 90%DC Turbo 874.29
WHP on Gas at 58psi 90%DC NA 1211.76
WHP on Gas at 58psi 90%DC Supercharged 1101.60
WHP on Gas at 58psi 90%DC Turbo 1009.80

Shipping Information

Shipping: Free Shipping!

Applications & Details

Part #: IS147-1200H
Brand: Fuel Injector Clinic
Availability Remarks: SHIPS IN 24-48 HOURS
Condition: New
