Deatschwerks 1 Liter Motorsport Oil Catch Can

Deatschwerks 1 Liter Motorsport Oil Catch Can

8-05-OCC-1L

A must-have for proper venting of crankcase pressure in high performance and racing engines. Available in both small 0.5L size for ease of fitment and large 1.0L size that's mandated by most racing sanctioning bodies. Highly engineered internal baffling ensures full oil separation from the vented gasses. Additionally, a unique mounting bracket design allows for easy 360° clocking of the outlets, simplifying breather line routing.

THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION

Oil Catch Can

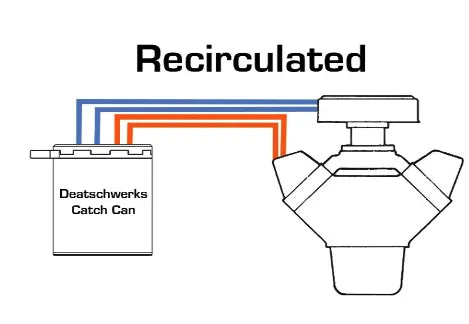

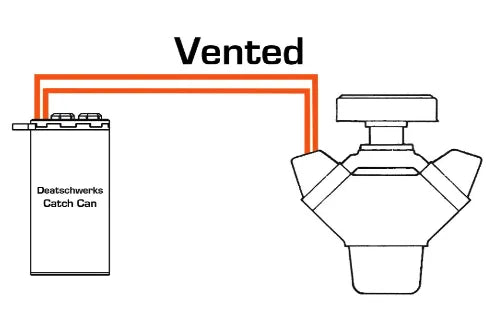

• Designed to be plumbed Vented or Recirculated

• Design incorporates a 360° clockable bracket

• Available in Half or One Liter capacities

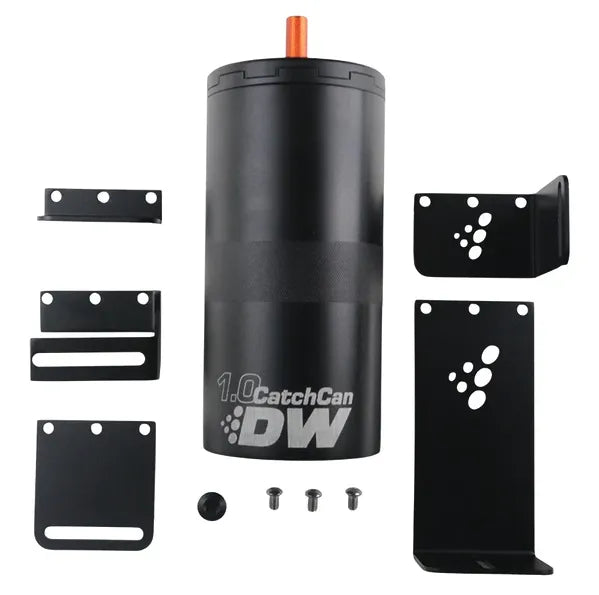

• Additional mounting brackets included

• Dipstick included for easy fluid level checking

• Integrated -6AN O-Ring Boss drain port

Specifications

• Weight (0.5L/1L) 23 / 31 oz ( 662 / 878 grams)

• External Materials Anodized 6061-T6 Aluminum

• Inlet Fitting -10AN O-Ring Boss x2

• Outlet Fitting -10AN O-Ring Boss x2

• Drain Fitting -6AN O-Ring Boss

• Baffling Stainless Mesh, and Baffled Plates

• Capacity 0.5 Liter (17 oz) or 1.0 Liter (34 oz)*

* 1 Liter capacity required for most motorsports applications.
