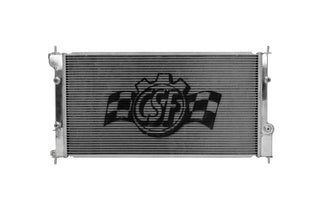

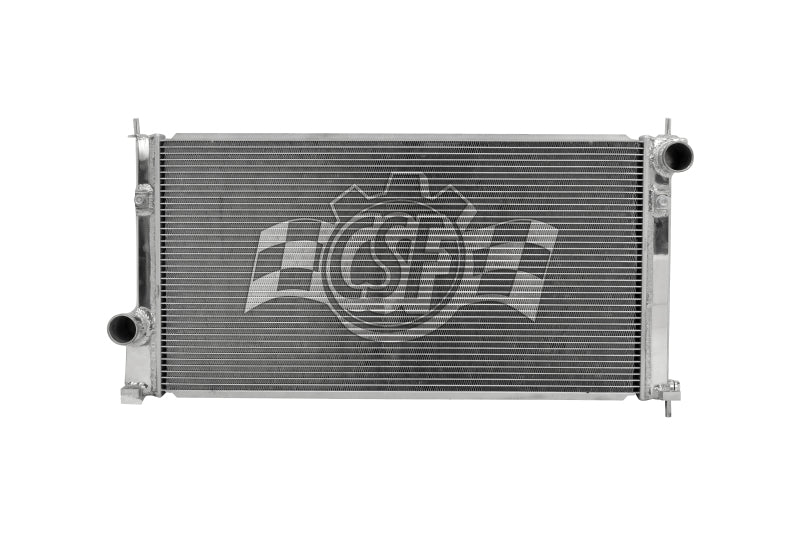

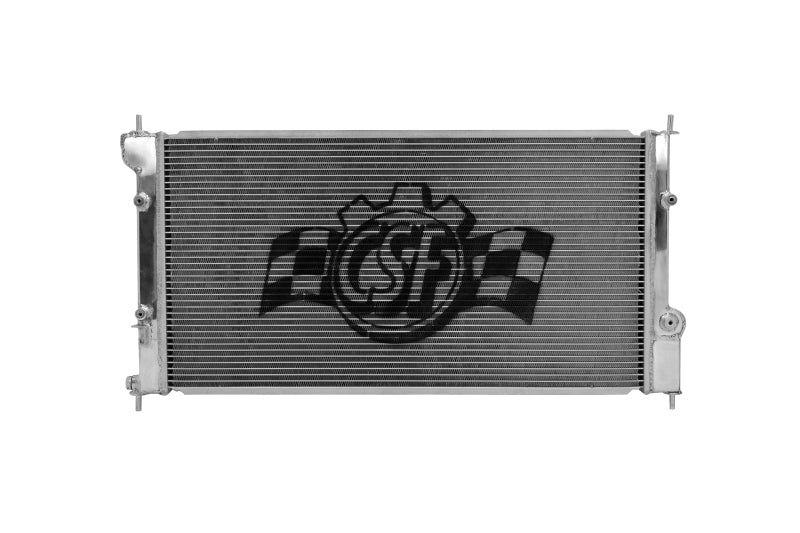

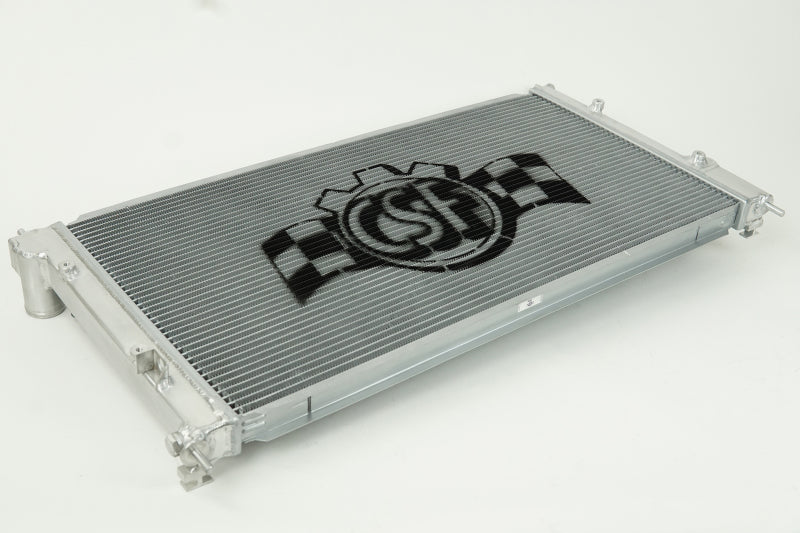

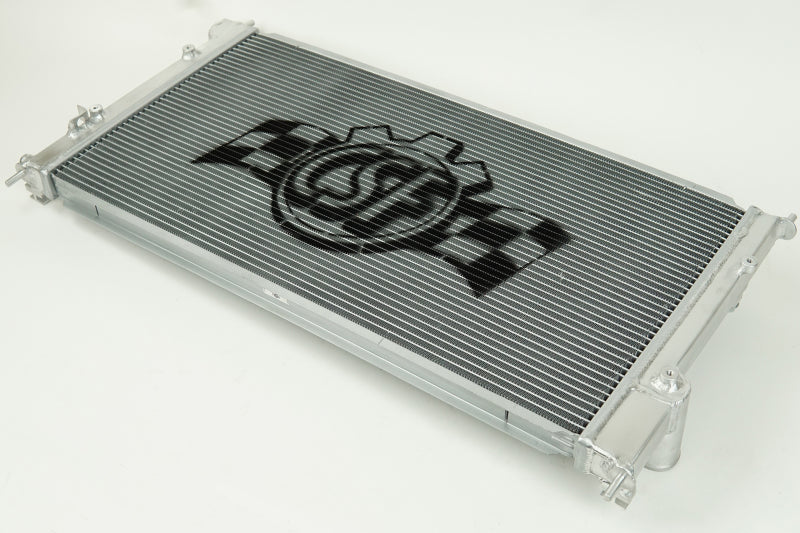

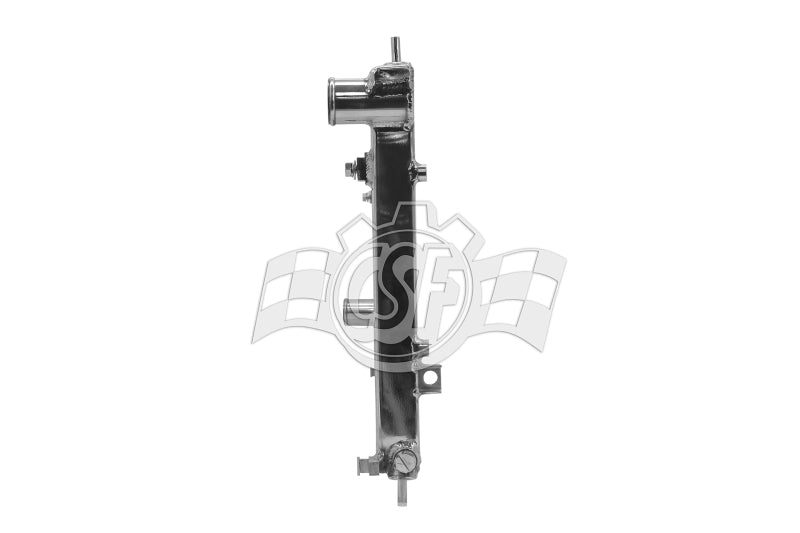

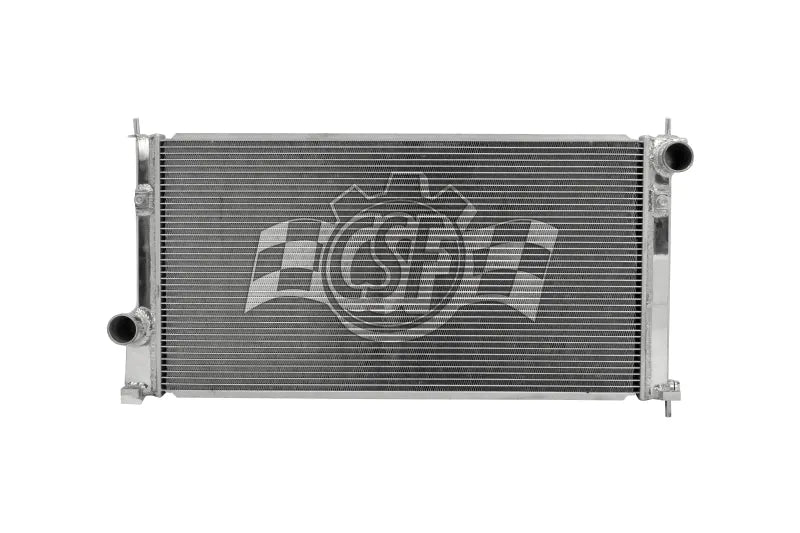

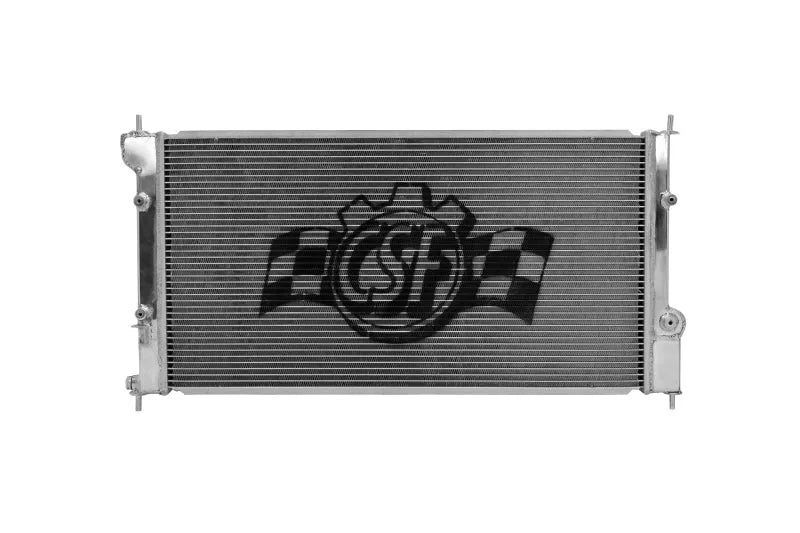

CSF Radiator: Scion FR-S (13-16), Toyota 86 (17-20), Toyota GR86 (22+) & Subaru BRZ (13-24)

CSF Radiator: Scion FR-S (13-16), Toyota 86 (17-20), Toyota GR86 (22+) & Subaru BRZ (13-24)

The CSF High-Performance All-Aluminum Radiator delivers superior cooling for Subaru BRZ (2013-2024), Toyota 86 (2017-2020), and Toyota GR86 (2022-2023). Engineered with exclusive B-Tube technology and multi-louvered fins, it maximizes heat dissipation and airflow to support enhanced performance on street and track. This drop-in fit radiator ensures reliable temperature control for high horsepower builds and motorsports applications.
Part # 7050

free ground shipping
$325.00
$349.00 $325.00
Sale Sold out
Shipping calculated at checkout.

28 in stock

  • FREE SHIPPING

    MOST orders over $250 ship free*

  • AUTHORIZED RETAILER

    100% Authorized Direct Retailer

  • LIVE INVENTORY

    Inventory updated throughout the day

  • 0% APR FINANCING

    Easy payment plans through Affirm and Shop Pay

View full details
The CSF High-Performance All-Aluminum Radiator delivers superior cooling for Subaru BRZ (2013-2024), Toyota 86 (2017-2020), and Toyota GR86 (2022-2023). Engineered with exclusive B-Tube technology and multi-louvered fins, it maximizes heat dissipation and airflow to support enhanced performance on street and track. This drop-in fit radiator ensures reliable temperature control for high horsepower builds and motorsports applications.

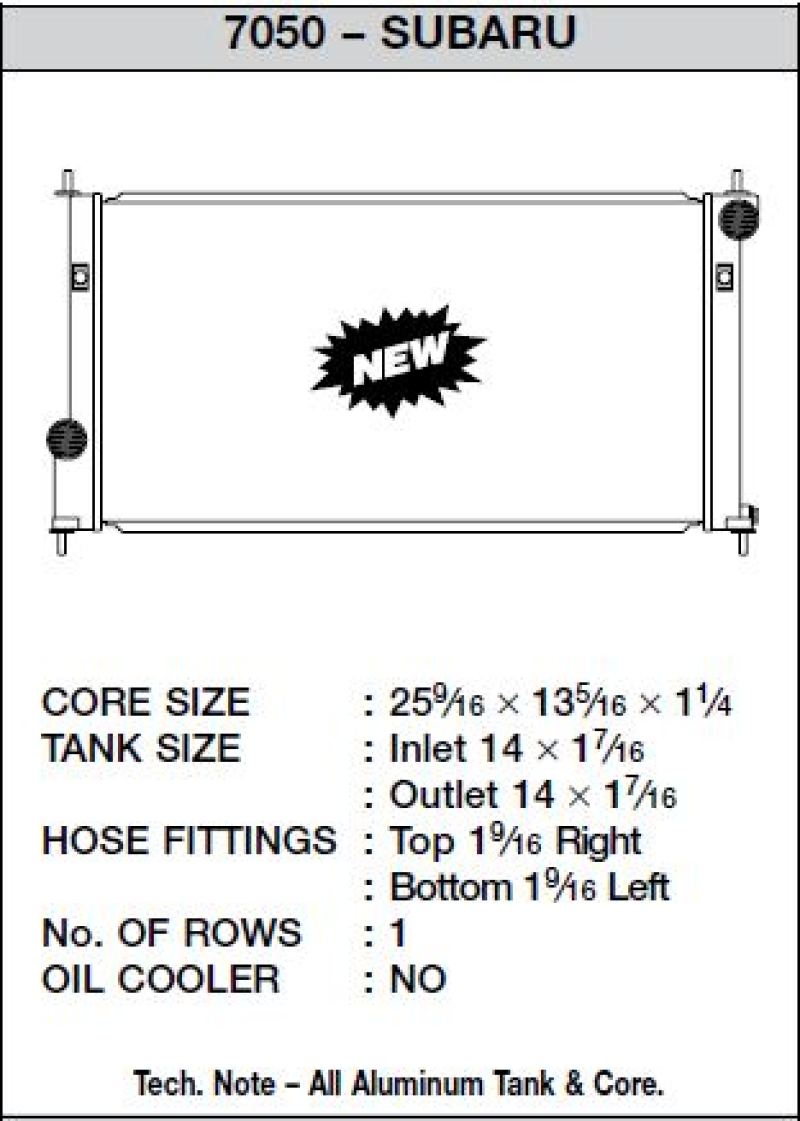

CSF Radiator

2013–2024 Subaru BRZ / 2017–2020 Toyota 86 / 2022–2023 Toyota GR86

7050

Overview:

The CSF Radiator is a high-performance cooling solution engineered specifically for the Subaru BRZ (2013–2024), Toyota 86 (2017–2020), and Toyota GR86 (2022+). With over five decades of radiator manufacturing expertise, CSF delivers a product designed to maintain optimal engine temperatures under demanding conditions. Whether you are driving on the street, pushing your vehicle on the track, or building a high-horsepower setup, this all-aluminum radiator ensures reliable cooling performance to protect your engine and maximize efficiency.

Built to handle the increased thermal loads of motorsports and spirited driving, the CSF radiator is an essential upgrade for enthusiasts seeking improved heat dissipation and durability. Its advanced design enhances cooling capacity without requiring modifications, making it a straightforward replacement for the factory radiator.

Key Features:

This radiator incorporates innovative technologies and precision engineering to deliver superior cooling performance:

  • 2-Row 42mm Core featuring CSF’s exclusive B-Tube Technology for enhanced heat transfer
  • B-Tube design increases heat transfer surface area by approximately 15% compared to traditional oval tubes
  • Dual liquid laminar flow within the tubes for improved coolant circulation and thermal efficiency
  • Ultra-efficient multi-louvered fins with a 6.5mm fin height, precisely aligned to maximize airflow
  • CNC machined brackets and fittings for a perfect fit and long-lasting durability
  • All-aluminum construction with a smooth satin finish for corrosion resistance and lightweight strength

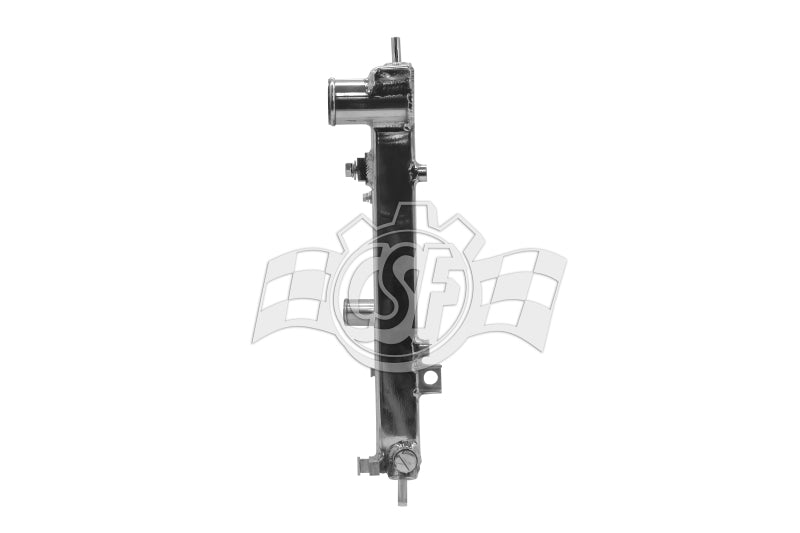

  • Quick-connect inlet and outlet connections compatible with OEM hoses and components
  • Race-style drain plug for easy coolant changes
  • Drop-in fit design requiring no modifications to install

Construction & Design:

The CSF radiator is crafted entirely from high-grade aluminum, chosen for its excellent thermal conductivity and lightweight properties. The core utilizes a unique B-Tube design, where tubes are shaped like a "B" rather than the conventional oval "O" shape. This innovative tube geometry is seam-brazed to create a stronger, thinner wall that improves heat transfer efficiency while reducing weight.

Each radiator features multi-louvered fins that are carefully engineered and tested in CSF’s wind tunnel lab to optimize airflow and maximize heat rejection. The CNC-machined brackets and fittings ensure precise alignment and secure mounting, maintaining OEM compatibility and durability under high-stress conditions.

Installation & Fitment:

The CSF radiator is designed as a direct replacement for the factory radiator in Subaru BRZ models from 2013 through 2024, Toyota 86 models from 2017 to 2020, and Toyota GR86 models from 2022 onward. It installs in the original equipment manufacturer (OEM) location without requiring any modifications. All OEM components such as quick-connect hoses, AC condenser, mounting brackets, and fan shroud are fully compatible.

Installation is straightforward for those familiar with radiator replacement procedures. However, CSF recommends professional installation if you are not confident in performing the swap yourself. Refer to the vehicle’s repair manual for detailed instructions.

What's Included:

  • CSF High-Performance All-Aluminum Radiator (Part #7050)
  • Race-style drain plug installed
  • Pre-installed CNC machined brackets and fittings
  • Quick-connect inlet and outlet connections
  • Installation instructions (if applicable)

Ideal For:

This radiator is ideal for automotive enthusiasts and racers who demand superior cooling performance from their Subaru BRZ, Toyota 86, or Toyota GR86. It suits high-horsepower builds, track day vehicles, and anyone seeking enhanced engine reliability and temperature control under aggressive driving conditions. The drop-in fitment also makes it a practical upgrade for daily drivers wanting improved cooling without hassle.

free ground shipping
Part #: 7050
Brand: CSF
