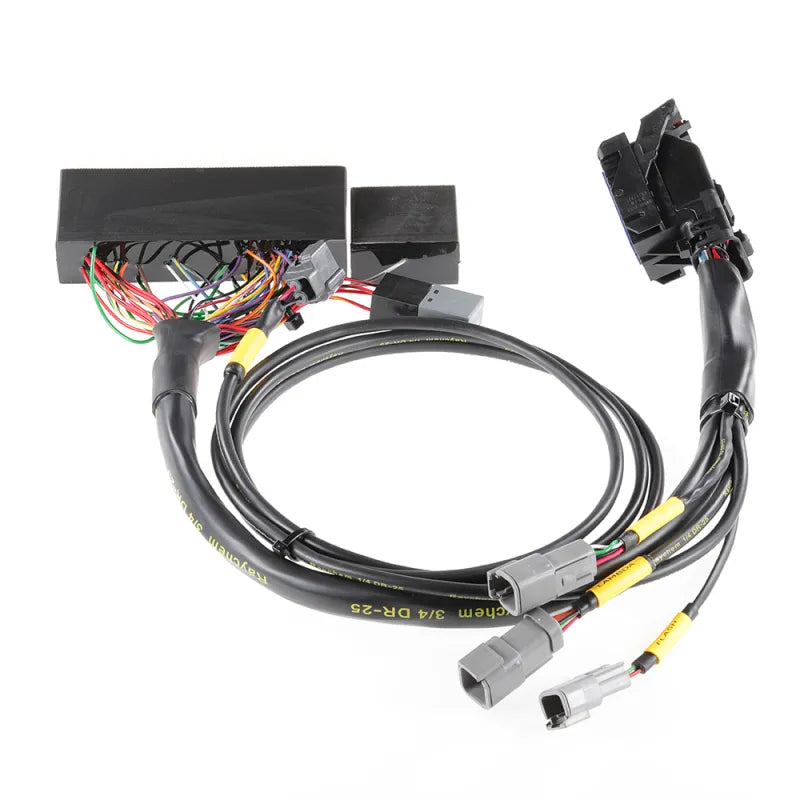

Boomslang Plug N Play Harness

2008–2015 Scion xB2 (Manual Transmission)

BF21049-506

Overview:

The Boomslang AEM Infinity 506 Plug N Play Harness is a precision-engineered wiring solution designed specifically for the 2008 to 2015 Scion xB2 equipped with a manual transmission. This harness enables seamless integration of the AEM Infinity 506 Engine Management System, providing full engine control capabilities without the complexity of custom wiring. It is the only true plug-and-play option available for this vehicle and ECU combination, making it an essential upgrade for enthusiasts seeking reliable and efficient engine management.

Ideal for tuners and performance builders, this harness simplifies installation, reduces wiring errors, and preserves the integrity of the factory wiring harness. It supports advanced engine control features while maintaining compatibility with OEM systems where necessary.

Key Features:

Designed to deliver a hassle-free installation and robust performance, the Boomslang Plug N Play Harness offers the following key features:

• Complete plug-and-play compatibility with AEM Infinity 506 Engine Management System
• Specifically built for 2008–2015 Scion xB2 models with manual transmission
• Supports full engine control, including ignition, fuel, and sensor inputs
• Includes integrated connectors for AEM Net, AEM UEGO wideband oxygen sensors, and AEM Flash Enable
• Preserves factory wiring harness, reducing installation time and cost
• Compatible with aftermarket crank and cam angle sensors if factory patterns are unsupported
• Allows factory ECU to remain in parallel for OEM CAN bus communication or automatic transmission control (manual transmission models only)
• High-quality connectors and wiring for durability and reliable signal transmission
• Free shipping and built to order with a 3-5 business day lead time

Construction & Design:

The Boomslang harness is crafted with premium automotive-grade wiring and connectors engineered to withstand the demanding environment of the engine bay. Each harness is meticulously assembled to ensure precise fitment and reliable electrical connections. The design focuses on durability and ease of use, featuring robust insulation and secure locking connectors to prevent accidental disconnections during operation.

Its modular design integrates seamlessly with the AEM Infinity 506 ECU, minimizing the need for splicing or cutting factory wires. This approach not only protects the vehicle’s original wiring but also facilitates easy removal or upgrades in the future.

Installation & Fitment:

Installation is straightforward and designed for enthusiasts and professional tuners alike. The harness plugs directly into the factory wiring connectors and the AEM Infinity 506 ECU, eliminating the need for complex wiring or soldering. It is compatible exclusively with manual transmission Scion xB2 models from 2008 through 2015.

Some vehicles may require an aftermarket crank or cam angle sensor disc if the factory sensor pattern is not supported by AEM. This harness supports such upgrades without additional wiring modifications. The factory ECU can remain connected in parallel to maintain OEM CAN bus communication or automatic transmission control, although this harness is intended for manual transmission applications only.

What's Included:

• Boomslang Plug N Play Harness for AEM Infinity 506
• Integrated connectors for AEM Net, UEGO wideband sensor, and Flash Enable
• Detailed installation instructions

Ideal For:

This harness is perfect for Scion xB2 owners and tuners who want to upgrade to the AEM Infinity 506 Engine Management System with minimal hassle. It is especially suited for those focused on performance tuning, engine swaps, or custom engine management setups requiring a reliable and clean wiring solution. Its plug-and-play design saves time and reduces the risk of wiring errors, making it a valuable component for both professional shops and DIY enthusiasts.

Legal / Emissions Note

Warning: This product is intended for use on vehicles in sanctioned competition only and may not be legal for use on public roads or highways unless specifically exempted by regulatory authorities. It is the responsibility of the installer and user to ensure compliance with all applicable laws and regulations. This product may expose you to chemicals known to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
