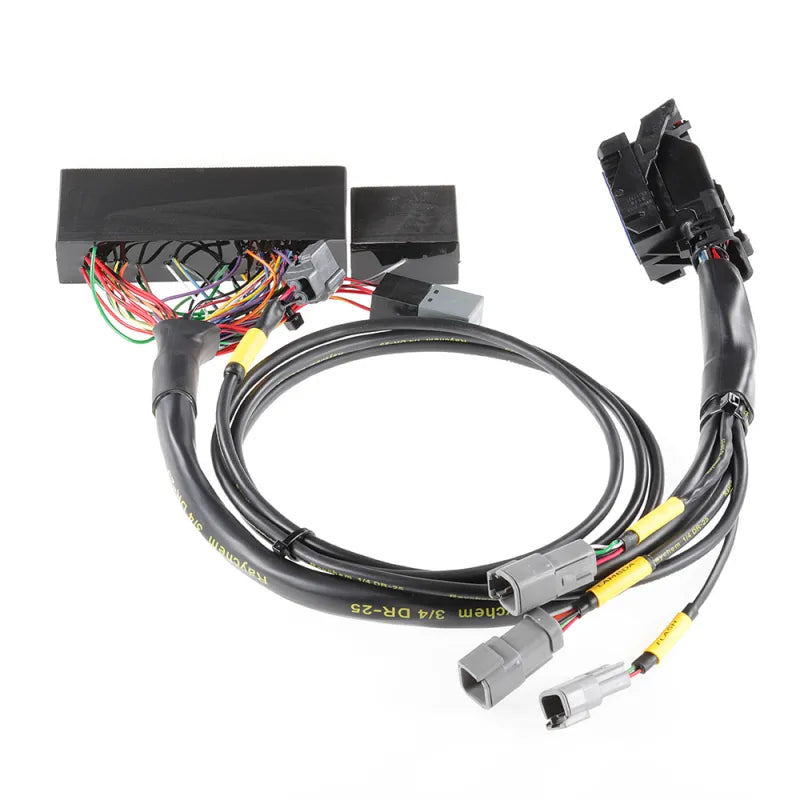

Boomslang Plug N Play Harness

2007–2010 Scion tC Manual Transmission

BF21045-506

Overview:

The Boomslang AEM Infinity 506 Plug N Play Harness is a precision-engineered wiring solution designed specifically for the 2007–2010 Scion tC equipped with a manual transmission. This harness enables seamless integration of the AEM Infinity 506 Engine Management System, providing full engine control capabilities without the need for complex wiring modifications. Ideal for enthusiasts and tuners seeking a reliable, time-saving installation, this harness preserves the factory wiring harness while delivering a clean, professional setup.

Built to simplify the upgrade process, the Boomslang harness is the only true plug-and-play option for Scion tC owners running the AEM Infinity 506, ensuring compatibility and ease of use. It supports advanced engine management features and is designed to work in conjunction with the factory ECU where necessary, maintaining essential vehicle communication protocols.

Key Features:

This harness offers a range of features tailored to maximize the performance and functionality of your AEM Infinity 506 system:

• Complete plug-and-play design for quick and hassle-free installation
• Specifically engineered for 2007–2010 Scion tC manual transmission models
• Preserves the factory wiring harness, reducing risk of damage and simplifying uninstallation
• Includes connectors for AEM Net, AEM UEGO wideband O2 sensor, and AEM Flash Enable
• Supports parallel operation with the factory ECU for OEM CAN bus communication
• Compatible with aftermarket crank and cam angle sensors if factory patterns are unsupported
• Reduces hard-wiring costs and installation time significantly
• High-quality connectors and wiring for reliable, long-term performance

Construction & Design:

The Boomslang harness is crafted using premium automotive-grade wiring and connectors to ensure durability and resistance to heat, vibration, and environmental factors commonly encountered in engine bays. Each harness is built to order with meticulous attention to detail, guaranteeing precise fitment and reliable electrical connections. The design prioritizes ease of installation while maintaining OEM-level quality and robustness.

Engineered to integrate seamlessly with the AEM Infinity 506 system, the harness features dedicated wiring paths for critical sensors and control modules, minimizing electrical noise and ensuring accurate signal transmission. The modular design also allows for straightforward removal or upgrades without compromising the vehicle’s original wiring integrity.

Installation & Fitment:

Installation is straightforward and requires no cutting or splicing of the factory wiring harness. The Boomslang harness plugs directly into the vehicle’s existing connectors and the AEM Infinity 506 ECU, making it an ideal solution for both professional tuners and experienced enthusiasts. While the harness is designed for manual transmission Scion tC models from 2007 to 2010, some vehicles may require aftermarket crank or cam angle sensors if the factory patterns are not supported by AEM.

Because the factory ECU can remain connected in parallel, essential vehicle functions and communication on the OEM CAN bus are preserved, ensuring compatibility with other vehicle systems. This harness is built to order and ships within 3-5 business days, ready to deliver a clean and efficient engine management upgrade.

What's Included:

• Boomslang Plug N Play Harness for AEM Infinity 506
• Connectors for AEM Net, UEGO wideband sensor, and Flash Enable
• Detailed installation instructions

Ideal For:

This harness is perfect for Scion tC owners and tuners who want to upgrade to the AEM Infinity 506 Engine Management System without the hassle of custom wiring. It suits those seeking a reliable, plug-and-play solution that maintains factory wiring integrity and supports advanced engine control features. Whether for street performance builds or sanctioned competition vehicles, this harness delivers a professional-grade installation experience.

Emissions Note

Warning: This product may cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Note: Boomslang Fabrication LLC products are intended for use on vehicles in sanctioned competition and may not be legal for use on public roads or highways unless specifically exempted by regulatory authorities. It is the responsibility of the installer and user to ensure compliance with all applicable laws and regulations.
