Boomslang AEM Infinity 506 Plug N Play Harness: Scion tC 2005 - 2006

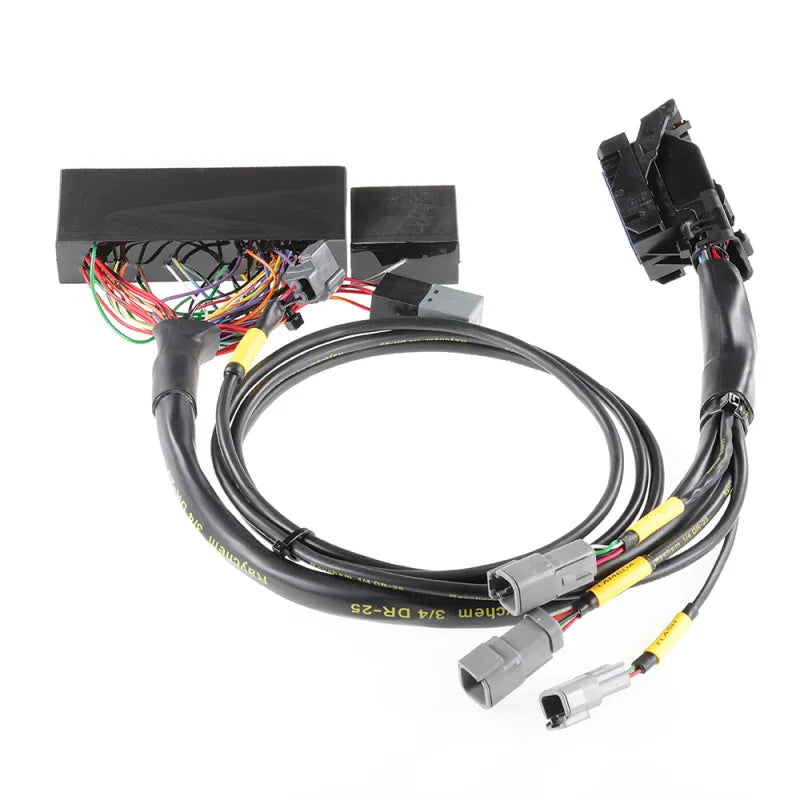

Boomslang Plug N Play Harness

2005–2006 Scion tC Manual Transmission

BF21044-506

Overview:

The Boomslang AEM Infinity 506 Plug N Play Harness is a precision-engineered wiring solution designed specifically for 2005 to 2006 Scion tC models equipped with manual transmissions. This harness enables seamless integration of the AEM Infinity 506 Engine Management System, providing full engine control and simplifying the installation process. Ideal for enthusiasts and tuners seeking a reliable and efficient way to upgrade their vehicle’s engine management without the hassle of complex wiring modifications.

By utilizing this harness, users can avoid costly and time-consuming hard-wiring, preserving the integrity of the factory wiring harness while ensuring a clean, professional installation. The Boomslang harness is the only true plug-and-play option for the AEM Infinity 506 on these Scion tC models, making it the go-to choice for performance upgrades.

Key Features:

This harness is engineered to deliver a straightforward and reliable connection between the AEM Infinity 506 ECU and the vehicle’s existing wiring system. Key features include:

• Complete plug-and-play compatibility with 2005–2006 Scion tC manual transmission models
• Supports full engine control capabilities of the AEM Infinity 506 Engine Management System
• Includes integrated connectors for AEM Net, AEM UEGO wideband O2 sensor, and AEM Flash Enable
• Preserves the factory wiring harness, reducing risk of damage and simplifying future maintenance
• Compatible with aftermarket crank and cam angle sensors if factory patterns are unsupported
• Designed for easy installation and removal, saving time and labor costs
• Supports parallel operation of the factory ECU for OEM CAN bus communication or automatic transmission control if applicable
• Manufactured by Boomslang Fabrication, known for high-quality wiring solutions

Construction & Design:

The Boomslang harness is built using high-quality automotive-grade wiring and connectors engineered to withstand the demanding environment under the hood. Each connection is carefully designed to ensure secure, corrosion-resistant contacts that maintain signal integrity and reliability over time. The harness is custom-built to match the exact pinouts and wiring layout of the 2005–2006 Scion tC, ensuring a perfect fit and eliminating guesswork during installation.

Attention to detail in the design process ensures that the harness integrates seamlessly with the AEM Infinity 506 ECU, providing a robust and durable solution that supports advanced engine management functions without compromise.

Installation & Fitment:

Installation is straightforward and requires no cutting or splicing of the factory wiring harness. The Boomslang harness plugs directly into the vehicle’s existing connectors and the AEM Infinity 506 ECU, making it accessible to both professional tuners and knowledgeable enthusiasts. This plug-and-play design significantly reduces installation time and minimizes the potential for wiring errors.

Note that this harness is intended for manual transmission Scion tC models from 2005 to 2006. Some vehicles may require an aftermarket crank or cam angle sensor disc if the factory sensor pattern is not supported by the AEM Infinity system. Always verify compatibility before installation.

What's Included:

• Boomslang Plug N Play Harness for AEM Infinity 506
• Integrated connectors for AEM Net, UEGO wideband sensor, and Flash Enable
• Detailed installation instructions

Ideal For:

This harness is perfect for Scion tC owners and performance enthusiasts who have installed or plan to install the AEM Infinity 506 Engine Management System. It is especially suited for those seeking a clean, reliable, and efficient wiring solution that preserves the factory harness and simplifies ECU integration. Tuners looking to maximize engine control capabilities while minimizing installation complexity will find this harness indispensable.

Emissions Note

Warning: This product may cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Legal Restrictions: Boomslang Fabrication LLC products are intended for use on vehicles in sanctioned competition only and may not be used on public roads or highways unless specifically permitted by regulatory exemption. It is the responsibility of the installer and user to ensure compliance with all applicable laws and regulations.
