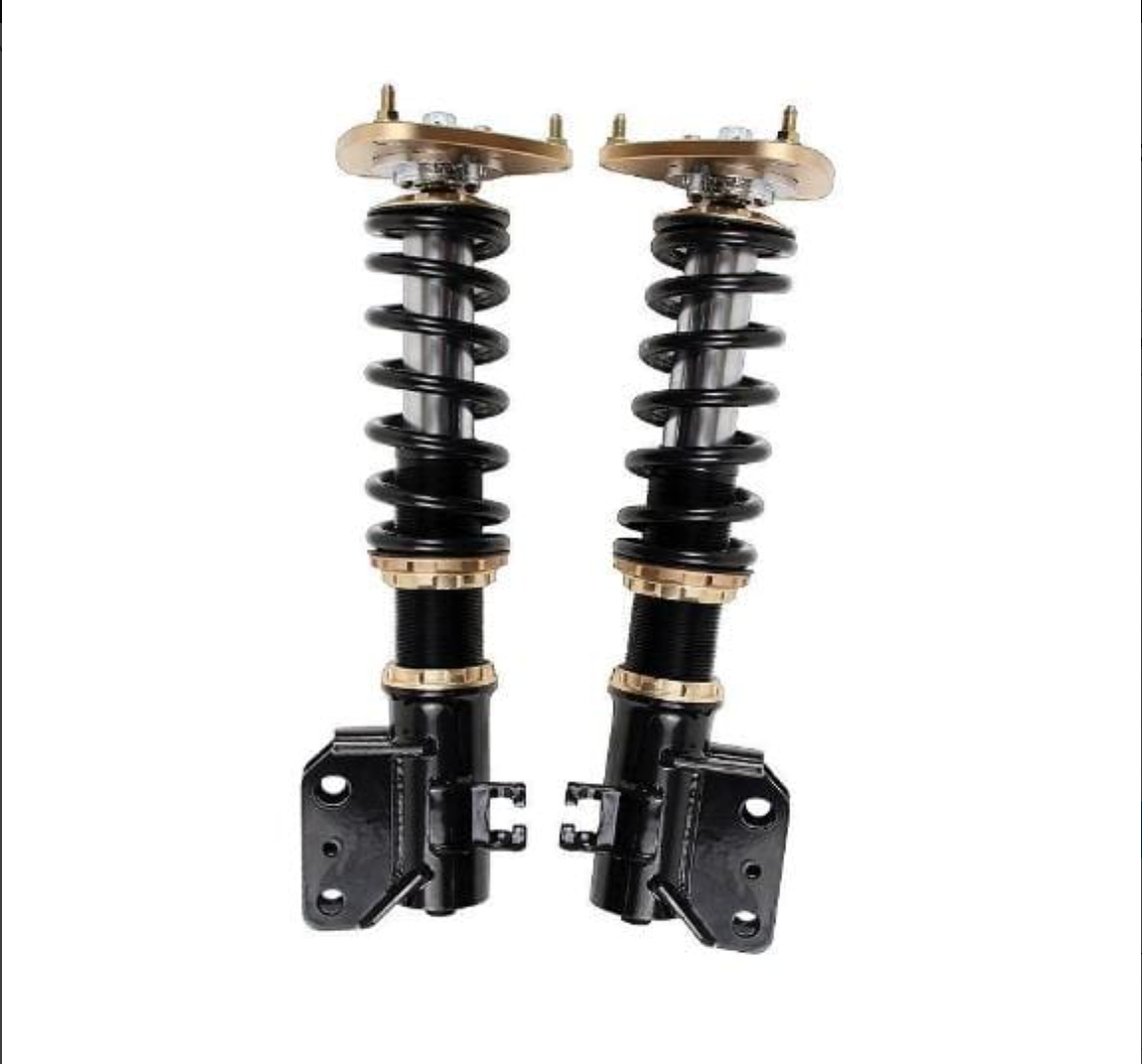

BC Racing RM Coilovers: Scion tC 2005 - 2010

BC Racing RM Coilovers: Scion tC 2005 - 2010

U-01-RM BC Racing RM Type Coilovers 05-10 Scion tC. BC Racings inverted RAM Type model includes all of the great features from the BR Type model, and then takes everything a notch higher By using an inverted coilover system.
Part # U-01-RM

free ground shipping
$1,495.00
$1,644.50 $1,495.00
Sale Sold out
Shipping calculated at checkout.

  • FREE SHIPPING

    MOST orders over $250 ship free*

  • AUTHORIZED RETAILER

    100% Authorized Direct Retailer

  • LIVE INVENTORY

    Inventory updated throughout the day

  • 0% APR FINANCING

    Easy payment plans through Affirm and Shop Pay

View full details
U-01-RM BC Racing RM Type Coilovers 05-10 Scion tC. BC Racings inverted RAM Type model includes all of the great features from the BR Type model, and then takes everything a notch higher By using an inverted coilover system.

BC RACING RM TYPE COILOVERS

05-10 Scion tC

U-01-RM

BC Racing RM Series Coilovers for the 2005-2010 Scion tC (ANT10) use a mono-tube inverted damper in the front and rear of vehicles that use McPherson style OEM strut suspension. On vehicles that use front struts only, BC Racing provides an inverted front strut and then provides an upright BR Series damper for the rear. Inverted dampers are useful in decreasing unsprung weight by moving the greatest mass of the strut to the top where it connects to the sprung weight of the chassis, where weight can be more easily shaved.

The BC Racing RM Series Coilover System uses a much larger inverted piston shaft that can handle higher lateral loads for longer periods of time without fatigue. These higher lateral loads are only prevalent on McPherson style strut suspension, not on Double A-Arm vehicles.

Features

  • Highly customizable
  • Inverted mono-tube damper
  • Linear piston and damping curve
  • Height adjustment independent of spring compression
  • 30-clicks of simultaneous compression/rebound adjustment
  • Front camber plates standard on applicable kits
  • Rear camber plates available for applicable kits
  • Custom spring rates and Swift Springs compatible
  • Custom valving or valving paired for custom spring rates
  • 2 year warranty against manufacturing defects
  • Fully rebuildable with replacement parts

Specifications

  • Part Number U-01-RM
  • Part Name RM Series Coilovers
  • Vehicle 2005-2010 Scion tC
  • Chassis Code ANT10
  • Front Springs (kg/mm) 62-170-7kg
  • Rear Springs (kg/mm) 62-150-10kg-S
  • Front Swift Springs (kg/mm) 62-178-X
  • Rear Swift Springs (kg/mm) 62-152-X
  • Front Camber Plates Included
  • Rear Camber Plates Not Applicable
free ground shipping
Part #: U-01-RM
Brand: BC Racing
