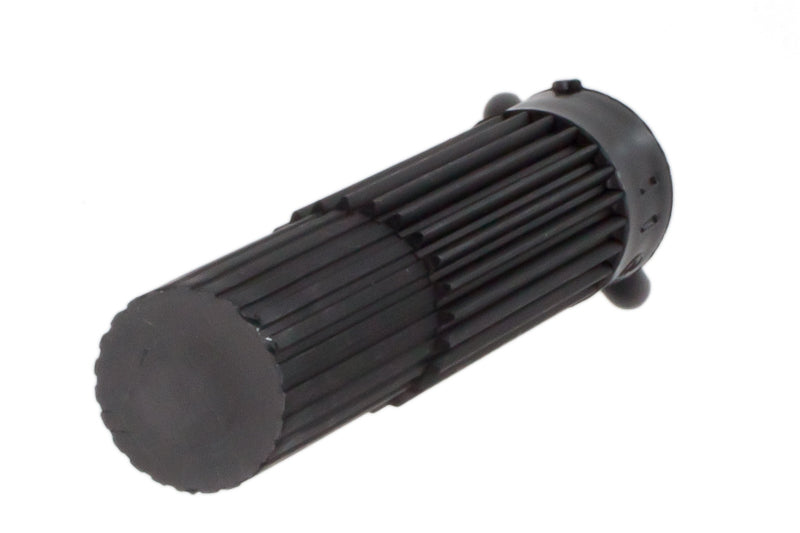

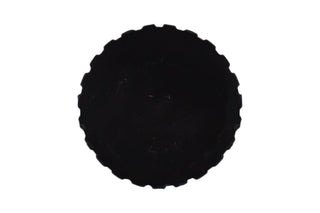

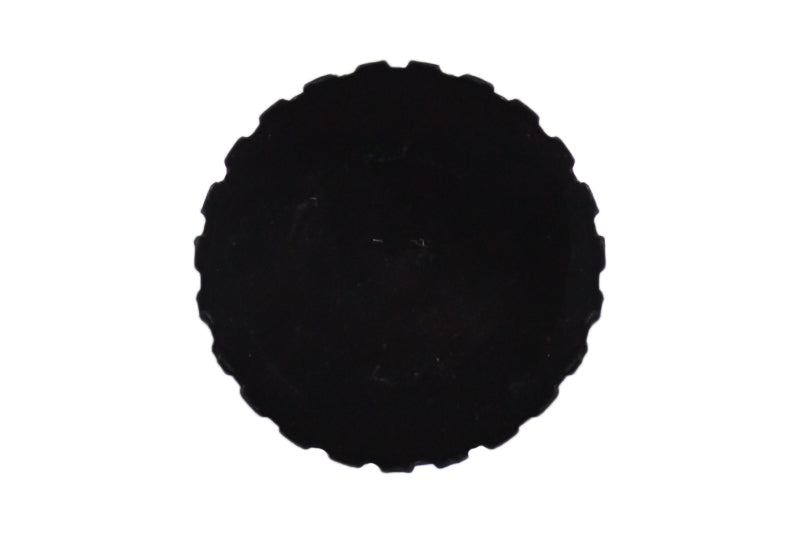

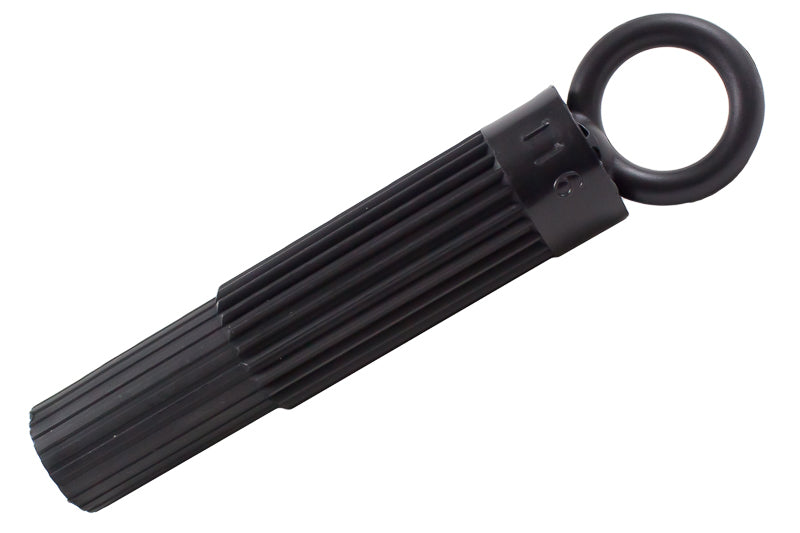

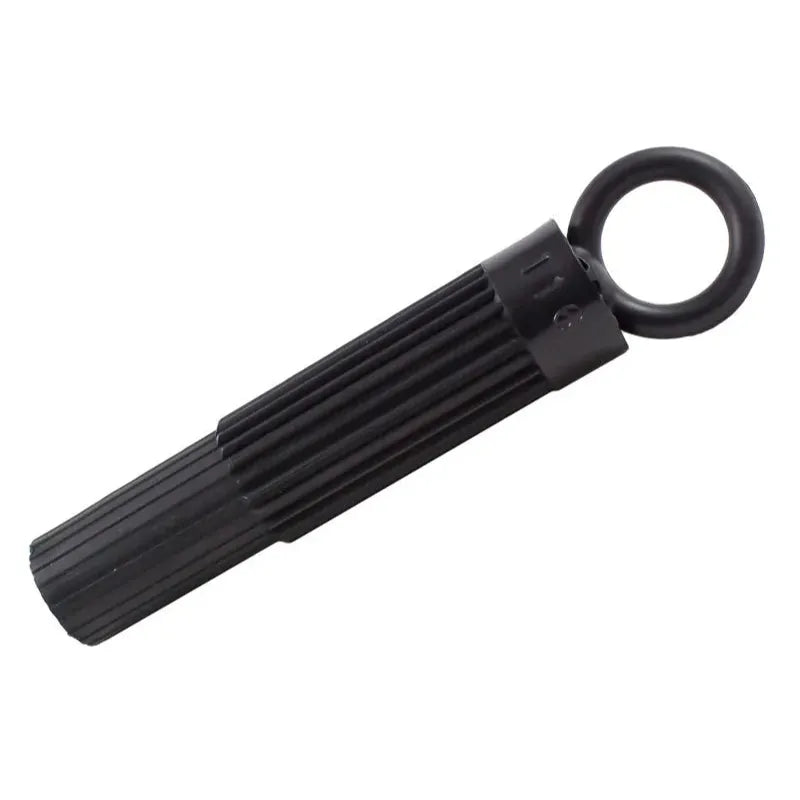

ACT Alignment Tool
2011–2016 Scion tC, 2010–2011 Toyota Camry (Base, LE, SE, XLE)
AT116
Overview:
The ACT Alignment Tool is a precision-engineered accessory designed to simplify the installation of ACT pressure plates. It ensures the clutch disc is perfectly aligned with the pilot bearing, allowing for smooth and accurate engagement with the transmission input shaft. This tool is essential for anyone performing clutch upgrades or replacements on compatible Scion tC and Toyota Camry models.
Whether you are a professional mechanic or a performance enthusiast, this alignment tool helps reduce installation time and prevents common alignment issues that can lead to clutch chatter or premature wear. Backed by ACT’s reputation for excellence and a one-year warranty, it offers reliability and peace of mind during your clutch service.
Key Features:
Designed specifically for ACT clutch systems, this alignment tool offers the following benefits:
- Precisely aligns the clutch disc with the pilot bearing for hassle-free installation
- Compatible with Scion tC models from 2011 to 2016 and Toyota Camry Base, LE, SE, and XLE trims from 2010 to 2011
- Durable construction ensures repeated use without deformation or wear
- Facilitates smooth engagement with the transmission input shaft, reducing installation errors
- Compact and lightweight design for easy handling and storage
- Helps maintain clutch system integrity by preventing misalignment-related damage
- Part of ACT’s “Excellence in Performance” product line, backed by a one-year warranty
Construction & Design:
The ACT Alignment Tool is crafted from high-quality materials engineered for durability and precision. Its design focuses on exact fitment to the clutch disc and pilot bearing dimensions of the specified vehicle models. This ensures consistent alignment every time, which is critical for proper clutch operation and longevity.
The tool’s simple yet effective design allows it to be used quickly during clutch installation without requiring any modifications or special tools. Its robust construction withstands the rigors of professional shop environments as well as enthusiast garages.
Installation & Fitment:
This alignment tool is a direct-fit accessory for the following vehicles:
- Scion tC Base 2011–2016
- Toyota Camry Base 2010–2011
- Toyota Camry LE 2010–2011
- Toyota Camry SE 2010–2011
- Toyota Camry XLE 2010–2011
Using the ACT Alignment Tool requires no cutting, drilling, or special tuning. It works seamlessly with ACT pressure plates and clutch discs designed for these models, ensuring a straightforward installation process. Simply insert the tool to align the clutch disc with the pilot bearing before bolting the pressure plate in place.
What’s Included
- ACT Alignment Tool (Part # AT116)
- Instructions for proper use and installation guidance
Ideal For:
This alignment tool is ideal for:
- Performance enthusiasts upgrading or replacing their clutch system
- Professional mechanics seeking a reliable alignment aid for ACT clutch installations
- DIYers performing clutch service on compatible Scion tC and Toyota Camry models
- Anyone looking to ensure precise clutch disc alignment to improve clutch engagement and longevity
