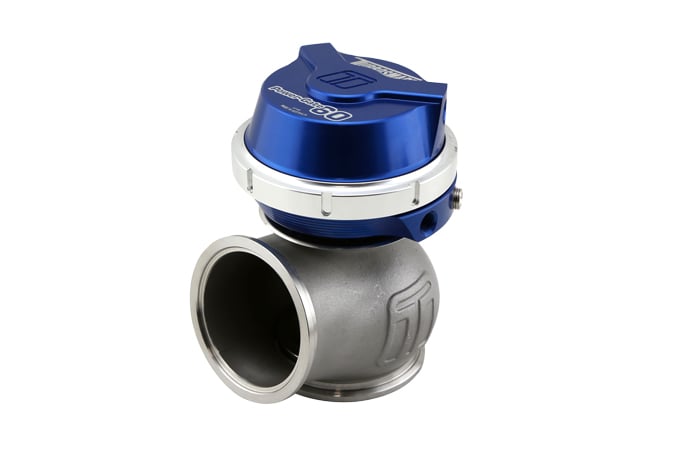

Turbosmart GenV PowerGate60 External Wastegate
Universal Fitment – Direct Upgrade for All Gen4 Turbosmart Wastegates
TS-0555-1011
Overview:
The Turbosmart GenV PowerGate60 External Wastegate is a high-performance, motorsport-proven solution designed to provide precise boost control for turbocharged engines. As the largest 60mm external wastegate in the Turbosmart GenV lineup, it offers the highest flowing poppet-style design available worldwide. This wastegate is ideal for enthusiasts and professional tuners seeking reliable, consistent boost management with exceptional durability and thermal resistance.
Engineered from the ground up, the GenV PowerGate60 delivers extensive configurability and superior flow performance, ensuring optimal control and longevity under demanding conditions. Whether you are upgrading from a Gen4 Turbosmart wastegate or building a high-output turbo system, this wastegate offers a direct fit and advanced features to meet your performance needs.
Key Features:
The GenV PowerGate60 combines cutting-edge engineering and premium materials to deliver unmatched performance and reliability. Key features include:
- Class-leading thermal performance for extended durability in high-heat environments
- Computational Fluid Dynamics (CFD) optimized and bench validated for maximum flow efficiency
- Exceptional fatigue resistance to withstand rigorous motorsport conditions
- Rotatable and clockable actuator housing allowing 360-degree routing of reference hoses for flexible installation
- Unique collar-locking system for secure and easy assembly
- Variable actuator cap and base for customizable boost control settings
- 60mm V-band fitment with strap-type V-band clamps included for secure and leak-free connections
- High-quality Nitronic 60 valve guide and high-temperature 347 stainless steel body for superior strength and corrosion resistance
- 17-7 PH stainless steel springs included in multiple pressure ratings (3, 5, 7, and 14 PSI) for precise boost tuning
- Optional liquid actuator cooling provision to maintain optimal actuator temperature under extreme conditions
- 1/8″ NPT reference ports for easy integration with boost control systems
- Optional position sensor available separately for advanced boost monitoring
Construction & Design:
The GenV PowerGate60 is meticulously crafted using premium materials to ensure durability and performance. Its high-temperature 347 stainless steel body resists corrosion and thermal fatigue, while the Nitronic 60 valve guide enhances valve longevity. The wastegate’s design incorporates advanced CFD analysis to optimize airflow and thermal management, resulting in superior flow capacity and consistent boost control.
The actuator housing is fully rotatable, allowing for flexible hose routing to suit various turbocharger setups. The inclusion of strap-type V-band clamps and weld flanges simplifies installation and ensures a secure, leak-free seal. Additionally, the wastegate features a unique collar-locking system that guarantees a tight, reliable fit without compromising ease of maintenance.
Installation & Fitment:
The Turbosmart GenV PowerGate60 is designed as a direct fit upgrade for all Gen4 Turbosmart wastegates, making it a straightforward replacement or enhancement for existing setups. Its universal compatibility allows it to fit most turbocharged applications where a 60mm external wastegate is required.
Installation is simplified by the included strap-type V-band clamps, weld flanges, and hose fittings, enabling secure connections without the need for cutting, drilling, or special tuning. The rotatable actuator housing and variable actuator components provide flexibility to accommodate different boost control configurations and reference hose routing preferences.
What's Included:
- GenV PowerGate60 wastegate unit with 14 PSI spring installed
- Complete set of springs: 3, 5, 7, and 14 PSI for tuning versatility
- Locking collar tool for secure assembly
- SS316 valve seat for enhanced durability
- Strap-type V-band clamps for inlet and outlet connections
- Weld flanges for inlet and outlet
- Hose tail and blank fitting kit for reference port connections
- Turbosmart decal
- Installation instructions
Ideal For:
- Performance enthusiasts and professional tuners requiring precise boost control
- Motorsport applications demanding high flow capacity and thermal durability
- Turbocharged vehicles needing a reliable, high-flow external wastegate upgrade
- Users seeking flexible installation options with rotatable actuator housing and multiple spring rates
