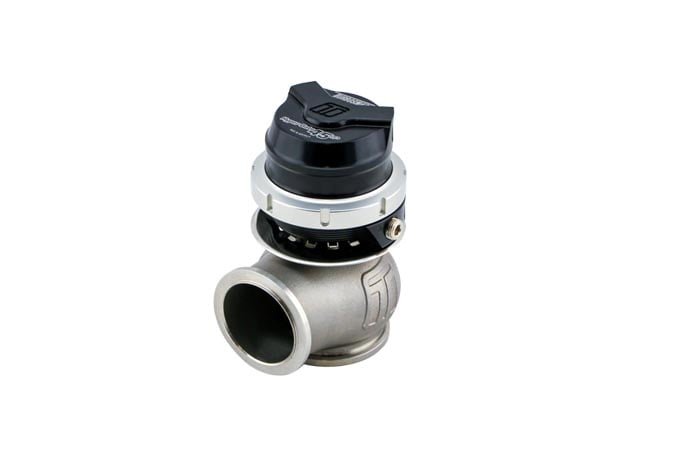

Turbosmart GenV HyperGate45HP External Wastegate
Fits Most Models
TS-0553-1312
Overview:
The Turbosmart GenV HyperGate45HP is a high-performance 45mm external wastegate designed for motorsport and enthusiast applications. Engineered to handle base spring pressures up to 50psi, this wastegate offers exceptional boost control and durability for turbocharged vehicles. Whether you're upgrading from a Gen4 Turbosmart wastegate or seeking a reliable, cost-effective solution for serious boost management, the GenV HyperGate45HP delivers advanced features and proven performance.
Built for racers, tuners, and performance enthusiasts, this wastegate provides precise boost regulation, extended thermal resistance, and fatigue durability to withstand demanding conditions. Its versatile design fits most models, making it an ideal upgrade for a wide range of turbocharged setups.
Key Features:
The GenV HyperGate45HP combines cutting-edge engineering with user-friendly design to offer superior boost control and longevity. Key features include:
- High-pressure actuator capable of up to 50psi base spring pressure for serious boost applications
- Class-leading thermal performance to maintain reliability under extreme heat
- Computational Fluid Dynamics (CFD) optimized and bench-validated for maximum flow efficiency
- Exceptional fatigue resistance for long-lasting durability in motorsport environments
- Rotatable and clockable actuator housing allowing 360-degree routing of reference hoses
- Unique collar-locking system for secure and easy installation
- Strap-type V-band clamps included for reliable sealing and quick assembly
- Optional actuator liquid cooling provision to enhance thermal management
- High-quality materials including Nitronic 60 valve guide, high-temperature 347 stainless steel body, and 17-7 PH stainless steel springs
- Direct fit upgrade for all Gen4 Turbosmart wastegates, ensuring compatibility and ease of replacement
Construction & Design:
The GenV HyperGate45HP is a ground-up redesign of Turbosmart’s classic external wastegate, retaining only the mounting orientation from the previous Gen4 model. Its body is crafted from high-temperature 347 stainless steel, paired with a Nitronic 60 valve guide for enhanced wear resistance and longevity. The valve seat is made from SS316 stainless steel, ensuring a tight seal and durability under high boost pressures.
Advanced CFD optimization and in-house validation guarantee superior flow characteristics and thermal management, reducing boost lag and improving overall turbo response. The actuator cap and base are variable, allowing customizable routing of reference hoses to suit different engine bay layouts. The inclusion of strap-type V-band clamps simplifies installation and maintenance while providing a secure connection.
Installation & Fitment:
This external wastegate is designed as a direct fit upgrade for most turbocharged vehicles and specifically replaces all Gen4 Turbosmart wastegates without modification. Its versatile design fits most models, making it a flexible choice for a wide range of turbo setups. The rotatable actuator housing and variable actuator base allow for easy, 360-degree routing of reference hoses to accommodate various engine configurations.
No cutting, drilling, or special tuning is required for installation when replacing a Gen4 Turbosmart wastegate. The package includes all necessary hardware and fittings to ensure a straightforward bolt-on upgrade.
- Direct fit for Gen4 Turbosmart wastegates
- 360-degree rotatable actuator housing for flexible hose routing
- Strap-type V-band clamps for secure mounting
- Optional liquid cooling provision for actuator
What's Included:
- GenV HyperGate45HP external wastegate assembly
- Locking collar tool for secure installation
- 10psi and 25psi base springs included for tuning flexibility
- GenV SS316 valve seat for enhanced durability
- V-band inlet and outlet clamps
- Inlet and outlet flanges
- Hose tail and blank fitting kit
- Turbosmart decal
- Comprehensive installation instructions
Ideal For:
The Turbosmart GenV HyperGate45HP is ideal for:
- Performance enthusiasts seeking precise boost control up to 50psi
- Motorsport applications requiring reliable, high-flow external wastegates
- Turbocharged vehicles needing an upgrade from Gen4 Turbosmart wastegates
- Tuners who want extensive configurability and thermal management options
- Anyone looking for a durable, cost-effective external wastegate with advanced features
