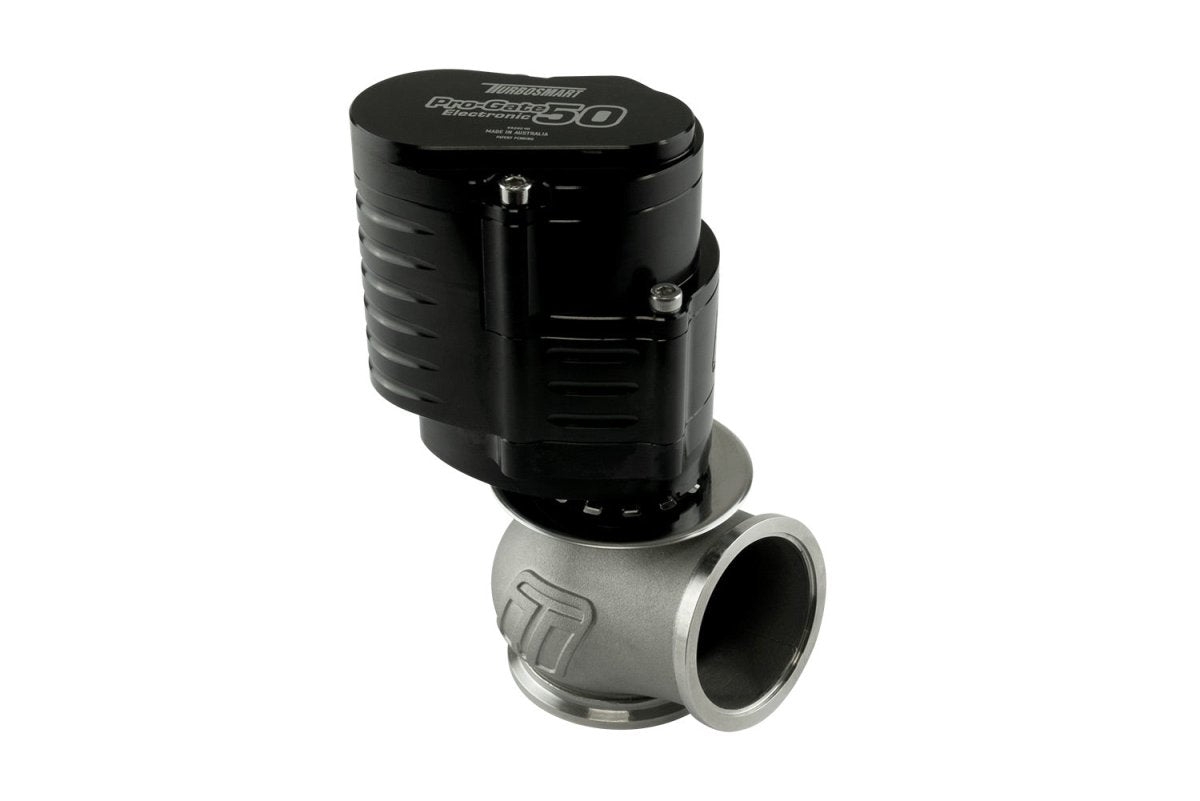

Turbosmart GenV Electronic ProGate50 Electronic External Wastegate
Fits Most Models
TS-0554-1502
Overview:
The Turbosmart GenV Electronic ProGate50 is a cutting-edge 50mm electronic external wastegate designed to deliver precise boost control without the constraints of traditional pneumatic systems. Built on Turbosmart’s proven GenV wastegate body, it ensures compatibility with most existing manifolds and outlet hardware, making installation straightforward for a wide range of applications.
Ideal for performance enthusiasts and tuners seeking ultimate control, this wastegate eliminates the limitations of spring pressure and boost reference hoses. You gain the ability to adjust boost levels dynamically—from zero boost up to maximum—directly through your ECU or tuning interface, offering unparalleled flexibility and responsiveness for street, track, or race setups.
Key Features:
The GenV ProGate50 combines advanced engineering and innovative technology to provide superior performance and reliability. Key features include:
- Class-leading flow capacity validated through Computational Fluid Dynamics (CFD) and bench testing for optimal boost control.
- Durable Nitronic 60 valve guide paired with a high-temperature 347 stainless steel wastegate body for exceptional heat resistance and longevity.
- Liquid-cooled electronic actuator featuring Turbosmart’s patent-pending eWG system, eliminating the need for springs, hoses, or boost reference signals.
- Strap-type V-band clamps for secure, leak-free connections and easy maintenance.
- User-adjustable actuator position allowing fine-tuning of wastegate response to suit specific tuning goals.
- Onboard analog 0-5V wastegate position sensor for precise feedback on valve operation.
- Onboard analog 0-5V actuator temperature sensor to monitor thermal conditions and ensure reliability under demanding conditions.
- Onboard digital (PWM) wastegate position sensor providing additional control and data options for advanced tuning strategies.
- Requires a Dual Half-Bridge input for control, similar to electronic throttle bodies, enabling sophisticated boost management limited only by your ECU or controller capabilities.
Construction & Design:
The ProGate50’s foundation is Turbosmart’s GenV wastegate body, renowned for its robust construction and excellent heat handling. The high-temp 347 stainless steel body resists corrosion and thermal degradation, while the Nitronic 60 valve guide ensures smooth, reliable valve movement even under extreme conditions.
The electronic actuator is liquid-cooled to maintain optimal operating temperatures, enhancing durability and consistent performance. The strap-type V-band clamps provide a secure and service-friendly connection, simplifying installation and maintenance. The design also allows for user adjustment of actuator position, giving tuners the ability to customize wastegate behavior precisely.
Installation & Fitment:
The Turbosmart GenV Electronic ProGate50 is engineered to fit most models, utilizing the same mounting orientation as the original GenV wastegate body. This ensures compatibility with existing manifold and outlet hardware, reducing the need for modifications.
Installation requires a Dual Half-Bridge input from your ECU or controller for electronic boost control, similar to how electronic throttle bodies are managed. No cutting, drilling, or boost reference hoses are necessary, simplifying the upgrade process. The system’s flexibility allows you to tailor boost control strategies to your specific tuning setup.
What's Included:
- GenV ProGate50 50mm electronic external wastegate body
- Liquid-cooled electronic actuator with integrated sensors
- Strap-type V-band clamps for secure mounting
- User adjustable actuator position hardware
- Comprehensive wiring and sensor outputs for integration with ECU or controller
Ideal For:
This electronic wastegate is perfect for performance enthusiasts, tuners, and racers who demand precise and flexible boost control without the drawbacks of pneumatic systems. It suits applications ranging from street-driven turbocharged vehicles to high-performance race cars where fine-tuned boost management is critical.
- Street and track performance vehicles
- Turbocharged engines requiring advanced boost control
- Custom tuning setups leveraging electronic boost strategies
- Applications demanding reliable, heat-resistant wastegate components
