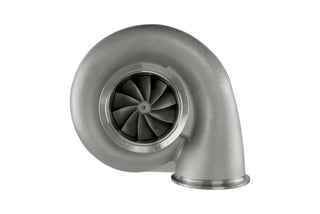

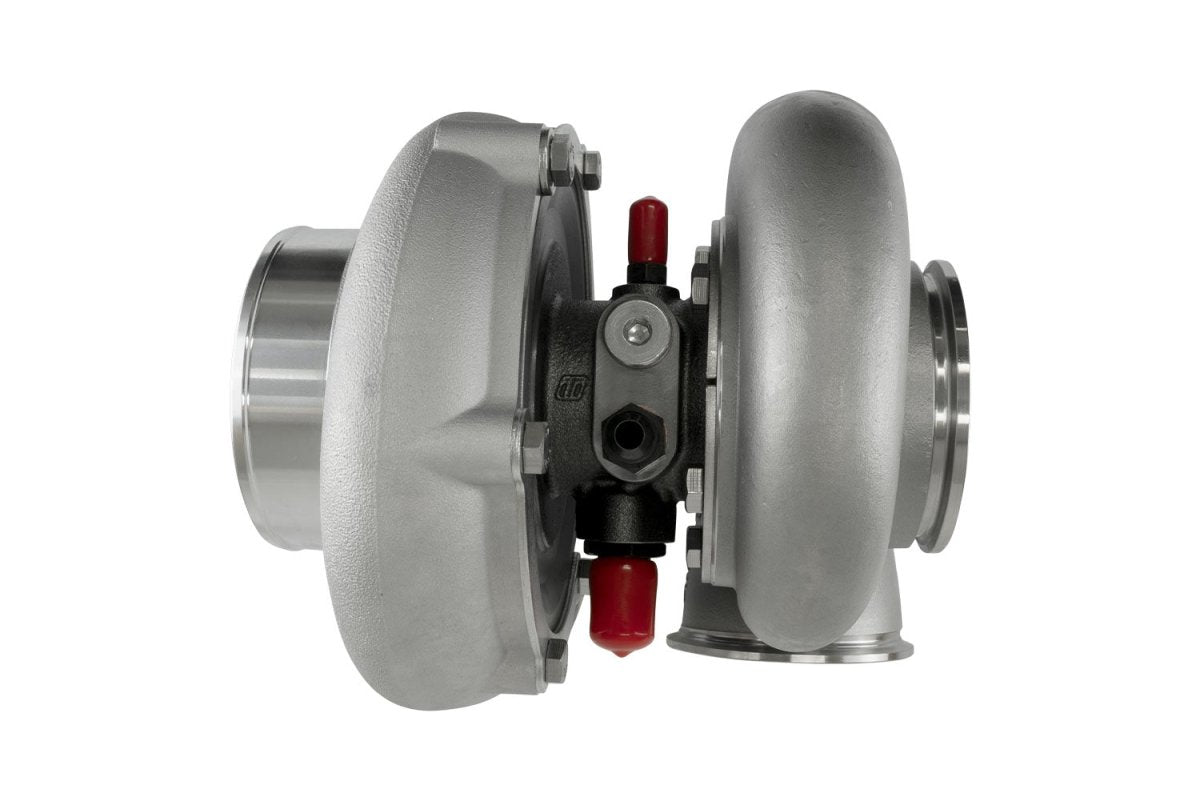

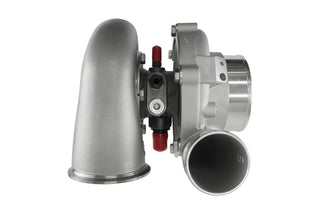

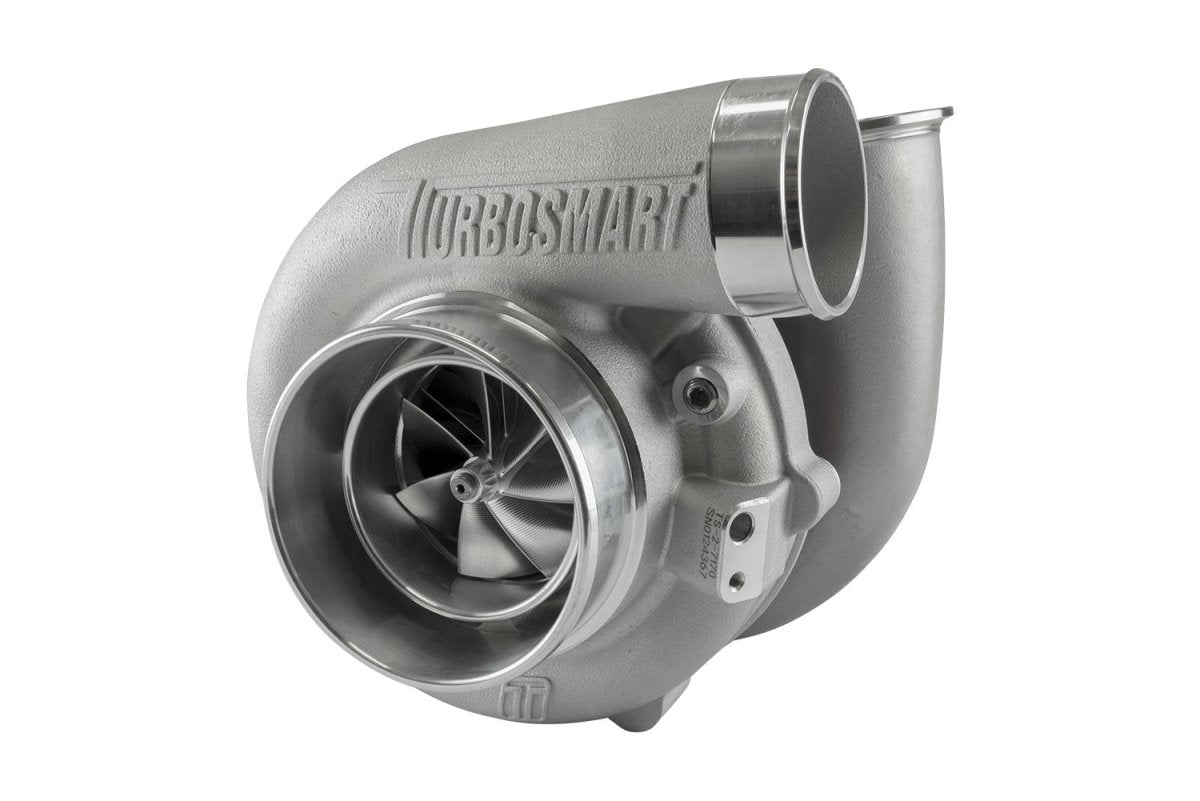

Turbosmart Kompact Externally Wastegated Watercooled Turbo
Fits Most Models with V-Band Inlet and Outlet, 1.07AR Hotside
TS-2-7170B-VB107E
Overview:
The Turbosmart Kompact Externally Wastegated Watercooled Turbo is engineered for enthusiasts seeking exceptional power and responsiveness in a compact, lightweight package. Designed to fit most vehicle models with V-band inlet and outlet connections, this turbocharger delivers impressive horsepower capabilities while maintaining quick spool times and reduced back pressure.
Ideal for daily drivers and performance enthusiasts alike, the TS-2 series combines advanced materials and innovative engineering to provide reliable, high-performance turbocharging. Its water and oil cooling systems ensure durability under demanding conditions, while the proprietary bearing and shaft assembly offer transient response that elevates your vehicle’s driving experience.
Key Features:
This turbocharger incorporates cutting-edge technology and premium materials to maximize performance and reliability:
- Unparalleled transient response for quicker spool and throttle reaction.
- Aggressive compressor aerodynamics featuring 7+7 2618 aluminum splitter wheels for efficient airflow.
- Lightweight 310s stainless steel investment cast turbine housings for strength and heat resistance.
- Aluminum compressor covers that reduce weight without sacrificing durability.
- CFD-driven housing designs optimized for ideal A/R ratios and flow characteristics.
- 713C Inconel turbine wheel engineered to withstand extreme exhaust gas temperatures (EGTs).
- VSR speed balancing ensures smooth operation at high RPMs.
- Proprietary dual ceramic bearing system reduces rotating mass and enhances durability.
- Integrated iron backplate on the center housing for added structural integrity.
Construction & Design
The Turbosmart Kompact Turbo features a robust yet lightweight construction that balances performance and reliability. Its turbine housings are crafted from investment-cast 310s stainless steel, providing excellent heat resistance and longevity. The compressor covers are made from lightweight aluminum to reduce overall turbo weight, improving spool time and transient response.
Advanced computational fluid dynamics (CFD) guided the design of the compressor and turbine housings, optimizing airflow and pressure ratios for maximum efficiency. The unique turbine wheel, made from high-grade 713C Inconel, is built to endure extreme temperatures, ensuring consistent performance even under high load conditions.
Performance & Sound
- Supports horsepower ratings between 875 and 1010 HP, making it suitable for high-output builds.
- Reduced back pressure and low rotating mass contribute to faster spool and improved throttle response.
- Enhanced compressor and turbine aerodynamics deliver smooth, efficient airflow for sustained power delivery.
Installation & Fitment
This turbocharger is designed to fit most vehicle models equipped with V-band inlet and outlet connections, featuring a 4-inch compressor inlet and V-band turbine flanges for easy integration. The externally wastegated design allows for flexible wastegate placement and improved exhaust flow management.
Installation is simplified by the inclusion of all necessary hardware and fittings. No cutting, drilling, or special tuning is required beyond standard turbocharger setup procedures.
- Compressor Inlet: 4″ (101.6mm)
- Turbine Inlet: V-Band (2.25″)
- Turbine Outlet: V-Band (3.00″)
- Turbine A/R: 0.82
- Weight: 6.06 kg (13.3 lbs)

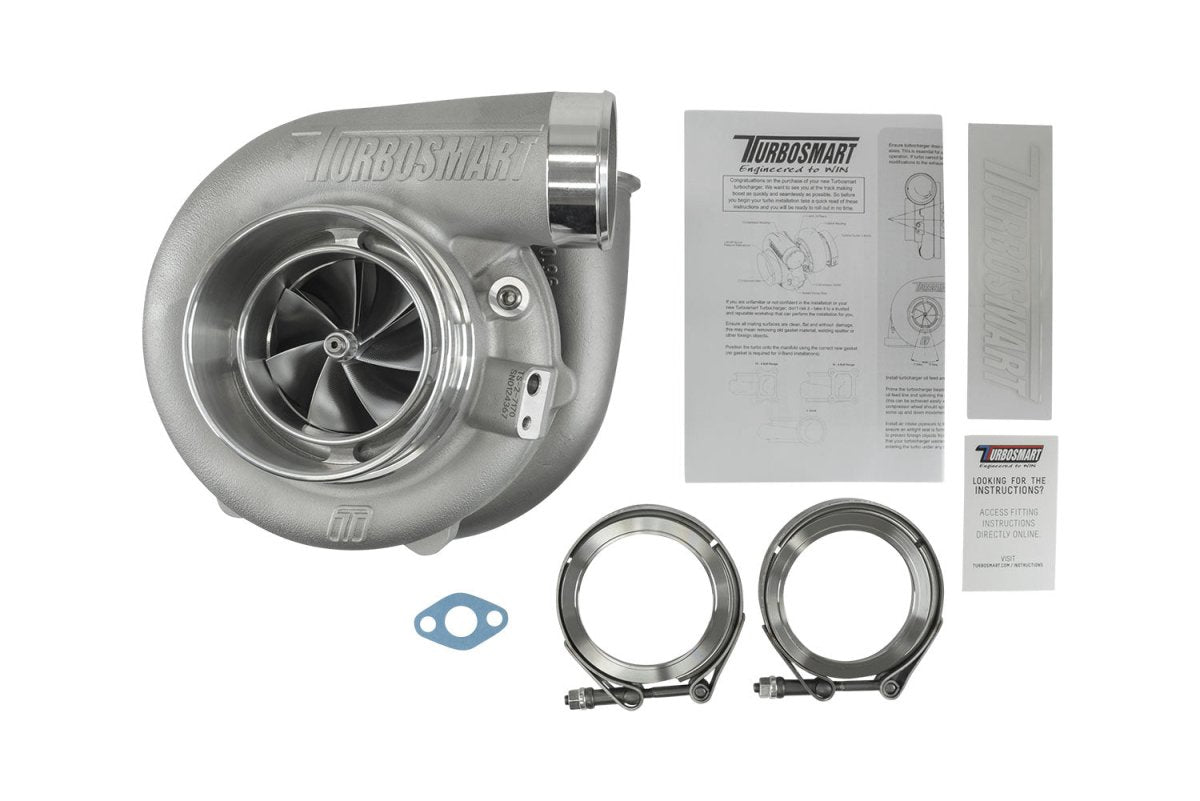

What's Included:
- (1) Turbosmart Performance Turbocharger
- (2) Weld Flanges for turbine inlet and outlet
- (2) V-Band Clamps for turbine inlet and outlet
- (1) Oil drain gasket
- (1) Water line fitting kit
