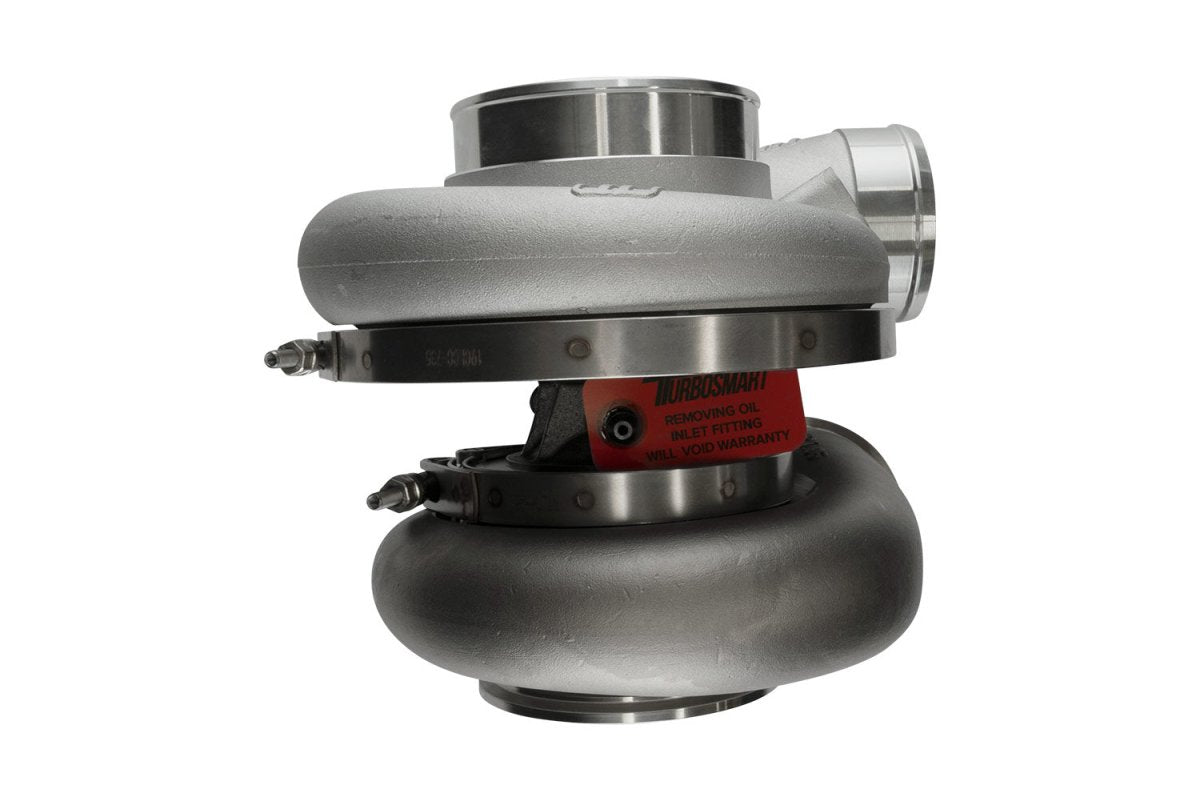

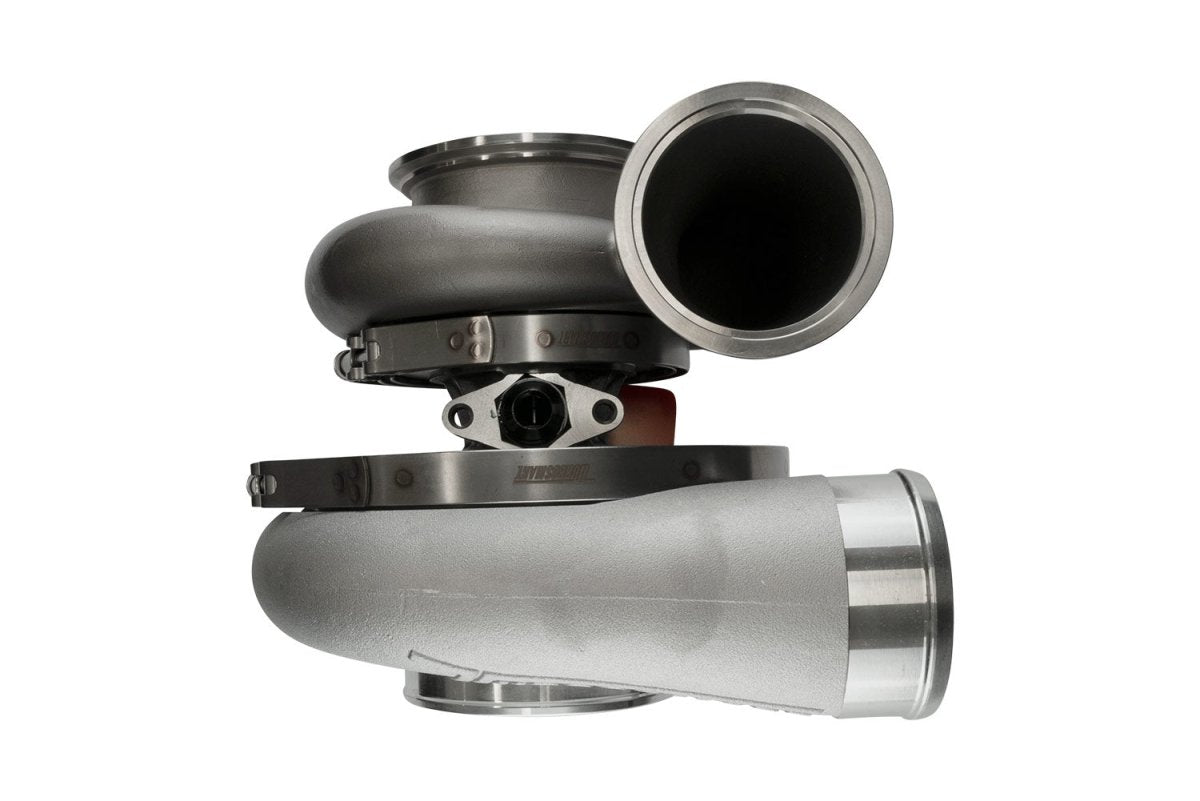

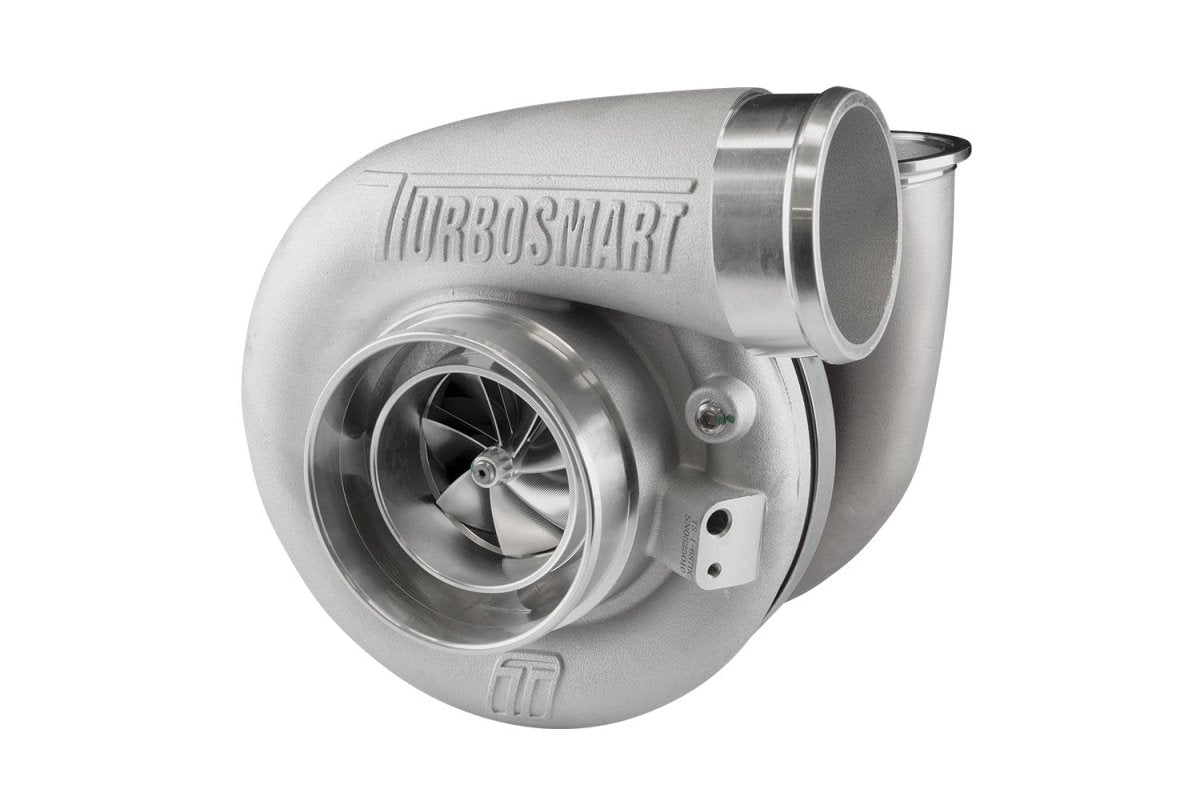

Turbosmart TS-1 Externally Wastegated Turbocharger
Fits Most Models with V-Band Inlet and Outlet, 0.96AR Hotside
TS-1-6870C-VB096E
Overview:
The Turbosmart TS-1 is a high-performance externally wastegated turbocharger engineered to deliver exceptional power and responsiveness across a wide range of vehicle applications. Designed with an engine end-to-end approach, this turbo reduces back pressure and maximizes turbine efficiency while maintaining a compact, lightweight form factor. Whether you're a performance enthusiast or a professional tuner, the TS-1 offers a balance of power, reliability, and quick transient response that enhances your vehicle’s driving dynamics.
Ideal for those seeking to support horsepower levels between 825 and 955, this turbocharger combines advanced materials and aerodynamic design to ensure strong performance at both low and high engine speeds. Its oil-cooled design and robust construction provide durability and consistent operation under demanding conditions.
Key Features:
The Turbosmart TS-1 turbocharger incorporates cutting-edge technology and premium materials to optimize performance and reliability. Key features include:
- Ultra-low rotating mass proprietary dual ceramic bearing and shaft assembly for unparalleled transient response
- Aggressive compressor aerodynamics featuring 7+7 2618 aluminum splitter wheels for improved airflow
- Lightweight 310 stainless steel investment cast turbine housings for enhanced durability and heat resistance

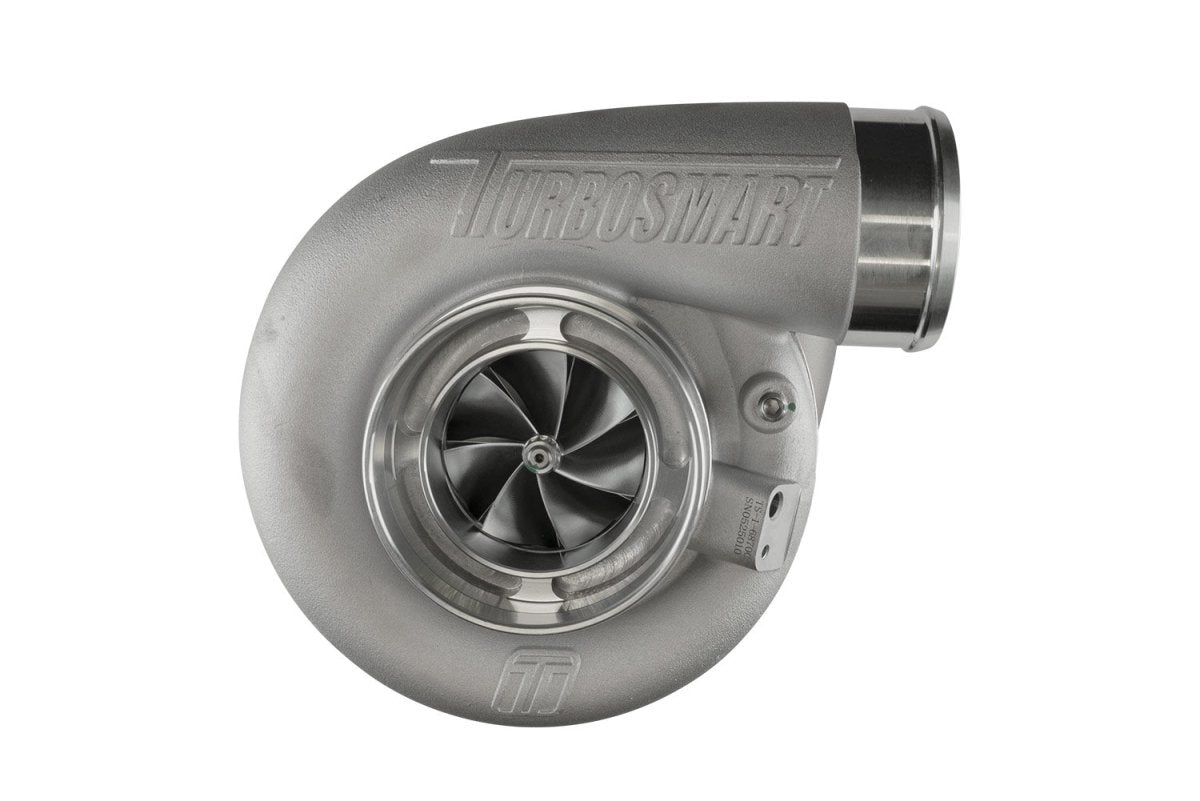

- Aluminum compressor covers that reduce weight without compromising strength
- CFD-driven housing designs optimized for ideal A/R ratios and flow characteristics

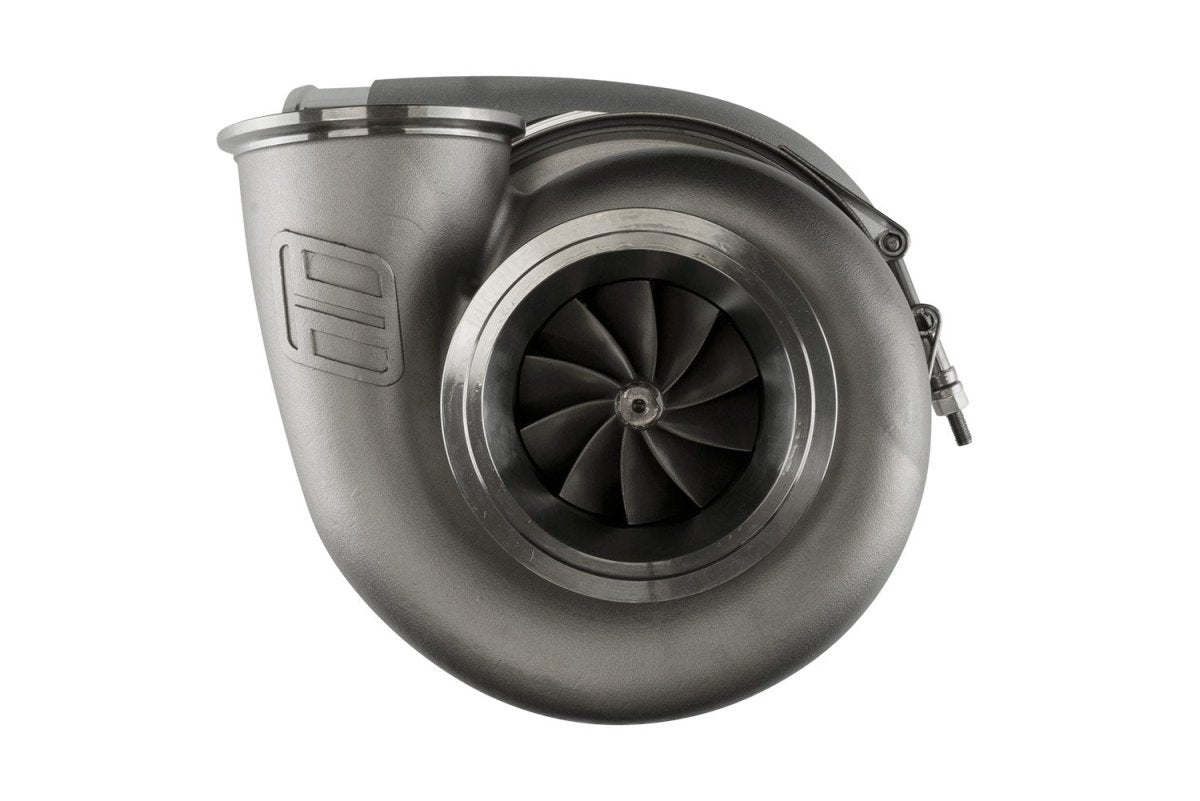

- 713C Inconel turbine wheel capable of withstanding extreme exhaust gas temperatures (EGTs)
- VSR speed balancing for smooth operation and extended component life
- Integrated iron backplate on the center housing for added structural integrity
- Oil-cooled system to maintain optimal operating temperatures and reliability
Construction & Design:
The TS-1 turbocharger features a precision-engineered combination of materials and design elements to maximize performance and durability. The turbine housing is crafted from lightweight 310 stainless steel using investment casting, providing excellent heat resistance and strength. The compressor housing and covers are made from lightweight aluminum, reducing overall weight and improving throttle response.
Advanced computational fluid dynamics (CFD) guided the design of the compressor and turbine housings, ensuring optimal airflow and efficient energy conversion. The proprietary dual ceramic bearing system minimizes friction and rotating mass, enabling rapid spool-up and improved transient response. The integrated iron backplate enhances the center housing’s rigidity, contributing to long-term reliability under high boost conditions.
Performance & Sound
- Supports horsepower ratings from 825 to 955, making it suitable for high-output builds
- Delivers quick spool and exceptional transient response for improved throttle feel
- Maintains strong power delivery at high engine loads and flow rates
- Optimized turbine and compressor aerodynamics reduce lag and improve overall efficiency
Installation & Fitment:
The Turbosmart TS-1 turbocharger is designed to fit most vehicle models equipped with V-band inlet and outlet connections, featuring a 0.96 A/R hotside for versatile application. It comes complete with all necessary hardware for installation, including weld flanges and V-band clamps for both turbine inlet and outlet.
This turbocharger is intended for custom or aftermarket setups and requires professional installation. No cutting, drilling, or special tuning is required beyond standard turbocharger installation procedures, provided the supporting modifications and engine management are in place.
- Compressor inlet diameter: 4″ (101.6mm)
- Turbine inlet V-band size: 2.25″
- Turbine outlet V-band size: 3.00″
- Turbine A/R ratio: 0.82
- Compressor inducer diameter: 64mm
- Turbine exducer diameter: 66mm

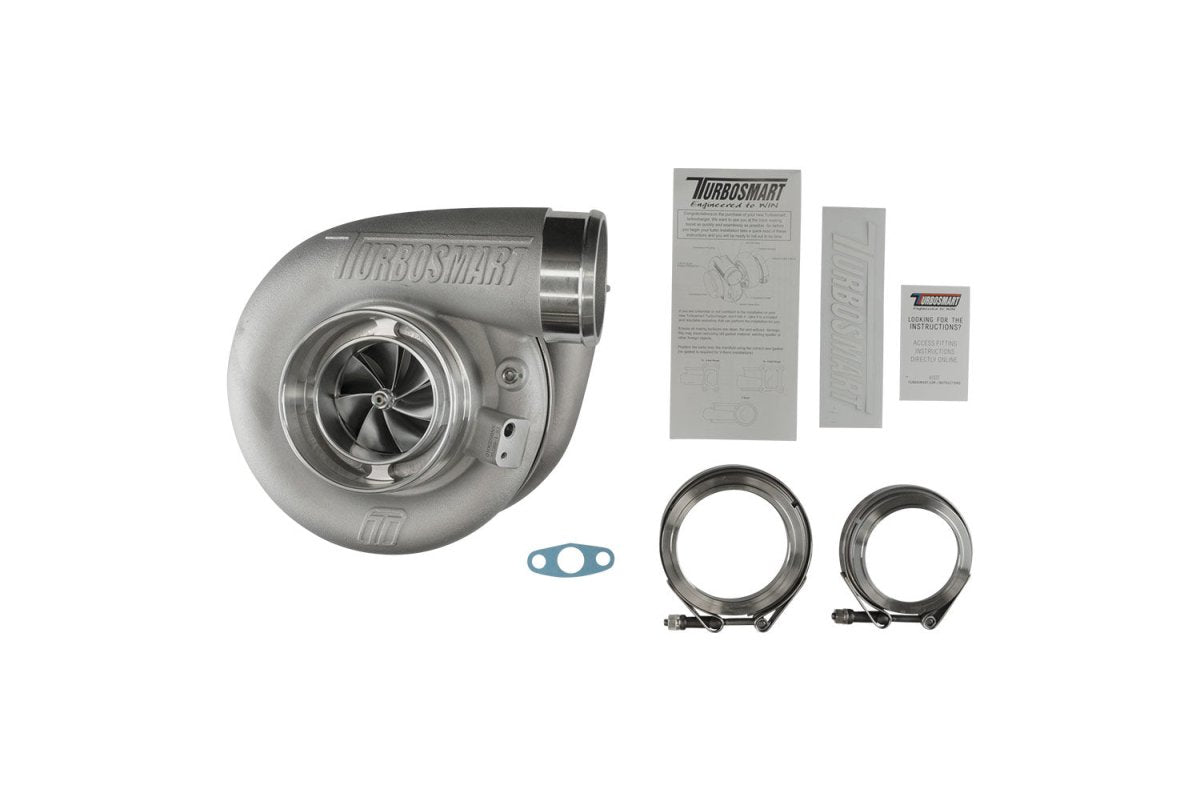

What's Included:
- (1) Turbosmart TS-1 Performance Turbocharger
- (2) Weld flanges for turbine inlet and outlet
- (2) V-band clamps for turbine inlet and outlet
- (1) Oil drain gasket
- Oil feed and drain fittings
- Water feed and return fittings
Ideal For:
The Turbosmart TS-1 turbocharger is perfect for performance enthusiasts and professional tuners looking to upgrade their forced induction system for high horsepower applications. It suits a variety of builds, including street performance, track, and motorsport vehicles that demand quick spool, high flow capacity, and reliable operation under extreme conditions.
- High-output turbocharged engines requiring 825–955 horsepower support
- Custom turbo setups with V-band inlet and outlet connections
- Enthusiasts seeking improved transient response and throttle control
- Applications where lightweight and durable turbo components are critical
