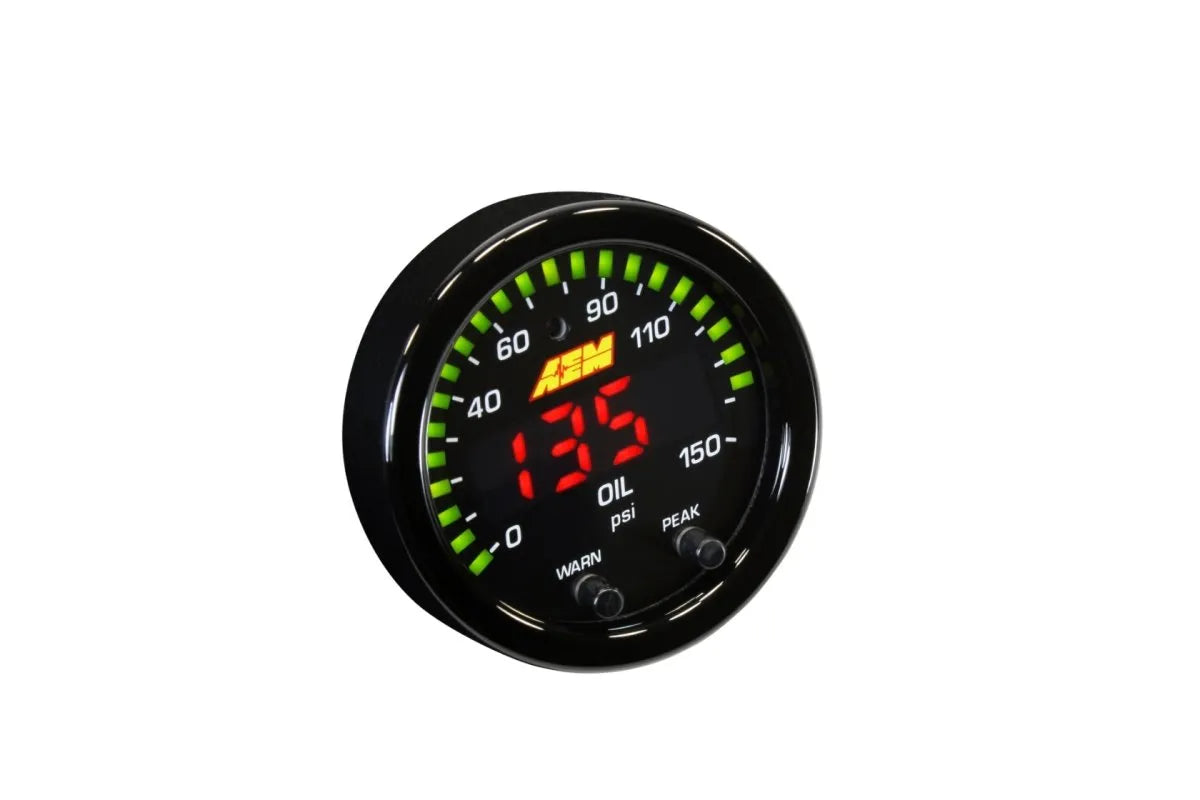

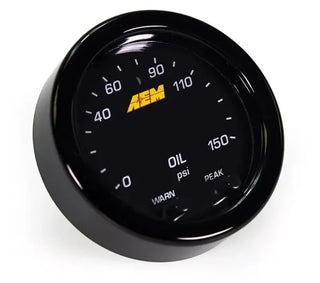

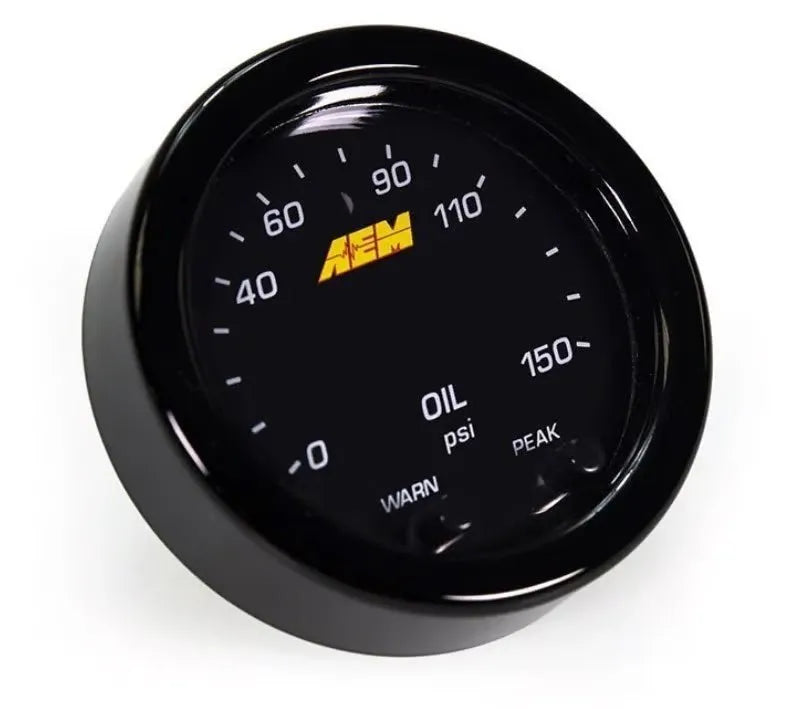

AEM X-Series Oil Pressure Gauge 0-150psi 52mm
Fits Most Models
30-0307
Overview:
The AEM X-Series Oil Pressure Gauge 0-150psi is a precision instrument designed for performance enthusiasts who demand accurate and reliable oil pressure monitoring in their vehicles. Featuring a sleek 52mm diameter housing, this gauge fits most standard gauge pods, making it a versatile upgrade for a wide range of applications. Whether you’re tracking your engine’s vital signs on the street or at the track, the X-Series gauge offers enhanced readability and advanced features to keep you informed and in control.
With its bright, large LED display and intuitive interface, this gauge is ideal for drivers who want clear, real-time oil pressure data without distraction. Its slim profile and easy mounting options allow installation in tight spaces, ensuring it integrates seamlessly into your vehicle’s cockpit.
Key Features:
The AEM X-Series Oil Pressure Gauge combines innovative design and smart technology to deliver superior performance and usability. Key features include:
- Standard 2-1/16 inch (52mm) diameter housing for easy mounting in most gauge pods
- Slim overall depth of under 0.825 inches and a shallow cup depth of only 0.200 inches for flexible installation
- Bright center LED display that is 87% larger than previous AEM digital gauges for improved visibility
- 33% larger gauge face display with a sweeping green LED “needle” around the edge for quick, at-a-glance readings

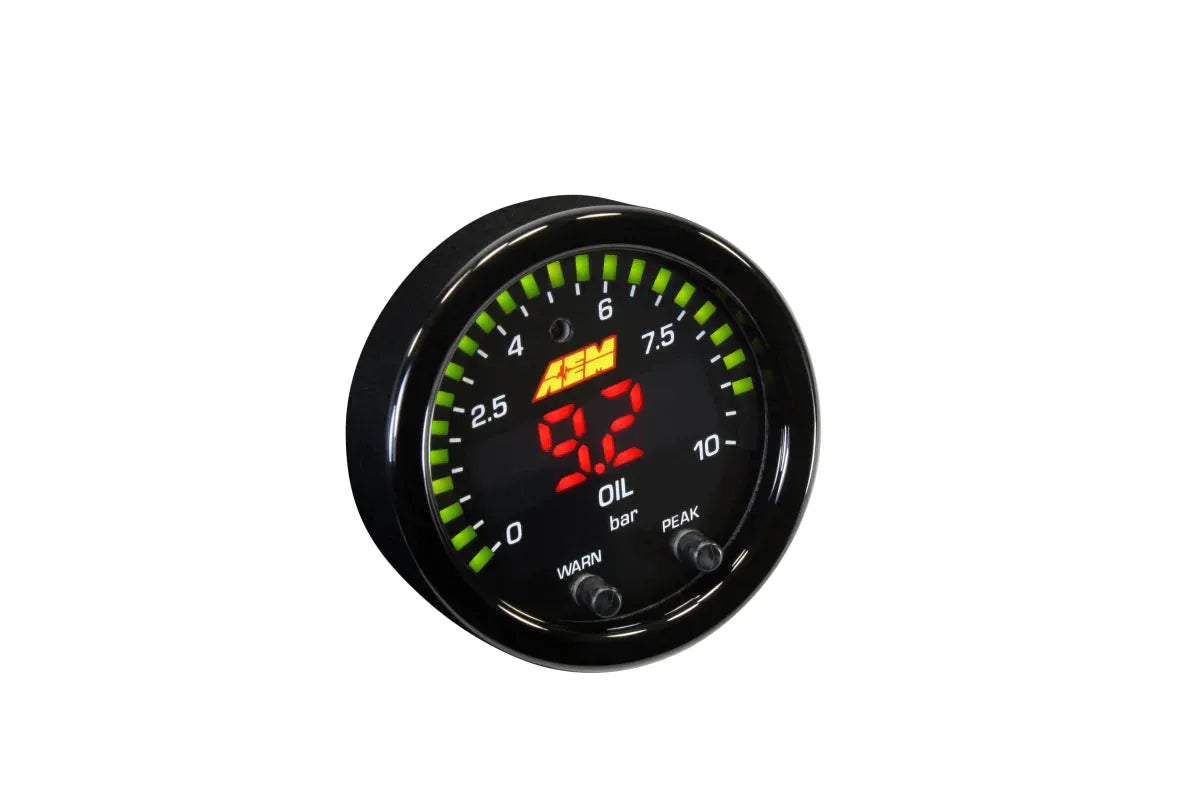

- User-selectable display units: switch easily between PSI and metric BAR with calibration via face buttons
- Peak and recall functions accessible directly from the gauge face for monitoring maximum pressure values
- User-programmable threshold warnings to alert you of critical pressure levels
- AEMnet CAN-bus enabled for seamless integration with Infinity ECU, Series 2 EMS, AQ-1 Data Logger, and compatible third-party systems
- 0-5V analog output for connection to engine management systems and data loggers
- Auto-dimming sensor adjusts display brightness for optimal visibility in all lighting conditions
- Positive locking connectors ensure secure and reliable electrical connections
Construction & Design:
The X-Series gauge is engineered with a compact, single-board design that minimizes depth without sacrificing functionality. Its durable black bezel and oil pressure faceplate provide a clean, professional look. The gauge’s slim profile allows it to fit in tight dashboard locations or custom gauge pods, making it suitable for a wide variety of vehicles and setups.
For added customization, an optional accessory kit (sold separately) offers a silver bezel and alternate faceplates, including white oil pressure and fuel pressure options, each double-sided with PSI and BAR units. This flexibility lets you tailor the gauge’s appearance to match your vehicle’s interior and instrumentation style.
Installation & Fitment:
The AEM X-Series Oil Pressure Gauge is designed for straightforward installation in most vehicles with standard 52mm gauge pods. Its slim depth and shallow cup allow mounting in locations where space is limited. The gauge uses positive locking connectors for secure wiring and includes user-friendly buttons on the faceplate for easy programming without removing the gauge.
No cutting, drilling, or special tuning is required for installation, making it a convenient upgrade for both professional installers and DIY enthusiasts.

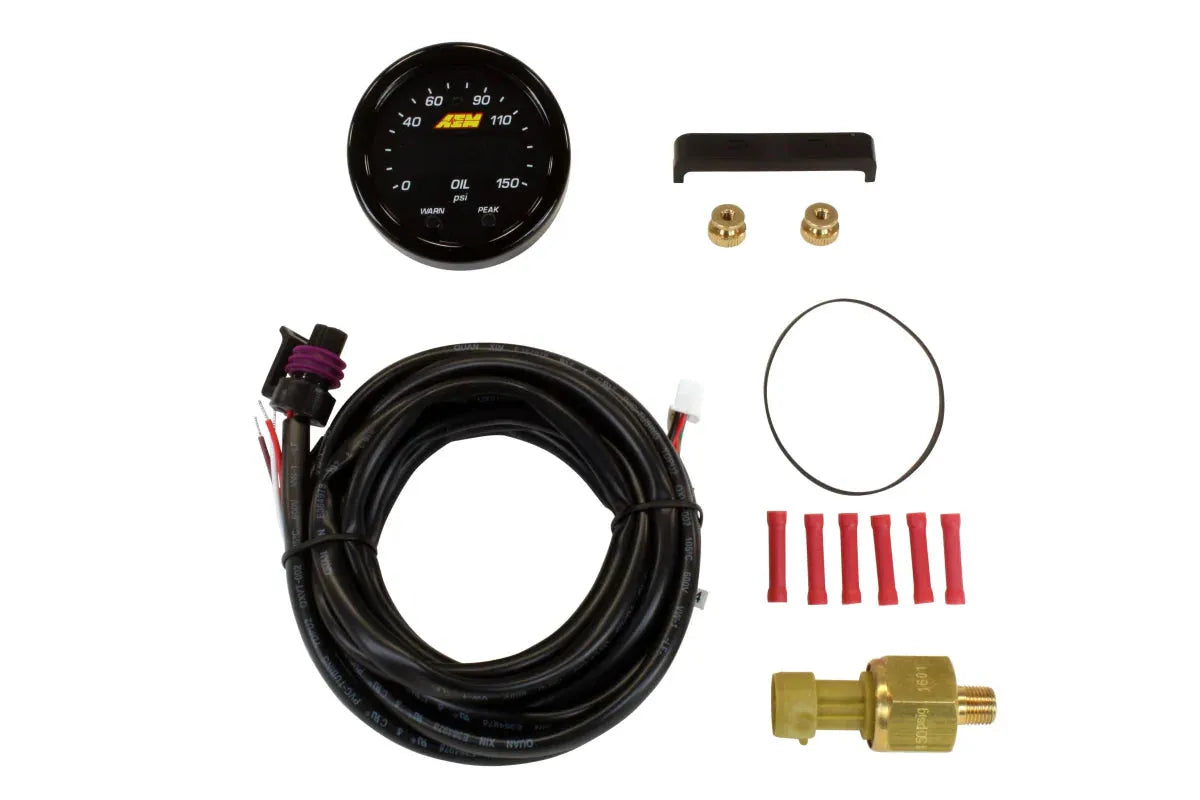

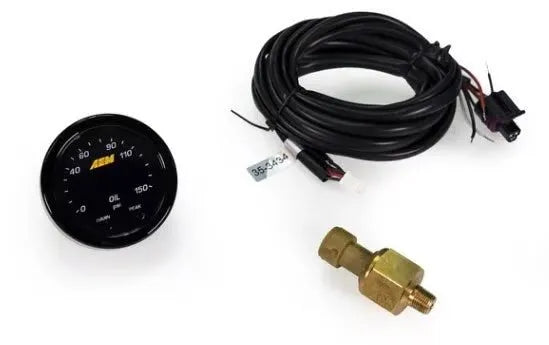

What's Included:
- AEM X-Series Oil Pressure Gauge (black bezel and black oil pressure faceplate)
- Wiring harness with positive locking connectors
- Installation instructions
Ideal For:
- Performance enthusiasts seeking precise oil pressure monitoring
- Street and track drivers who require quick, clear gauge readability
- Vehicles with limited dashboard space needing a slim-profile gauge
- Users integrating gauges with AEMnet CAN-bus compatible engine management or data logging systems
