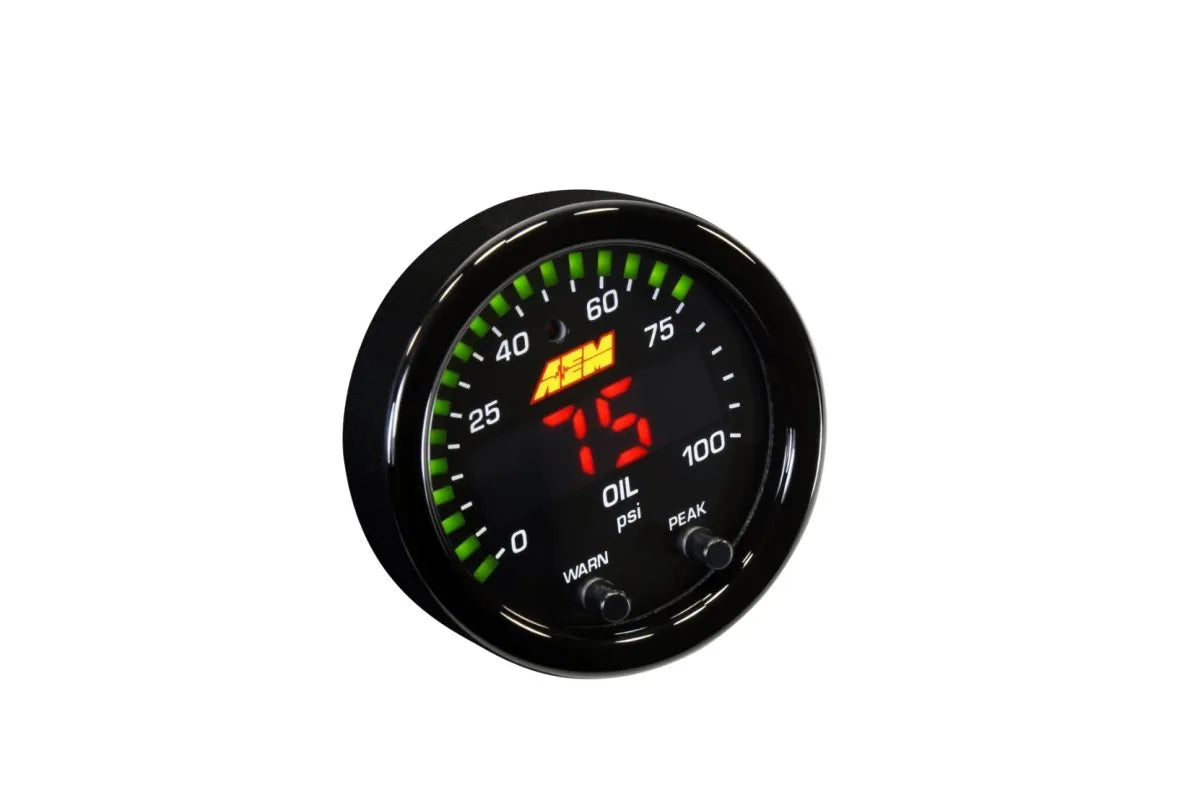

AEM X-Series Oil Pressure Gauge
Fits Most Models
30-0301
Overview:
The AEM X-Series Oil Pressure Gauge is a precision digital instrument designed to provide highly accurate oil or fuel pressure readings for high-performance vehicles. Featuring a sleek design and enhanced readability, this gauge is ideal for enthusiasts and professionals who demand reliable monitoring of critical engine parameters. Whether you're tuning your ride or ensuring optimal engine health, the X-Series gauge delivers clear, real-time data to keep you informed.
Its versatile fitment makes it compatible with most vehicle models, allowing you to upgrade your dashboard with a modern, easy-to-read digital display. The gauge is perfect for daily drivers, track enthusiasts, and anyone seeking precise pressure monitoring in a compact, stylish package.
Key Features:
The AEM X-Series Oil Pressure Gauge combines advanced technology with user-friendly design to enhance your vehicle’s monitoring capabilities.
- Bright center LED display that is 87% larger than previous digital gauges for superior readability.
- Sweeping green LED “needle” around the gauge edge provides quick visual reference of pressure changes.
- 33% increase in overall gauge face display size for easier at-a-glance viewing.
- Standard 2-1/16-inch (52mm) diameter housing fits in most standard gauge pods.
- Ultra-slim design with an overall depth under 0.825” and a cup depth of only 0.200” for flexible mounting options.
- Two-button interface on the faceplate allows easy programming of peak/recall, unit calibration (PSI or BAR), sweeping needle, and threshold warnings.
- AEMnet CAN-bus enabled for daisy chaining with Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or compatible third-party EMS/loggers.
- Includes 0-5V analog outputs for integration with data loggers and engine management systems.
- Comes with a black bezel and black oil pressure faceplate; optional accessory kit available for silver bezel and alternate faceplates.
- Double-sided faceplates feature standard PSI on one side and metric BAR on the other, easily switchable via gauge buttons.
Construction & Design:
The X-Series gauge is engineered with a compact, durable housing that fits seamlessly into standard gauge pods without sacrificing display size or clarity. Its advanced single-board design reduces depth, allowing installation in tight spaces where traditional gauges may not fit. The black bezel and faceplate provide a clean, professional look, while the optional accessory kit offers customization with silver bezels and alternate faceplates to match your vehicle’s interior.
The bright LED display and sweeping needle combine digital precision with analog-style readability, making it easier to monitor pressure changes quickly and accurately during spirited driving or track sessions.
Installation & Fitment:
The AEM X-Series Oil Pressure Gauge is designed for straightforward installation in most vehicles. Its standard 2-1/16-inch diameter housing fits common gauge pods, making it compatible with a wide range of dashboards and mounting locations. The shallow cup depth allows mounting in tight or unconventional spaces without modification.
No cutting, drilling, or special tuning is required for installation, ensuring a clean, professional setup. The gauge’s CAN-bus capability enables easy integration with AEM’s Infinity ECU, Series 2 EMS, and data logging systems, as well as compatible third-party devices.
What's Included:
- AEM X-Series Digital Oil Pressure Gauge with black bezel and black oil pressure faceplate
- Standard mounting hardware
- User manual with programming and calibration instructions
Ideal For:
- Performance enthusiasts seeking precise oil or fuel pressure monitoring
- Track and race drivers requiring reliable, easy-to-read gauges
- Daily drivers who want enhanced engine monitoring and diagnostics
- Users integrating gauges with AEMnet CAN-bus systems and data loggers
- Anyone needing a compact gauge with flexible mounting options
