Radium Engineering Fuel Pump Hangar
2017–2020 Toyota 86 / 2013–2020 Subaru BRZ / 2013–2016 Scion FR-S
20-1073
Overview:
The Radium Engineering Fuel Pump Hangar is a fully redesigned in-tank fuel pump module replacement engineered specifically for the Toyota 86, Subaru BRZ, and Scion FR-S models within the specified year ranges. This advanced fuel pump hanger allows the installation of one or two aftermarket fuel pumps, providing enhanced fuel delivery capabilities for performance enthusiasts and tuners. It retains the OEM fuel level sender to maintain factory fuel gauge functionality, ensuring seamless integration with your vehicle’s existing systems.
Ideal for drivers seeking improved fuel collection, reliability, and ease of installation, this fuel pump hanger supports high-flow fuel pumps and brushless designs, making it suitable for both street and track applications where consistent fuel pressure and flow are critical.
Key Features:
This fuel pump hanger offers a range of technical advantages designed to optimize fuel system performance and reliability:
- Complete replacement of the factory in-tank fuel pump module for direct fitment.
- Compatibility with a variety of aftermarket pumps including Walbro F90000267, F90000274, F90000285, Deatschwerks DW440 and DW810 brushless pumps, Fuelab 49614, and Protec 11928 brushless pumps.
- Includes sock filters for Walbro pumps; other pumps come with manufacturer-supplied sock filters.
- Collector box constructed from anodized aluminum with a 1-way 355 LPH fill valve to trap fuel around pump inlets and prevent starvation.

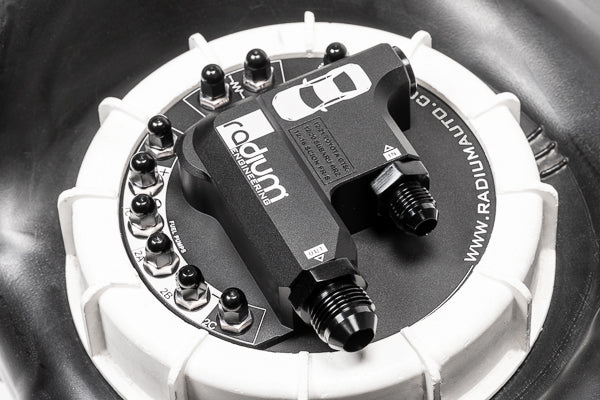

- 8AN ORB to 8AN male pump-out fitting and 6AN ORB to 6AN male return fitting for robust fuel line connections.
- Redesigned venturi jet pump siphon system eliminates OEM restrictions, enabling use of higher flowing pumps without fuel pressure issues.
- High-current electrical connections with new anti-rotation terminals for secure and reliable power delivery.
- Supports single or twin fuel pump configurations with a merged fuel pump outlet.
- Includes stainless steel hardware and clamps for corrosion resistance and durability.
- Compatible with alternative fuels, expanding versatility for various performance setups.
Construction & Design:

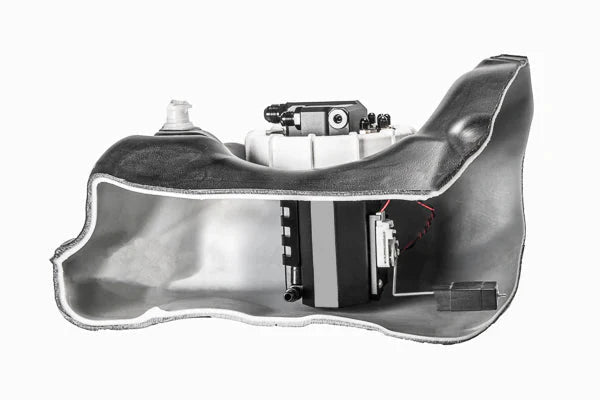

The fuel pump hanger features a one-piece anodized aluminum collector box designed to simplify installation while enhancing fuel collection efficiency. The integrated 1-way fill valve allows fuel to enter the collector but prevents it from escaping, ensuring a constant supply of fuel to the pump inlet(s). This design is continuously replenished by fuel returning from the aftermarket fuel pressure regulator, maintaining optimal fuel levels during all driving conditions.
The system’s fittings utilize ORB (O-ring boss) threads—3/4"-16 (8AN ORB) for the pump-out port and 9/16"-18 (6AN ORB) for the return port—providing leak-free, high-pressure connections. The electrical terminals have been upgraded with anti-rotation features to prevent loosening and ensure consistent power delivery to the pumps.
Fuel Pressure & Filtration
This fuel pump hanger eliminates the OEM internal fuel pressure regulator, requiring the use of an aftermarket regulator to maintain proper fuel pressure. Plumbing kits compatible with this hanger include a fuel pressure regulator and a low-micron post-pump fuel filter to protect injectors from debris, as the OEM post-pump filter is also removed.
The redesigned venturi jet pump siphon system reduces fuel pressure restrictions found in the factory setup, allowing higher flowing pumps to operate reliably. However, the venturi jet pump consumes 15–45 LPH depending on fuel pressure, so this should be considered when selecting pump size. For applications requiring stable fuel pressure after engine shutdown, a check valve is recommended and included in compatible plumbing kits.
Installation & Fitment:
The Radium Engineering Fuel Pump Hangar is a direct replacement for the factory in-tank fuel pump module on 2017–2020 Toyota 86, 2013–2020 Subaru BRZ, and 2013–2016 Scion FR-S models. Installation is straightforward, with all necessary components included to support either single or dual fuel pump setups. Some parts may remain unused depending on your configuration.
Single fuel pump installations can reuse the OEM fuel pump controller wiring; however, Radium Engineering recommends upgrading the wiring harness to ensure pumps receive full current for optimal performance. No cutting, drilling, or special tuning is required for installation.
What's Included:
- Anodized aluminum collector box with integrated 1-way fill valve
- 8AN ORB to 8AN male pump-out fitting
- 6AN ORB to 6AN male return fitting
- High-current anti-rotation electrical terminals
- Stainless steel hardware and clamps
- OEM fuel level sender mount
- Installation guide
- Components to support one or two fuel pumps (some parts may not be used depending on setup)
Ideal For:
- Performance enthusiasts upgrading fuel delivery on Toyota 86, Subaru BRZ, and Scion FR-S
- Track and street drivers requiring reliable high-flow fuel pump support
- Users running brushless or high-capacity aftermarket fuel pumps
- Tuners needing to maintain OEM fuel level sender functionality while upgrading fuel system
- Those seeking a durable, easy-to-install fuel pump solution with improved fuel starvation prevention
