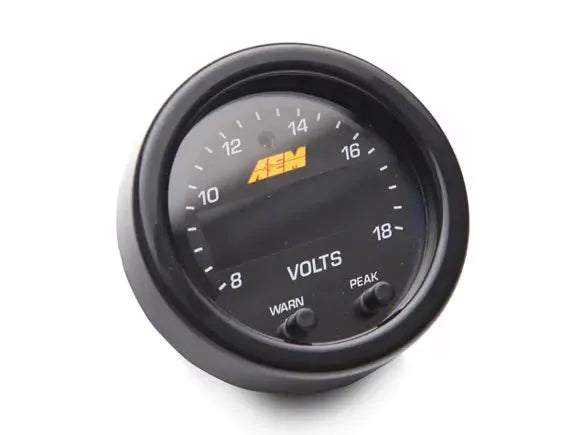

AEM X-Series Voltage Gauge Kit
Fits Most Vehicle Models (8-18 Volts)
30-0303
Overview:
The AEM X-Series Digital Voltmeter Gauge Kit offers precise and reliable voltage monitoring in a sleek, modern digital package. Designed for automotive enthusiasts and professional tuners alike, this gauge provides clear, real-time voltage readings to help you keep your vehicle’s electrical system in check. Its compact size and advanced features make it an ideal addition to virtually any vehicle, enhancing your ability to monitor system health with confidence.
Whether you are tracking battery performance, alternator output, or overall electrical system stability, this gauge delivers accurate data with exceptional readability and ease of use. The AEM X-Series Voltage Gauge Kit is engineered to fit most standard gauge pods, making installation straightforward and adaptable to a wide range of applications.
Key Features:
This voltage gauge combines innovative technology with user-friendly design to provide a versatile monitoring solution:

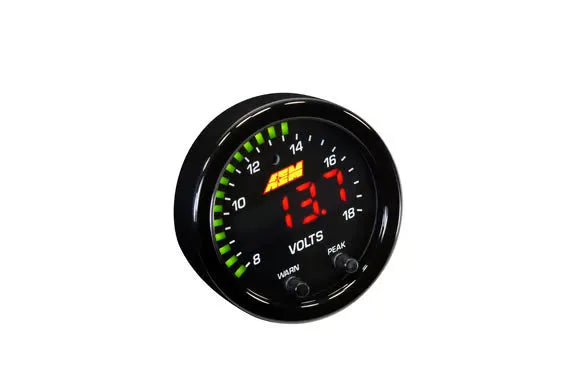

- Highly Readable Display: Features a bright center LED display that is 87% larger than previous AEM gauges, paired with a sweeping green LED “needle” and a 33% larger gauge face for quick voltage reference at a glance.
- Compact & Easy to Mount: Standard 2-1/16" (52mm) diameter housing fits most gauge pods, with an ultra-slim overall depth of 0.825" (cup depth 0.200") allowing installation in tight spaces.
- Advanced User Interface: Two faceplate buttons enable easy programming of peak and recall voltage readings, giving you control over monitoring parameters.
- AEMnet CANbus Enabled: Seamlessly integrates with AEM’s Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or any compatible engine management system or data logger.
- 0-5V Analog Output: Provides an analog signal output for data logging or integration with engine management systems.
- Quick Voltage Reference: 24 green outer LEDs offer immediate visual feedback on system voltage status.
- Auto-Dimming: Built-in ambient light sensor automatically adjusts display brightness for optimal visibility in all lighting conditions.
- Secure & Reliable Connection: Positive locking connector ensures a stable and vibration-resistant electrical connection.
- Optional Customization: Available separately, a silver bezel with white faceplate accessory kit allows you to tailor the gauge’s appearance to your vehicle’s interior.
Construction & Design:
The AEM X-Series Voltage Gauge features a precision-engineered housing with a durable, compact design that fits standard 52mm gauge pods. Its ultra-slim depth profile allows installation in tight dashboard or gauge cluster locations without sacrificing visibility or functionality. The programmable LED display with sweeping needle combines modern digital clarity with classic gauge aesthetics, enhancing both form and function.
Designed for durability and ease of use, the gauge’s positive locking connector and robust construction ensure long-lasting performance even in demanding automotive environments.
Installation & Fitment:
This voltage gauge kit is designed to fit most vehicles with standard 2-1/16" (52mm) gauge pods, making it a versatile choice for a wide range of applications. Its slim profile allows mounting in tight spaces where traditional gauges may not fit. The gauge integrates easily with AEMnet CANbus systems and includes a 0-5V analog output for compatibility with various engine management and data logging setups.
No cutting, drilling, or special tuning is required for installation, making it a straightforward upgrade for enthusiasts and professionals alike.
- Fits most standard 2-1/16" (52mm) gauge pods
- Compact depth allows flexible mounting options
- Compatible with AEMnet CANbus and analog output systems
- Plug-and-play installation with positive locking connector

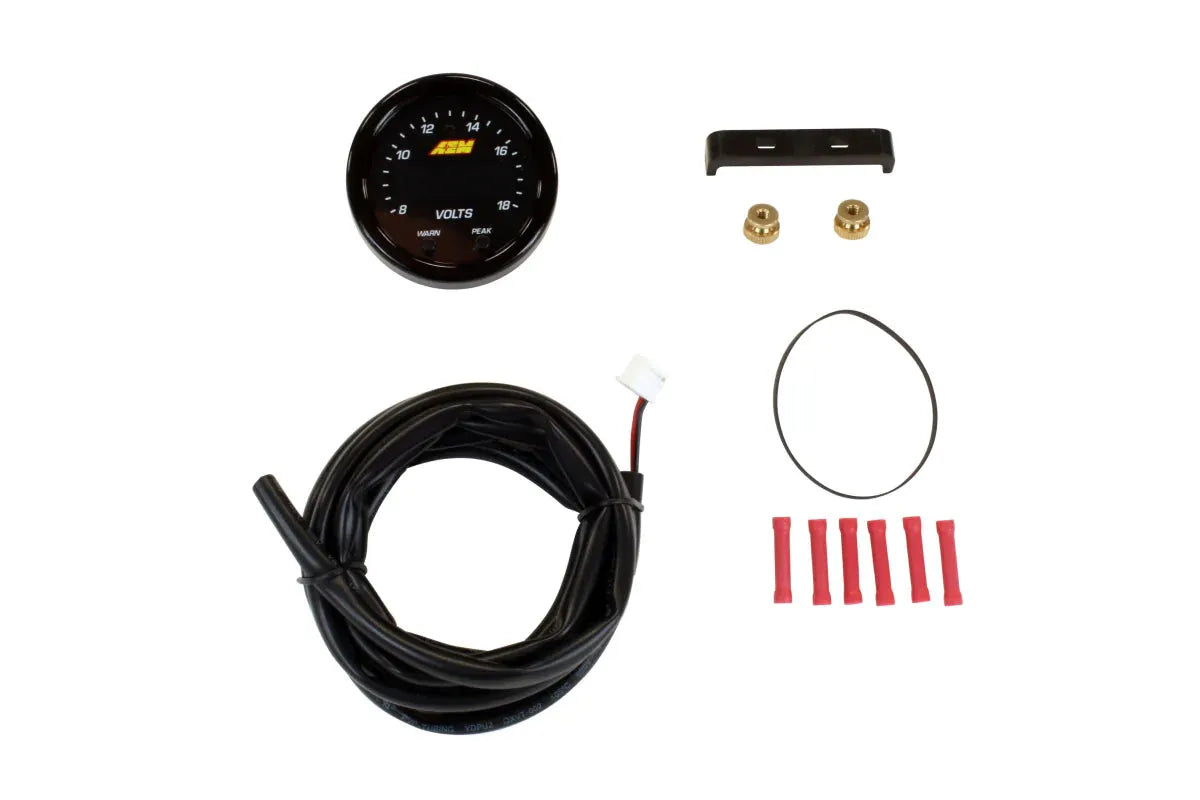

What's Included:
- AEM X-Series Digital Voltmeter Gauge (2-1/16" diameter)
- Wiring harness with positive locking connector
- Installation instructions
Ideal For:
This voltage gauge kit is perfect for automotive enthusiasts, professional tuners, and anyone who requires accurate, real-time monitoring of their vehicle’s electrical system. It is especially useful for those running high-performance or modified vehicles where electrical system stability is critical. Whether you are tracking battery health, alternator output, or overall system voltage, this gauge provides the data you need to maintain optimal performance and reliability.
