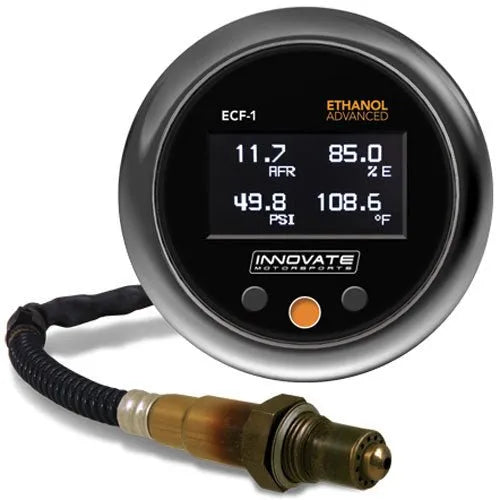

Innovate Motorsports ECF-1 Ethanol Advanced Gauge Kit
Universal Fitment – Fits Most Models
3910
Overview:
The Innovate Motorsports ECF-1 Ethanol Advanced Gauge Kit is a comprehensive four-in-one gauge designed to monitor critical fuel and air parameters for vehicles running ethanol blends, especially high-boost E-85 setups. This advanced gauge provides real-time readings of ethanol content percentage, fuel temperature, fuel pressure, and wideband air/fuel ratio (AFR), helping you maintain optimal engine performance and avoid costly damage caused by inconsistent ethanol blends.
Ideal for performance enthusiasts and racers who rely on ethanol fuel, the ECF-1 ensures you stay informed about your fuel quality and engine conditions without the guesswork. Its user-friendly OLED display offers configurable viewing modes, making it easy to monitor vital data at a glance while driving.
Key Features:
This innovative gauge combines multiple critical measurements into a single, compact 52mm unit, delivering precise and actionable information for ethanol-fueled vehicles.
- Four-in-one functionality: ethanol content percentage, fuel temperature, fuel pressure, and wideband air/fuel ratio.
- OLED user-configurable display with 1 to 4 open viewing modes for customizable data presentation.
- Ethanol content measurement range: 0V = 0% to 5V = 100% ethanol concentration.
- Fuel temperature range: -40°F to 257°F (-40°C to 125°C) for accurate thermal monitoring.
- Fuel pressure range: 0 to 145 PSI (0 to 10 BAR) to track fuel system health under boost.
- Wideband AFR range: 7.35 to 22.39 AFR (0.50 to 1.52 Lambda) for precise air/fuel ratio tuning.
- Compact 52mm gauge size fits most standard gauge pods and dashboards.
- No PC required for configuration, allowing quick setup and adjustments directly on the gauge.
- Designed to help prevent engine damage by alerting you to low ethanol content or improper AFR under boost conditions.
Construction & Design:
The ECF-1 features a durable and compact design optimized for easy installation and clear visibility. Its bright OLED display provides crisp, high-contrast readings in various lighting conditions. The gauge’s electronics are engineered for reliable operation in demanding automotive environments, ensuring consistent performance during spirited driving or racing.
Its 52mm size allows for seamless integration into most aftermarket gauge pods or factory dashboards, making it a versatile choice for a wide range of vehicles running ethanol blends.
Installation & Fitment:
The Innovate Motorsports ECF-1 Ethanol Advanced Gauge Kit fits most vehicle models and can be installed in any standard 52mm gauge mounting location. It is designed for straightforward integration with existing fuel and wideband sensor systems.
Please note that this kit does not include the ethanol sensor itself, which must be purchased separately. No special software or PC connection is required for configuration, simplifying the setup process.
What's Included:
- ECF-1 four-in-one gauge unit (ethanol content, fuel temperature, fuel pressure, wideband AFR)
- Wiring harness and connectors for sensor inputs
- Mounting hardware and instructions for installation
Ideal For:
- Performance enthusiasts running high-boost E-85 or ethanol blends
- Racers who require precise fuel and air monitoring to protect their engines
- Drivers seeking to optimize air/fuel ratios and fuel system parameters under boost
- Anyone using ethanol fuel who wants to avoid engine damage from inconsistent blends
