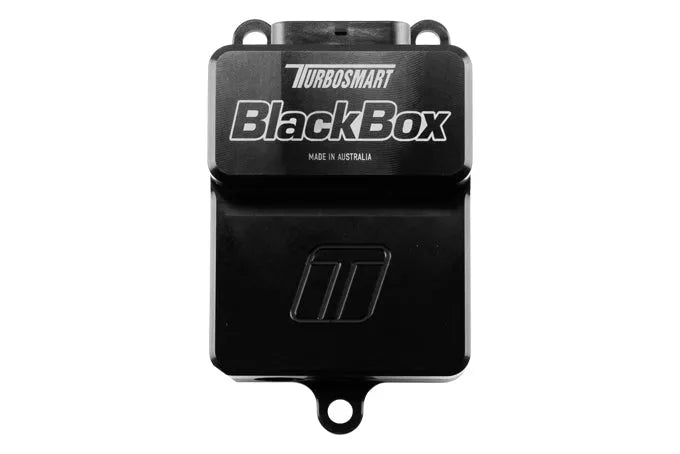

Turbosmart BlackBox Electronic Wastegate Controller
Fits Most Models
TS-0305-1001
Overview:
The Turbosmart BlackBox is a dedicated electronic wastegate controller designed to provide precise and reliable boost control for a wide range of vehicles. Compatible with most factory, aftermarket, and Motorsport ECUs, this controller translates various boost control strategies into accurate wastegate valve positioning. Whether you run a single or twin electronic wastegate setup, the BlackBox offers advanced control capabilities to optimize your turbocharged engine’s performance.
Engineered for performance enthusiasts and tuners seeking ultimate boost management, the BlackBox supports multiple input types and control methods, ensuring seamless integration with your vehicle’s existing systems. Its robust design and intelligent features help protect your wastegate and turbo system while delivering consistent, responsive boost control.
Key Features:
The Turbosmart BlackBox combines advanced electronics and user-friendly calibration to deliver precise boost control for electronic external wastegates. Key features include:
- Dual Channel High Current H-Bridge Outputs for controlling two electronic wastegates simultaneously
- Supports Turbosmart Electronic External Wastegates including StraightGate50, CompGate40, HyperGate45, ProGate50, and PowerGate60
- Accepts multiple input signals: PWM (Pulse Width Modulation), 0-5V analog position target, CAN bus position demand, and CAN bus valve area target
- Factory-loaded PID calibration data for all Turbosmart electronic gates for accurate and reliable boost control out of the box
- Auto position calibration via full sweep for easy setup and precise valve positioning
- Internal over-current and over-temperature protection to safeguard the controller and wastegate actuators
- Two wastegate valve position inputs and two temperature sensor inputs (0-5V) for real-time monitoring and safety
- Frequency inputs for advanced wastegate position encoder feedback
- CAN bus programmable PID mode option allows unlimited control strategies limited only by your ECU’s capability
- Durable anodized aluminum housing with a 34-pin Superseal connector for reliable connections and long-lasting performance
- Simple USB connection and PC-based application for easy configuration and tuning adjustments

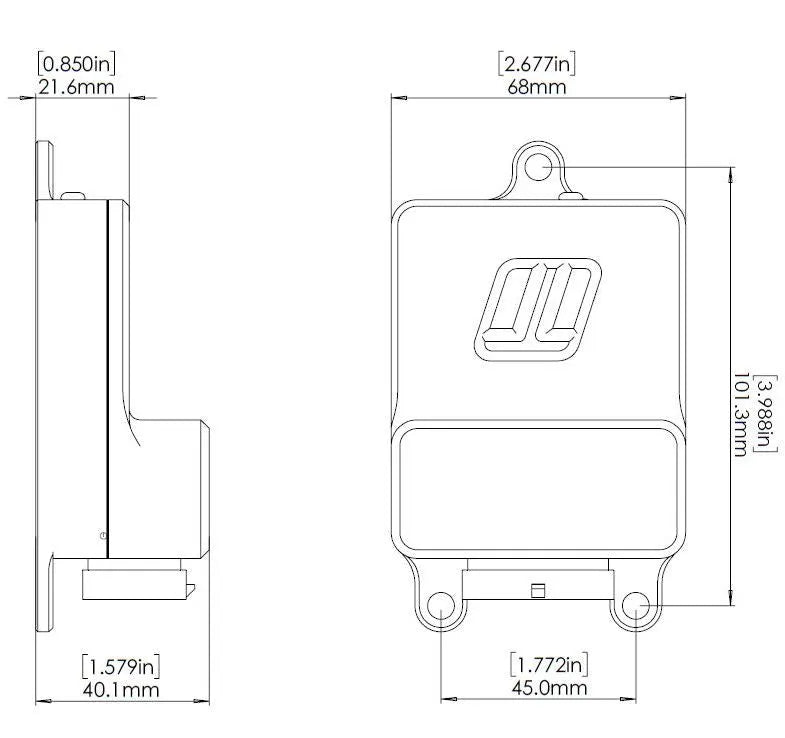

Construction & Design:
The BlackBox features a rugged anodized aluminum housing that provides excellent durability and heat resistance, ensuring reliable operation in demanding engine bay environments. Its compact design incorporates a 34-pin Superseal connector for secure and weatherproof electrical connections. The internal electronics include a dual-channel H-Bridge driver capable of handling high current demands from electronic wastegate actuators, making it suitable for both single and twin wastegate setups.
Designed with advanced control in mind, the BlackBox supports multiple input types and communication protocols, allowing it to integrate seamlessly with a variety of ECUs and boost control strategies. The inclusion of temperature sensor inputs and internal protection circuits enhances system safety and longevity.
Installation & Fitment:
The Turbosmart BlackBox is engineered to fit most vehicles equipped with electronic external wastegates, making it a versatile choice for a wide range of turbocharged applications. It is compatible with Turbosmart’s full range of electronic wastegates and can be used with various factory and aftermarket ECUs.
Installation requires connecting the BlackBox to your wastegate actuators, sensors, and ECU. The controller comes with detailed installation instructions to guide you through setup and calibration. No cutting or drilling is required, and the USB interface allows for straightforward configuration and tuning adjustments.
- Compatible with single or twin electronic wastegate systems
- Plug-and-play integration with Turbosmart electronic wastegates
- Supports multiple ECU communication protocols including PWM and CAN bus
- Includes auto-calibration feature for quick and accurate setup
What's Included:
- Turbosmart BlackBox electronic wastegate controller unit
- 34-pin Superseal connector
- Installation instructions
Ideal For:
The BlackBox is ideal for performance enthusiasts, tuners, and motorsport competitors who demand precise and reliable boost control from their electronic wastegate systems. It suits vehicles equipped with Turbosmart electronic external wastegates and those requiring advanced boost control strategies beyond traditional solenoid-based systems. Whether you are upgrading your factory boost control or building a custom turbo setup, the BlackBox offers the flexibility and control needed for optimal turbocharger performance.
