DeatschWerks X2 Series Pump Module
2012–2016 Scion FR-S, 2012–2020 Subaru BRZ, 2017–2020 Toyota 86
6-617
Overview:
The DeatschWerks X2 Series Pump Module CPE Plumbing Kit is a precision-engineered fuel system upgrade designed specifically for the Scion FR-S (2012–2016), Subaru BRZ (2012–2020), and Toyota 86 (2017–2020). This kit features an -8AN feed line and a -6AN return line, providing optimal fuel delivery and return flow for high-performance applications. Ideal for enthusiasts looking to enhance fuel system reliability and support increased power levels, this plumbing kit ensures consistent fuel pressure and flow under demanding driving conditions.
Whether you are upgrading your fuel pump or building a high-output engine, the DeatschWerks X2 Series Pump Module Plumbing Kit offers a direct-fit solution that simplifies installation while maintaining OEM-level quality and durability.
Key Features:
Designed with performance and reliability in mind, the DeatschWerks X2 Series Pump Module Plumbing Kit includes the following key features:
- Specifically engineered for Scion FR-S (2012–2016), Subaru BRZ (2012–2020), and Toyota 86 (2017–2020) models
- 8AN feed line for increased fuel flow capacity
- 6AN return line to maintain proper fuel pressure and system balance
- Complete CPE (Custom Performance Engineering) plumbing kit for seamless integration
- High-quality fittings and durable braided lines for long-lasting performance
- Direct-fit design reduces installation time and complexity
- Compatible with DeatschWerks X2 Series fuel pump modules and other aftermarket fuel system components
- Supports high horsepower builds and track-focused applications
Construction & Design:
The plumbing kit is constructed using premium materials engineered to withstand the rigors of high-performance fuel delivery. Braided stainless steel lines provide superior resistance to abrasion, heat, and pressure, ensuring durability and safety. The AN fittings are precision-machined from corrosion-resistant aluminum, offering secure, leak-free connections. The design emphasizes both form and function, delivering a clean, professional installation that integrates seamlessly with the vehicle’s existing fuel system architecture.
Installation & Fitment:
This plumbing kit is designed for direct fitment on the specified Scion FR-S, Subaru BRZ, and Toyota 86 models, requiring minimal modifications. Installation is straightforward for experienced technicians and enthusiasts familiar with fuel system upgrades. The kit includes all necessary lines and fittings to connect the DeatschWerks X2 Series Pump Module, ensuring a reliable and professional setup. Proper installation helps maintain fuel system integrity and supports consistent engine performance.

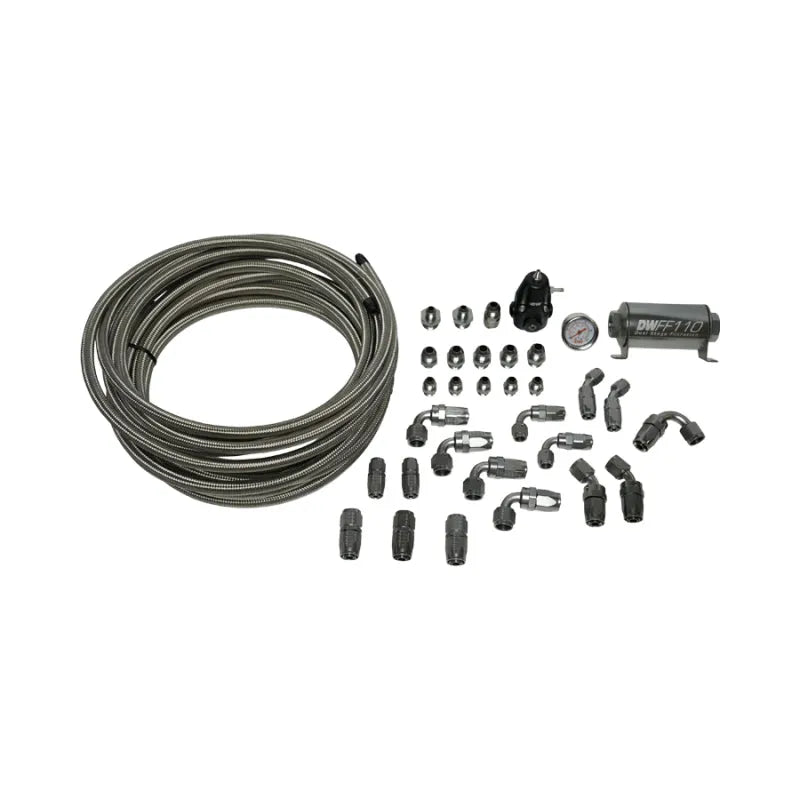

What's Included:
- 8AN fuel feed line
- 6AN fuel return line
- High-quality AN fittings
- Custom performance engineered plumbing components
- Installation hardware and instructions
Ideal For:
This plumbing kit is ideal for automotive enthusiasts and tuners upgrading their fuel system on the Scion FR-S, Subaru BRZ, or Toyota 86. It is especially suited for those increasing horsepower through forced induction or engine modifications that demand higher fuel flow rates. Track day drivers, weekend racers, and performance street car owners will benefit from the enhanced fuel delivery reliability and ease of installation provided by this kit.
