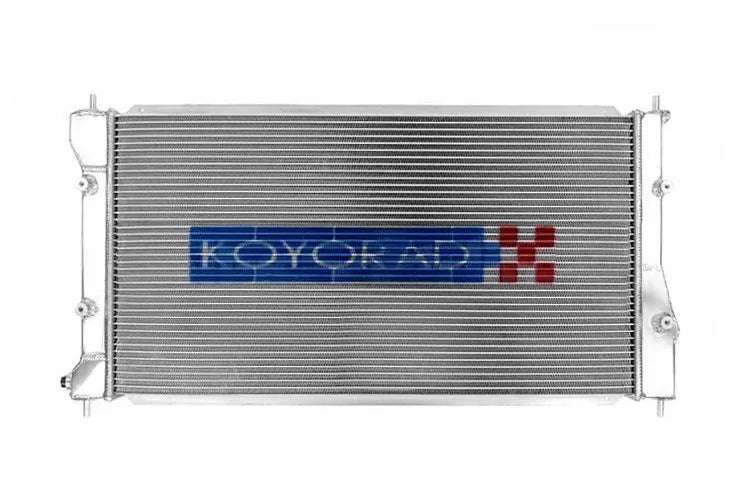

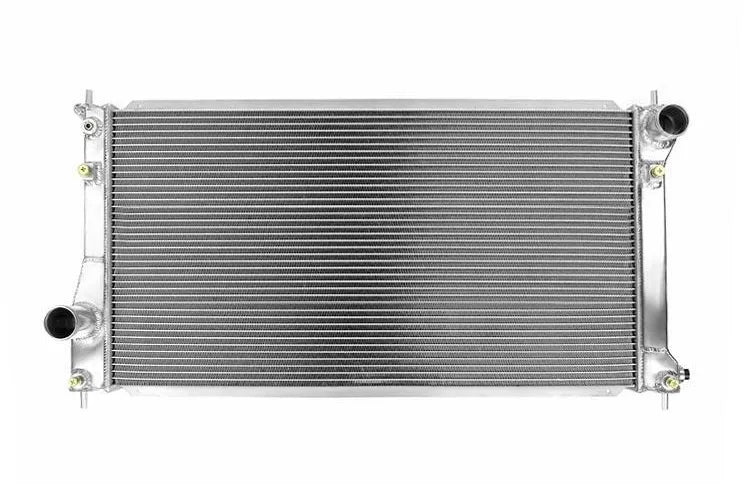

Koyo Aluminum Radiator

2013–2016 Scion FR-S, 2017–2020 Toyota 86, 2013–2020 Subaru BRZ

VH012664N

Overview:

The Koyo Aluminum Radiator is a premium cooling solution designed specifically for the Scion FR-S (2013–2016), Toyota 86 (2017–2020), and Subaru BRZ (2013–2020). Engineered to replace the factory plastic/aluminum radiator, this direct-fit upgrade enhances your vehicle’s cooling efficiency, ensuring optimal engine temperatures under demanding driving conditions. Whether you drive a manual or automatic transmission model, this radiator fits seamlessly and offers improved heat dissipation for both daily driving and spirited performance use.

Ideal for enthusiasts looking to upgrade their cooling system, the Koyo radiator features a robust 36mm "VH" Series core that maximizes heat transfer, helping to prevent overheating during aggressive driving, track days, or when running forced induction or nitrous oxide setups.

Key Features:

Designed with precision and quality in mind, the Koyo Aluminum Radiator offers the following benefits:

• 36mm "VH" Series radiator core for superior heat transfer and cooling capacity
• Direct-fit replacement for stock radiator with no modifications required
• Compatible with both automatic and manual transmission models
• Fully polished aluminum finish for corrosion resistance and aesthetic appeal
• 1/8" NPT female accessory fitting included for aftermarket temperature sensors or gauges
• Provides 20% to 30% more cooling efficiency compared to standard OEM radiators
• Ideal for naturally aspirated, turbocharged, supercharged, and nitrous oxide-equipped engines
• Constructed from aircraft-quality aluminum with hand TIG welding and Nocolok brazing
• Bolts directly to the factory fan shroud for quick and easy installation

Construction & Design:

Koyo radiators are manufactured in privately owned facilities in Japan, allowing strict quality control throughout the entire production process. Each radiator core is hand-assembled using the highest grade aluminum, then Nocolok brazed and TIG welded by skilled technicians to ensure durability and leak-free performance. The all-aluminum construction not only reduces weight compared to traditional plastic tanks but also improves thermal conductivity, resulting in faster and more efficient heat dissipation.

The polished mirror finish not only enhances corrosion resistance but also adds a clean, professional look under the hood. The integrated accessory fitting provides flexibility for enthusiasts who want to monitor coolant temperatures with aftermarket gauges.

Installation & Fitment:

This Koyo Aluminum Radiator is designed as a direct-fit replacement for the Scion FR-S (2013–2016), Toyota 86 (2017–2020), and Subaru BRZ (2013–2020), fitting both automatic and manual transmission variants. It mounts directly to the factory fan shroud and uses existing mounting points, making installation straightforward without the need for modifications or additional brackets.

Installation can typically be completed with basic hand tools and standard mechanical knowledge. The included accessory fitting allows easy integration of temperature sensors if desired.

What's Included:

• Koyo Aluminum Radiator with 36mm VH Series core
• Threaded plug for 1/8" NPT accessory fitting
• Installation hardware not included (uses factory mounting points)

Ideal For:

This radiator is perfect for performance enthusiasts and daily drivers alike who want to improve cooling efficiency and reliability. It is especially beneficial for those who:

• Drive their Scion FR-S, Toyota 86, or Subaru BRZ aggressively or on the track
• Have upgraded their engine with forced induction or nitrous oxide
• Experience overheating issues with the stock radiator under heavy load
• Seek a durable, high-quality replacement radiator with OEM fitment
• Want to add coolant temperature monitoring capabilities

Koyorad (Koyo) builds cooling system upgrades, including application-specific aluminum performance radiators designed to improve heat rejection for hard-driven street and track vehicles. It’s a trusted choice for boosted and high-revving builds where controlling coolant temps is critical to consistent power and reliability.
