AEM X-Series Boost Gauge
Universal Fitment for Most Models
30-0306
Overview:
The AEM X-Series Digital Boost Display Gauge is a precision instrument designed to deliver accurate boost and vacuum pressure readings with exceptional clarity and style. Perfect for performance enthusiasts and tuners, this gauge provides real-time data essential for monitoring turbocharged or supercharged engines. Whether you are a daily driver or a track-focused enthusiast, the X-Series gauge offers quick response and easy integration to help you maintain optimal engine performance and protect your investment.
With its compact size and advanced display technology, the gauge fits seamlessly into most vehicles, providing a clean and professional look without sacrificing functionality. You'll get reliable boost monitoring that enhances your driving experience and engine management capabilities.
Key Features:
The AEM X-Series Boost Gauge combines innovative design with user-friendly features to deliver precise and accessible boost pressure monitoring.
- Wide measurement range from -30 in/Hg vacuum to 35 PSI boost (-1 to 2.5 BAR), suitable for most forced induction setups.
- Compact 52mm (2-1/16”) gauge size fits standard gauge pods for versatile mounting options.
- Ultra-slim overall depth of 0.825" (0.200" cup depth) allows installation in tight spaces without compromising dashboard aesthetics.

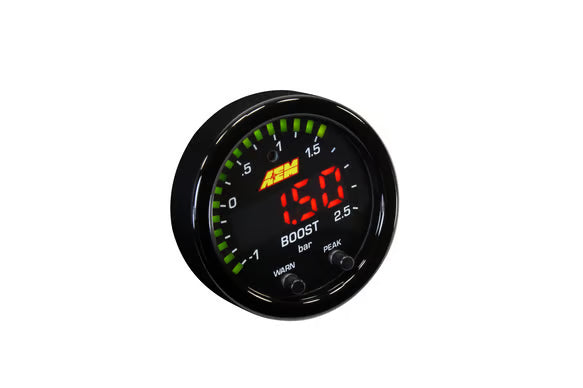

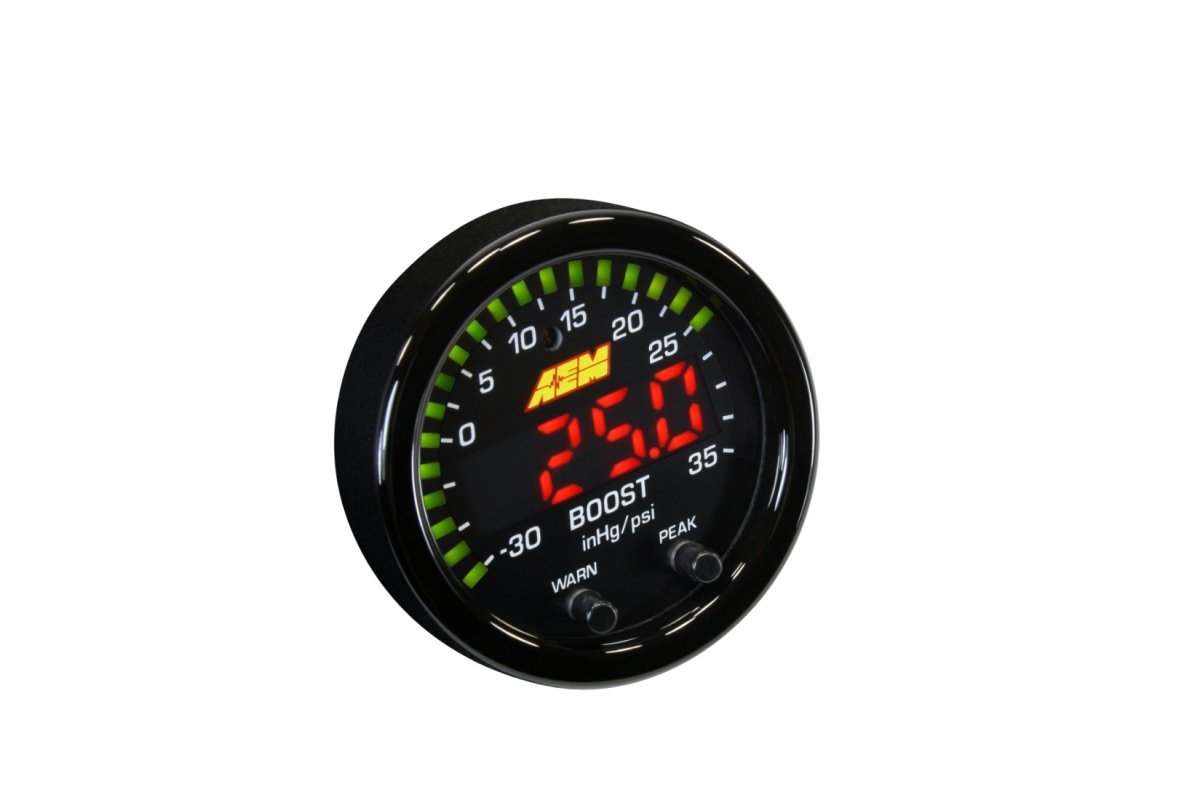

- Next-generation display technology with an 87% larger center LED readout for superior visibility in all lighting conditions.
- Sweeping green LED needle provides instant visual reference of boost levels alongside the digital readout.
- User-programmable functions including peak/recall readings, threshold warnings, and selectable PSI or BAR display modes.
- AEMnet CAN-bus enabled for seamless data output to AEM or compatible third-party engine management systems and data loggers.
- Analog 0–5V output signal supports external data logging or engine management inputs.
- Built-in auto-dimming sensor automatically adjusts brightness for optimal daytime and nighttime visibility.
- Durable black bezel included with reversible black PSI/BAR faceplate; optional accessory kit available for silver bezel and white faceplate.
Construction & Design:
The X-Series Boost Gauge features an advanced single-board design that minimizes depth while enhancing reliability and durability. Its compact 52mm housing is engineered for easy installation in standard gauge pods or custom mounting locations. The slim profile ensures it fits comfortably in most dashboards without protruding excessively.
Dual front-face buttons provide intuitive control, allowing you to quickly program warning thresholds, recall peak boost values, or switch between measurement units without removing the gauge or accessing complicated menus. The high-contrast LED display and sweeping needle combine modern digital precision with classic analog readability.
Installation & Fitment:
This boost gauge is designed for universal fitment and can be installed in most vehicles equipped with forced induction systems. Its 52mm size fits standard gauge pods, making it compatible with a wide range of mounting options. The slim depth allows flexible placement in tight dashboard spaces or custom panels.
No cutting, drilling, or special tuning is required for installation, making it a straightforward upgrade for enthusiasts seeking accurate boost monitoring. The gauge’s AEMnet CAN-bus connectivity enables easy integration with compatible engine management systems and data loggers for enhanced tuning and data analysis.

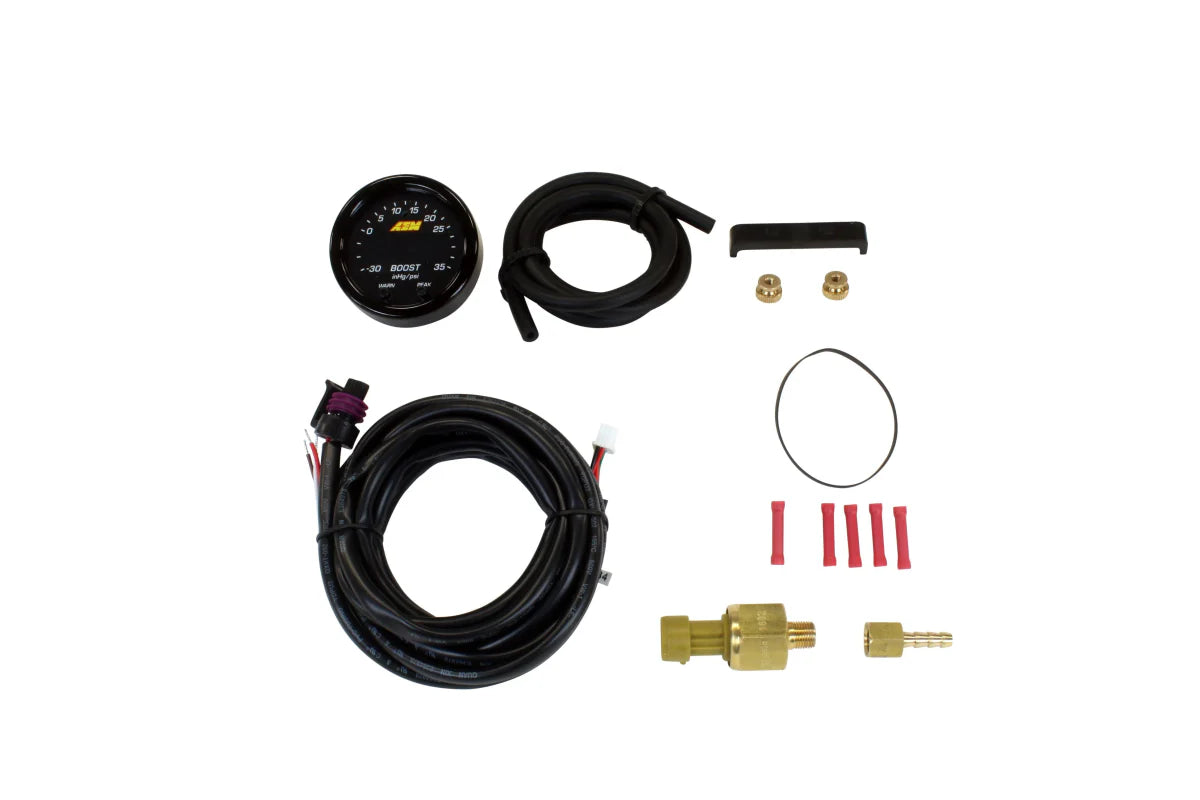

What's Included:
- AEM X-Series Boost Gauge with black bezel
- Reversible black PSI/BAR faceplate
- Installation instructions
Ideal For:
- Performance enthusiasts requiring precise boost and vacuum monitoring
- Turbocharged or supercharged vehicles needing reliable, real-time data
- Daily drivers and track users who want clear, easy-to-read boost information
- Tuners and engine builders integrating boost data with EMS or data logging systems
- Anyone seeking a compact, stylish gauge with advanced display technology and user programmability
