DBA 5000 Series 2pc Slotted Front Brake Rotor (Black Hat)

13-16 Scion FRS

13-25 Subaru BRZ

17-20 Toyota 86

22-26 Toyota GR86

DBA5010BLKS

*SOLD INDIVIDUALLY, PURCHASE QUANTITY (2) FOR BOTH SIDES

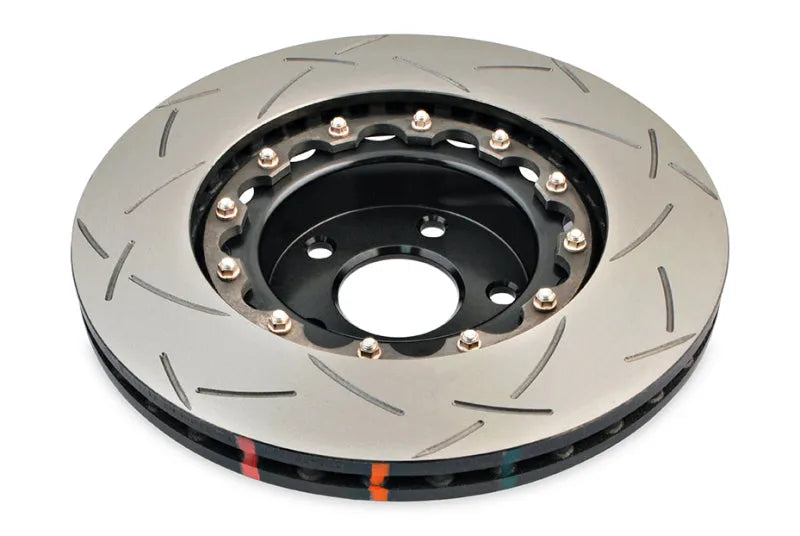

DBA 5000 Series T3 rotors share all the same leading technology as our 4000 Series, but in a two-piece rotor. Featuring an aluminum hat for lighter weight, better heat dissipation and lower maintenance costs make for the perfect race rotor.

• The hat and its rings can be purchased together or separately for easy maintenance and repair.
• Slots and/or chamfered drill holes remove dust and gasses to enhance the pedal feel.

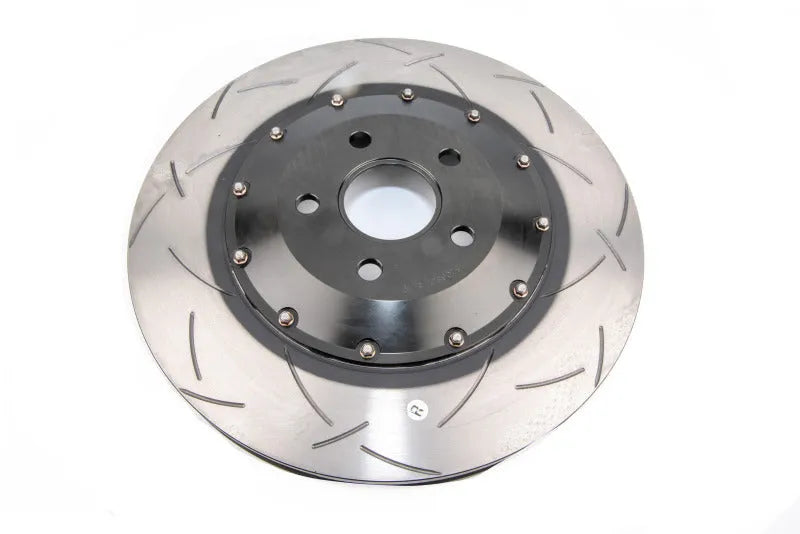

• Ultra-lightweight 6061 T6 aviation aluminum center hat/bell enhances vehicle control and minimizes hub heat.
• The aluminum hat is anodized to withstand rust and look better.
• The iron microstructure is realigned during the heat treatment cycles, making for a more stable and long-lasting rotor.

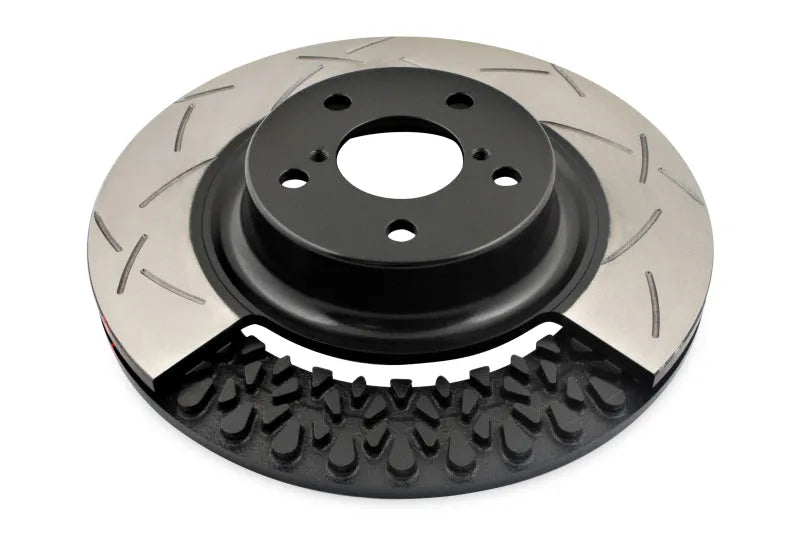

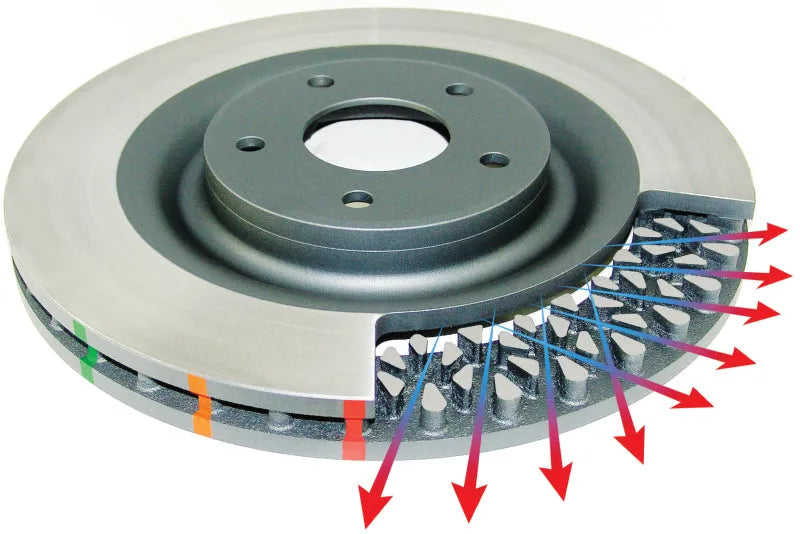

• Kangaroo Paw vane design extends brake life by 20%.

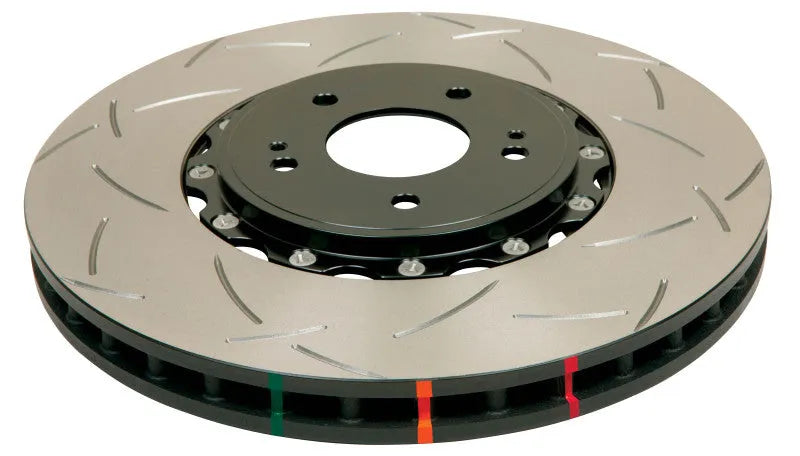

• Paint markings change color at varying temperature levels to indicate rotor fatigue.

Specifications

Package

• Height 3. in
• Width 15. in
• Length 15. in
• Weight 17 lbs

Attributes

• Recommended Use Performance
• Driving Qualifiers Performance Street, Street & Track Events, Towing-Oversized Tires, Extreme & Fleet Duty
• Budget High
• Rotor Style Slotted
• Rotor Coating Coated
• Rotor Treatment Non-Cryo Treated
• Rotor Material High Carbon
• Stopping Power 5 / 5
• Noise Level 1 / 5
• Performance Over Stock Racing

Details

• Part Name Disc Brake Rotor
• Center Hole Diameter 58 mm
• Discard Thickness 25 mm
• Nominal Thickness 25 mm
• Outside Diameter 295 mm
• Overall Height 57.5 mm
• Solid Or Vented Type Rotor Vented
• Stud/Lug Hole Quantity 5
• Surface Type Slotted

Manufacturer description

• Manufacturer Label F DBA 5000 S

DBA (Disc Brakes Australia) designs and produces aftermarket and OE-replacement braking components, with a strong reputation in performance brake rotors and related hardware. Their range covers rotors and complementary brake parts aimed at improving heat management, consistency, and stopping confidence for spirited street driving, towing, and track-day duty.
