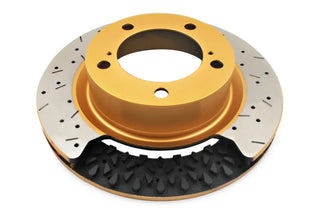

DBA 4000 Series Drilled & Slotted Front Brake Rotor

13-16 Scion FRS

13-25 Subaru BRZ

17-20 Toyota 86

22-26 Toyota GR86

DBA4650XS

*SOLD INDIVIDUALLY, PURCHASE QUANTITY (2) FOR BOTH SIDES

DBA's 4000 Series XS rotors feature our best technology & materials for maximum performance. High carbon & heat treated iron, patented Kangaroo Paw ventilation and a unique drill & slot pattern makes the perfect direct replacement rotor.

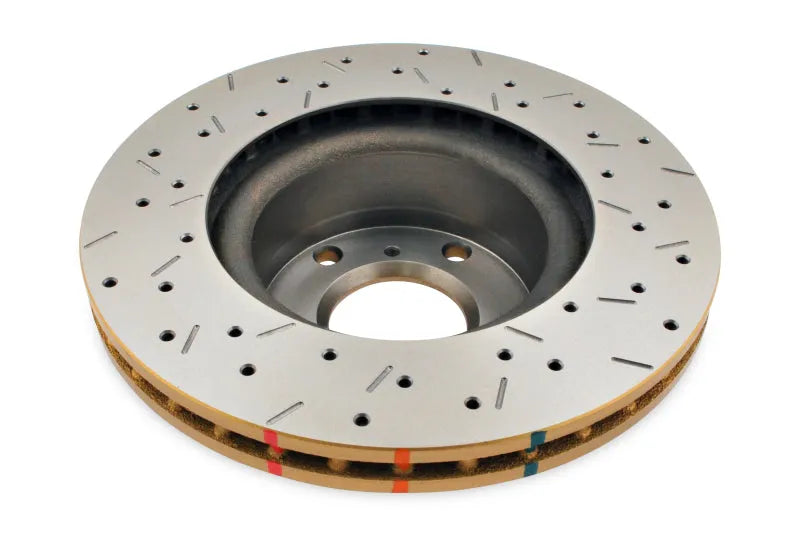

• Cross-drilled and slotted design improve braking power and consistency
• Increased number of out-gassing exit points allows brake pad friction gasses to escape through
• Proprietary XG-150 high carbon alloyed steel for superior heat dissipation

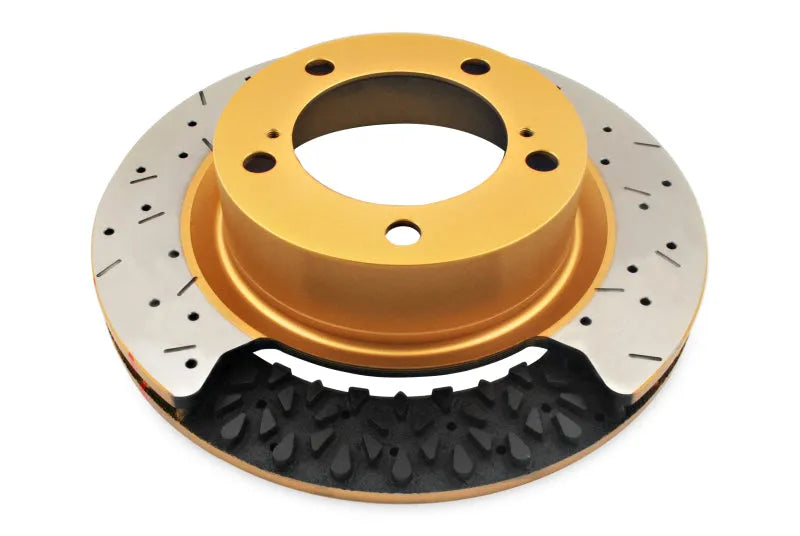

• Kangaroo Paw's 144 diamond and teardrop pillar ventilation system extends pad and rotor life. Reduces damage and expenses
• XG150 High Carbon Alloyed Iron; enhanced heat capacity allows the rotor to endure constant heat over time.
• Thermographic temperature monitoring helps drivers monitor rotor fatigue, replace rotors, and file warranty claims.
• Non-friction paint decreases rusting.
• Sold individually

Specifications

Package

• Height 3. in
• Width 13. in
• Length 13. in
• Weight 15 lbs

Attributes

• Recommended Use Performance
• Driving Qualifiers Performance Street
• Budget Medium
• Rotor Style Cross-Drilled & Slotted
• Rotor Coating Coated
• Rotor Treatment Non-Cryo Treated
• Rotor Material High Carbon
• Stopping Power 3 / 5
• Noise Level 1 / 5
• Performance Over Stock Street Performance

Details

• Part Name Disc Brake Rotor
• Center Hole Diameter 58 mm
• Discard Thickness 25 mm
• Nominal Thickness 25 mm
• Outside Diameter 295 mm
• Overall Height 58 mm
• Solid Or Vented Type Rotor Vented
• Stud/Lug Hole Quantity 5
• Surface Type Drilled Slotted

Manufacturer description

• Manufacturer Label F DBA 4000 XS

DBA (Disc Brakes Australia) designs and produces aftermarket and OE-replacement braking components, with a strong reputation in performance brake rotors and related hardware. Their range covers rotors and complementary brake parts aimed at improving heat management, consistency, and stopping confidence for spirited street driving, towing, and track-day duty.
