SPL Parts Adjustable Endlinks (FRONT)

2023–2026 Toyota GR Corolla

SPL FE E210

Overview:

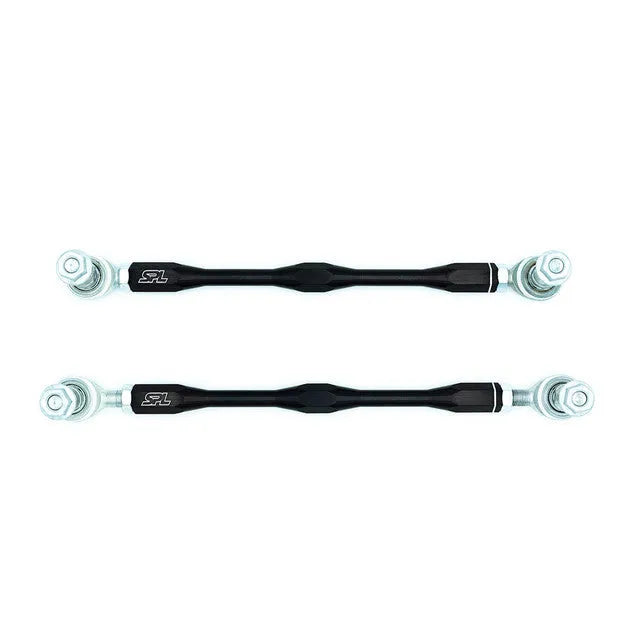

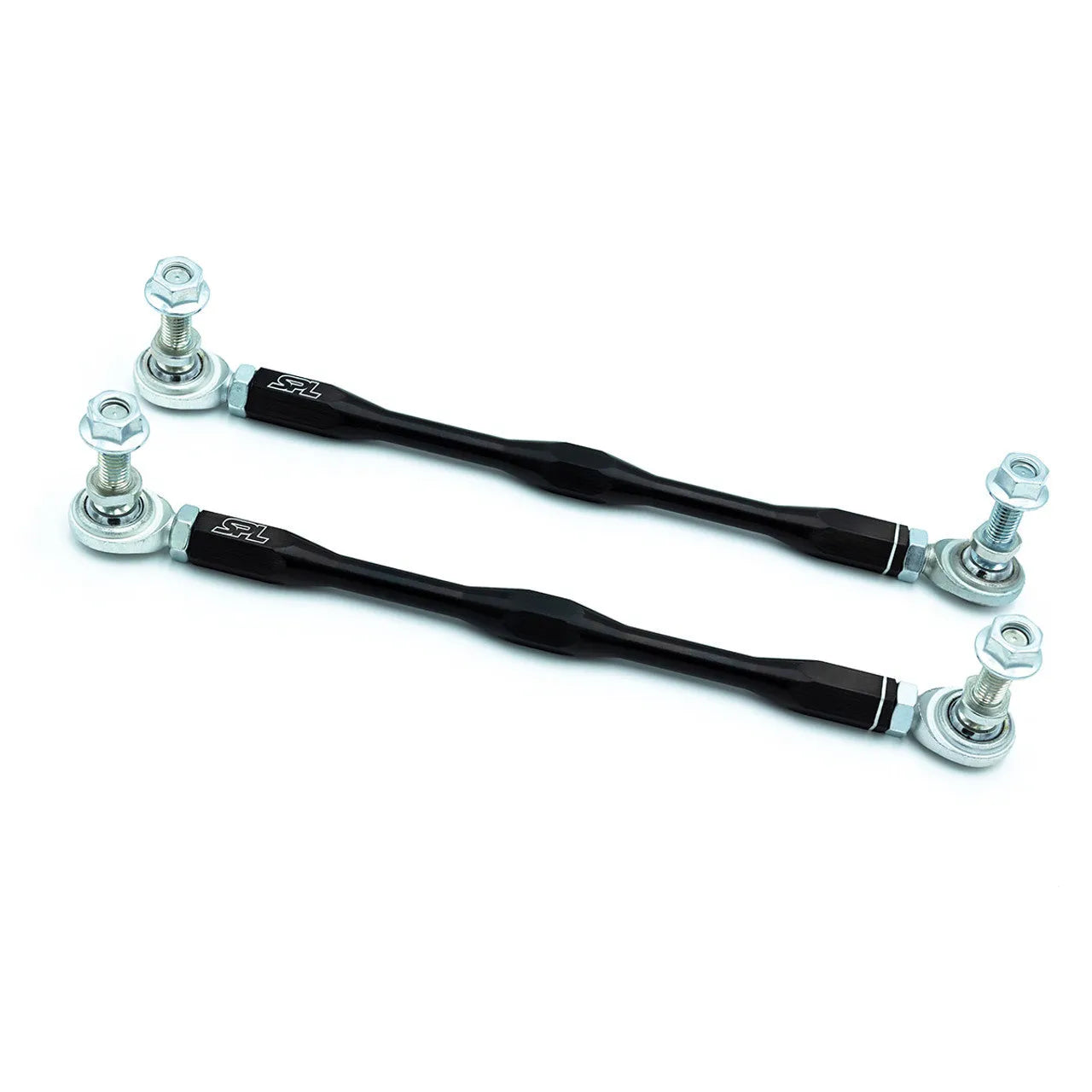

The SPL Parts Adjustable Front Endlinks are precision-engineered suspension components designed specifically for the 2023 and newer Toyota GR Corolla. These endlinks replace the factory rubber bushing design with high-performance spherical bearings, delivering improved sway bar response and enhanced handling characteristics. Ideal for enthusiasts seeking sharper cornering, better suspension tuning, and reduced sway bar preload, these endlinks offer a significant upgrade for both street-driven and track-focused GR Corolla owners.

By upgrading to SPL’s adjustable endlinks, you’ll gain more precise control over your vehicle’s rear sway bar behavior, resulting in more balanced handling and consistent performance through both right and left turns. Even stock vehicles benefit from eliminating unwanted sway bar preload, improving ride quality and suspension responsiveness.

Key Features:

These front adjustable endlinks incorporate advanced materials and design elements to maximize durability and performance:

• Constructed with 6061-T6 aluminum spacers for lightweight strength and corrosion resistance.
• Equipped with massive PTFE-lined FK 1/2" spherical bearings that provide high load capacity and smooth articulation.

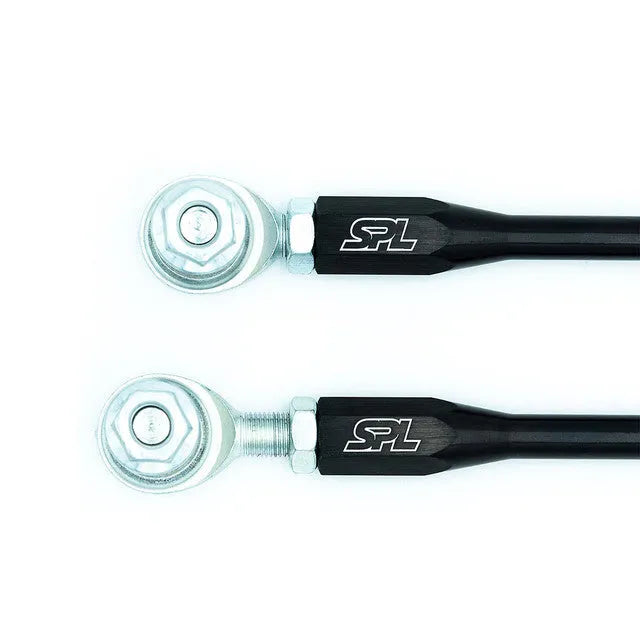

• Self-cleaning FK rod ends (F1 Spec) designed to maintain performance in harsh conditions.
• Custom heat-treated chromoly studs engineered for extreme articulation angles up to 65°, preventing binding during suspension travel.
• Adjustable length design allows precise elimination of sway bar preload and fine-tuning of bar angle.
• Improves rear suspension response by replacing OEM rubber bushings with spherical joints for more direct sway bar feedback.
• US-made components ensure high-quality manufacturing standards and reliability.

Construction & Design:

The SPL Parts adjustable endlinks feature a robust construction combining lightweight aluminum spacers with durable chromoly steel studs. The PTFE-lined FK bearings reduce friction and wear, providing smooth articulation and long service life. The design accommodates extreme misalignment angles, which is critical when paired with adjustable sway bars and ride-height adjustable coilovers. This prevents binding and ensures consistent suspension performance under dynamic driving conditions.

The adjustable length capability allows you to dial out unwanted preload on the sway bar, which commonly occurs when the vehicle is occupied or during suspension compression. This adjustability also enables optimal corner balancing and sway bar tuning, enhancing overall vehicle dynamics.

Installation & Fitment:

These endlinks are a direct fit for the front sway bar on 2023 and newer Toyota GR Corolla models. Installation uses existing mounting points and hardware, requiring no cutting, drilling, or special tuning. The adjustable design simplifies setup, allowing you to fine-tune sway bar preload and angle to suit your suspension setup and driving style.

• Direct bolt-on replacement for factory front sway bar endlinks.
• No modifications to the vehicle’s suspension or chassis required.
• Compatible with OEM and aftermarket adjustable sway bars and coilovers.

What's Included:

• One set of front adjustable endlinks for the Toyota GR Corolla (2023+)
• All necessary hardware for installation

Ideal For:

These adjustable endlinks are perfect for GR Corolla owners who want to:

• Enhance handling precision and reduce body roll during spirited driving.
• Optimize sway bar tuning and corner balance with adjustable suspension setups.
• Replace factory rubber bushings with durable, high-performance spherical bearings.
• Improve suspension response for both street and track use.
• Eliminate unwanted sway bar preload for a more consistent driving experience.

SPL Parts is a manufacturer specializing in high-performance suspension components, including control arms, toe links, and sway bar endlinks, primarily for vehicles like Nissan 350Z/370Z, GTR, BMW M-Series, Toyota Supra, and Subaru platforms. Their products are designed to enhance handling and stability for both street and track applications, offering adjustability and durability to meet the demands of performance enthusiasts.
