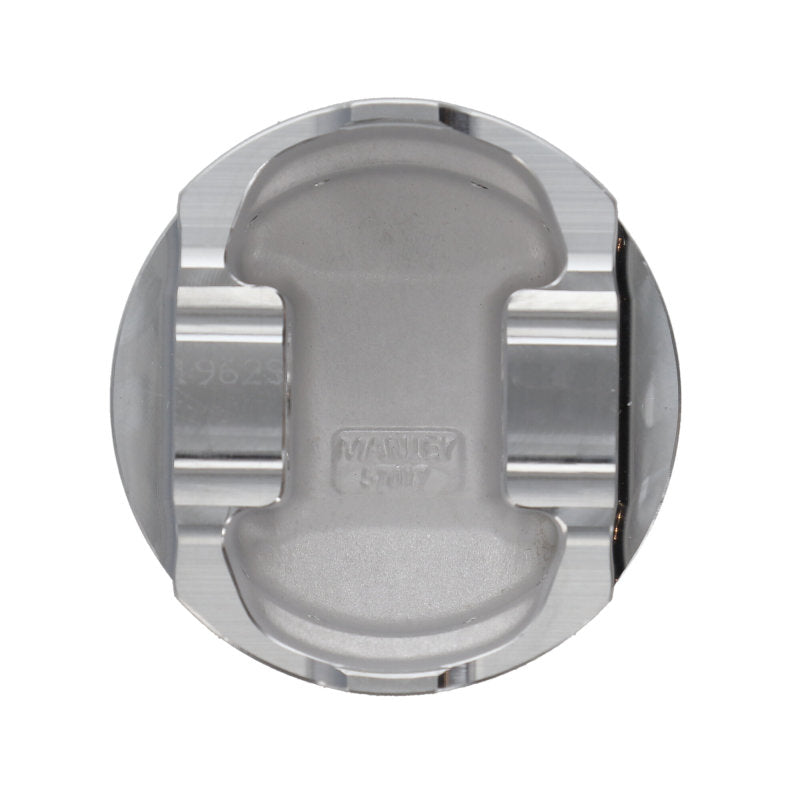

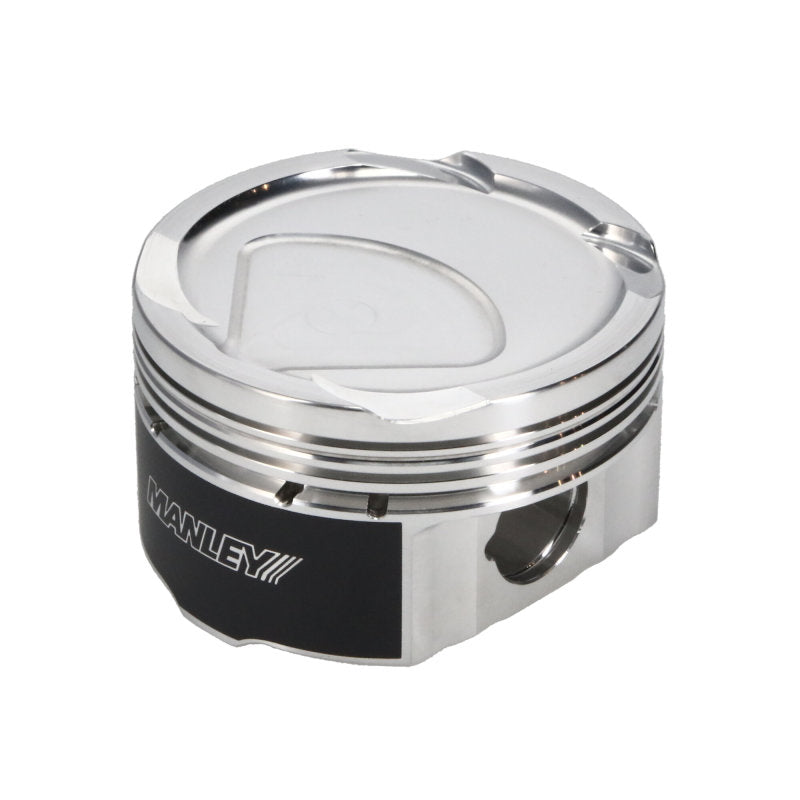

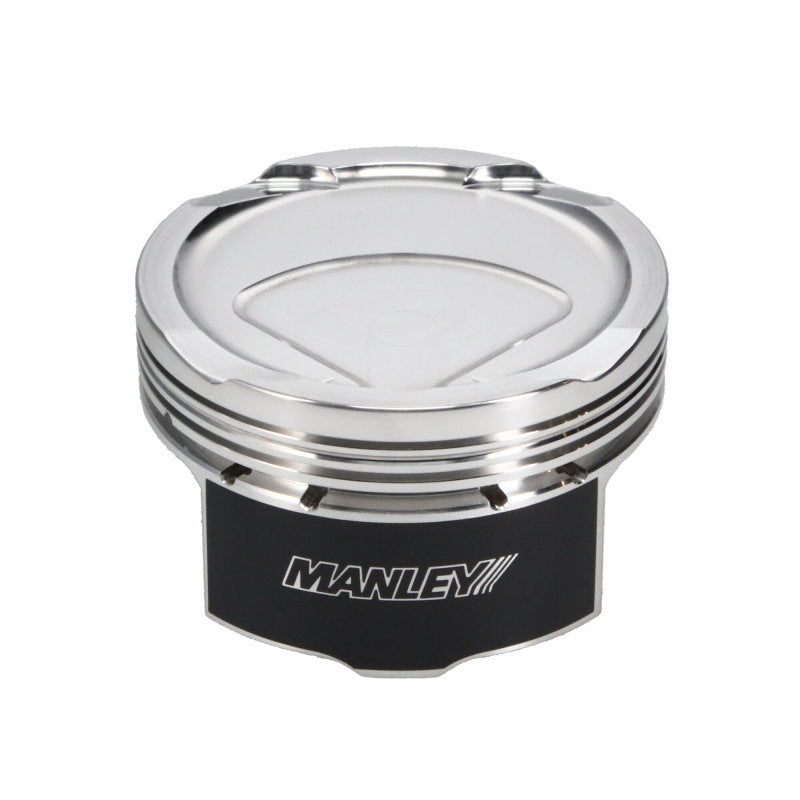

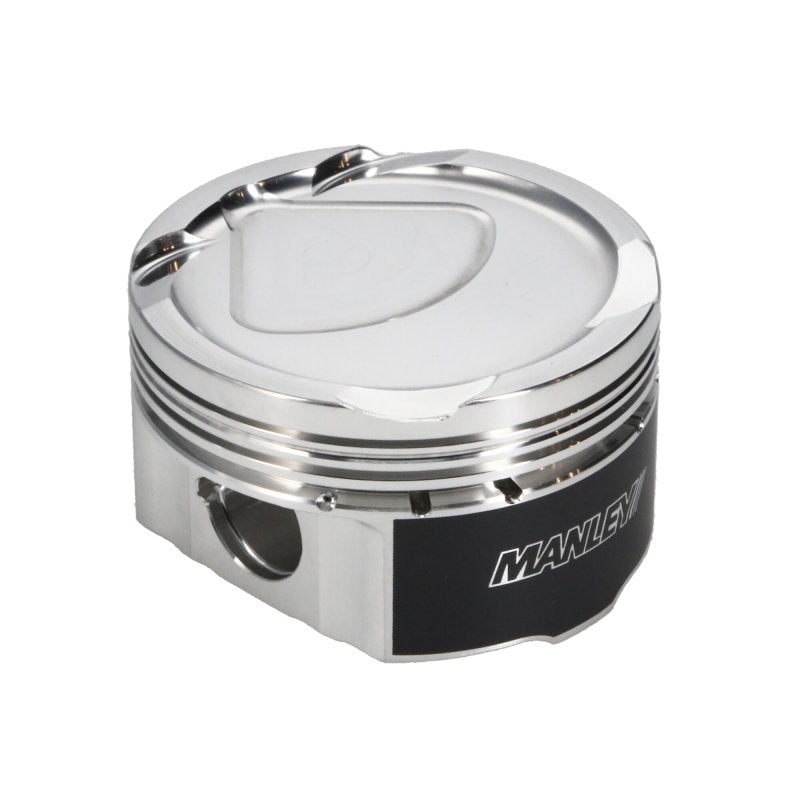

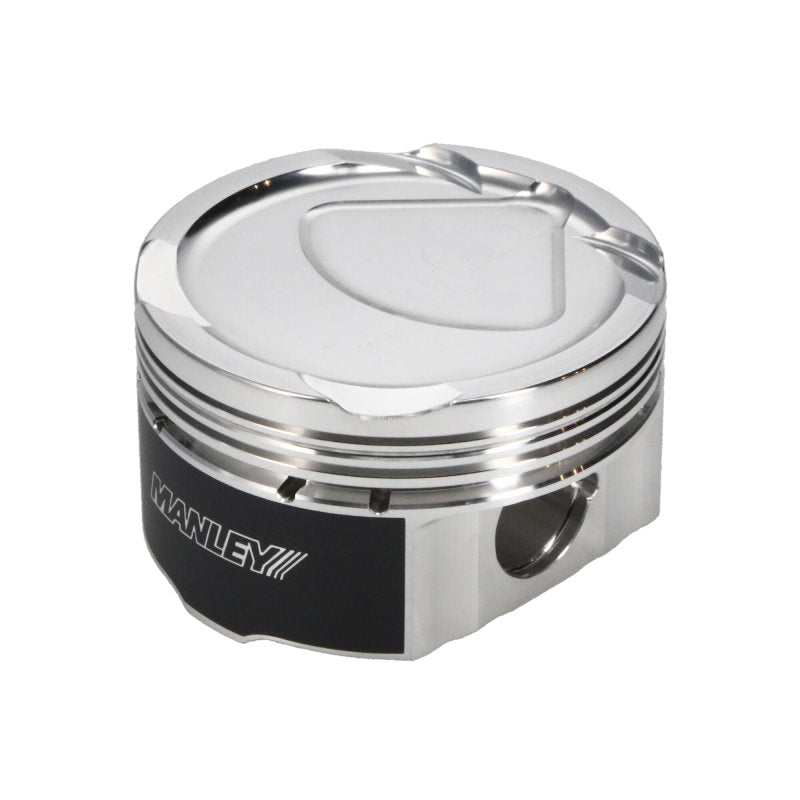

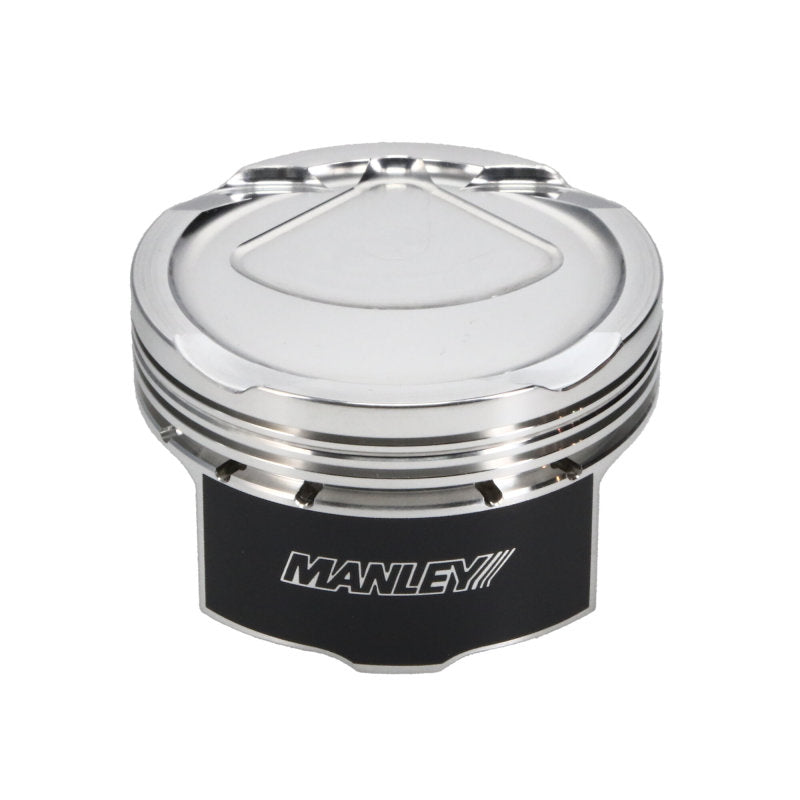

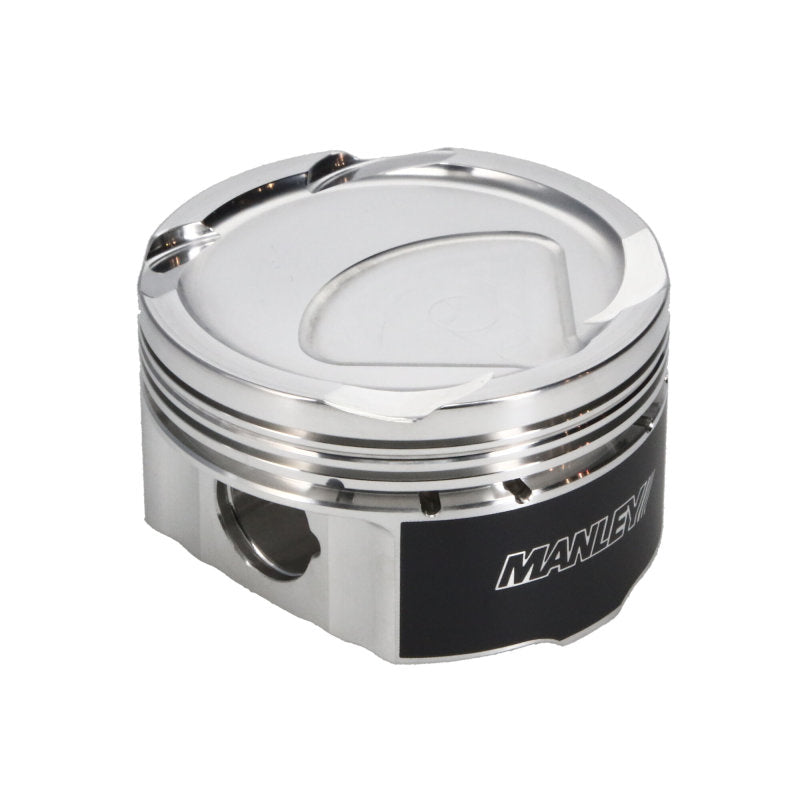

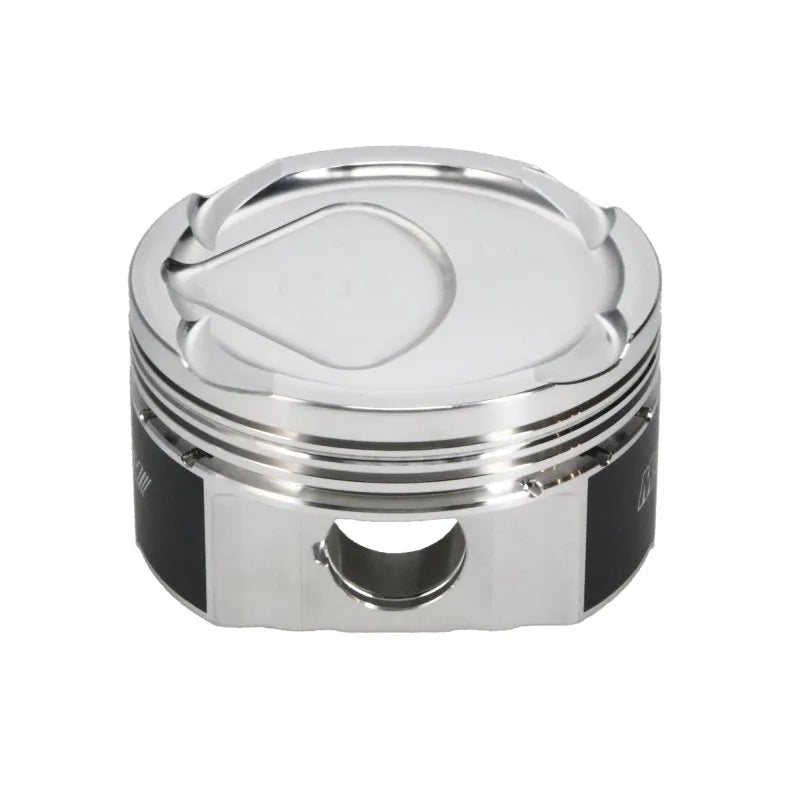

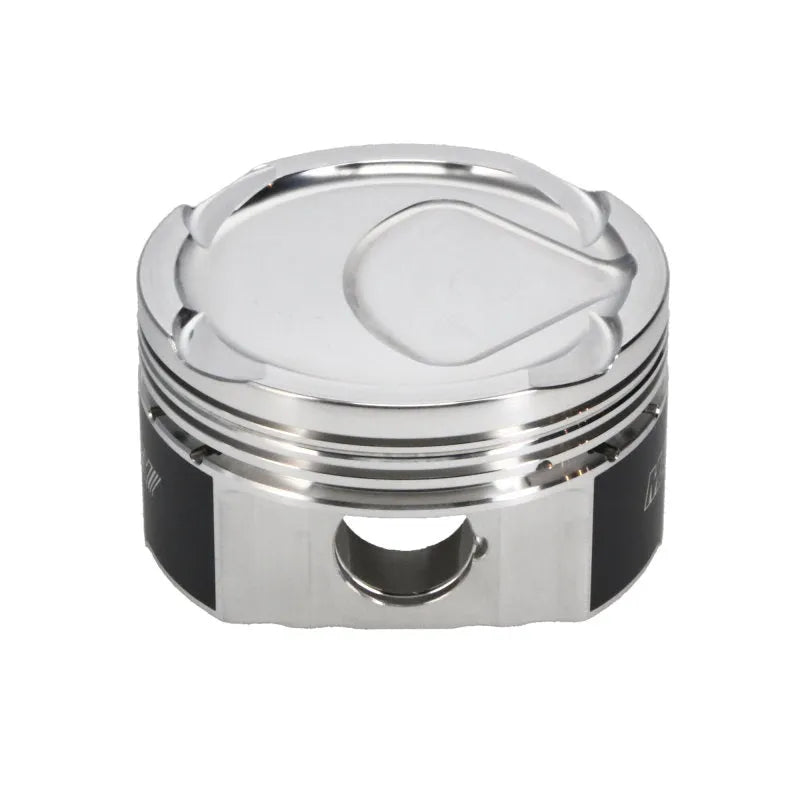

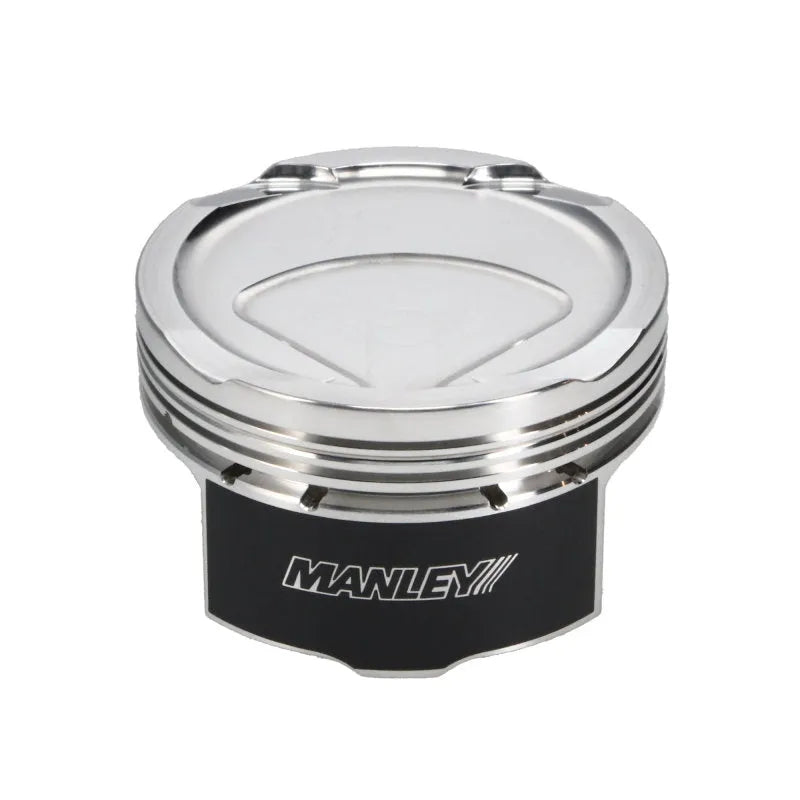

Manley Performance 86mm STD Grade A Dish Piston
2017–2020 Toyota 86 / 2013–2020 Subaru BRZ / 2013–2016 Scion FR-S
632600CA-1
Overview:
The Manley 86mm STD Grade A Dish Piston is a high-quality forged piston designed specifically for the Toyota 86, Subaru BRZ, and Scion FR-S models within the specified year ranges. Built to meet the demands of performance enthusiasts and professional engine builders, these pistons offer exceptional strength and durability for both street and track applications.
Featuring Manley’s signature Platinum Series technology, these pistons deliver reliable power gains and enhanced engine longevity. Whether you are upgrading your engine for increased boost, higher RPM capability, or improved overall performance, these pistons provide a solid foundation for your build.
Key Features:
Manley’s 86mm STD Grade A Dish Pistons incorporate advanced engineering and premium materials to ensure superior performance and durability:
- 2618 Alloy Forgings: Manufactured from domestic 2618 alloy, these pistons offer excellent strength and fatigue resistance under high-stress conditions.
- Chrome Moly Wrist Pins: Standard with premium Chrome Moly wrist pins for enhanced durability and reduced wear. Optional upgrades to 9310 and Turbo Tuff/DLC wrist pins are available for even greater strength.
- Exacting Ring Lands and Grooves: Precision-machined ring lands and grooves improve ring seal, which enhances combustion efficiency and power output.
- Cam and Barrel Skirt Profiles: Carefully designed cam and barrel skirt profiles reduce friction and wear on cylinder walls while supporting increased power.
- Unique Fixturing Process: Manley’s proprietary fixturing allows skirt turning and ring groove machining in a single operation, ensuring perfect ring groove to skirt squareness for optimal piston performance.

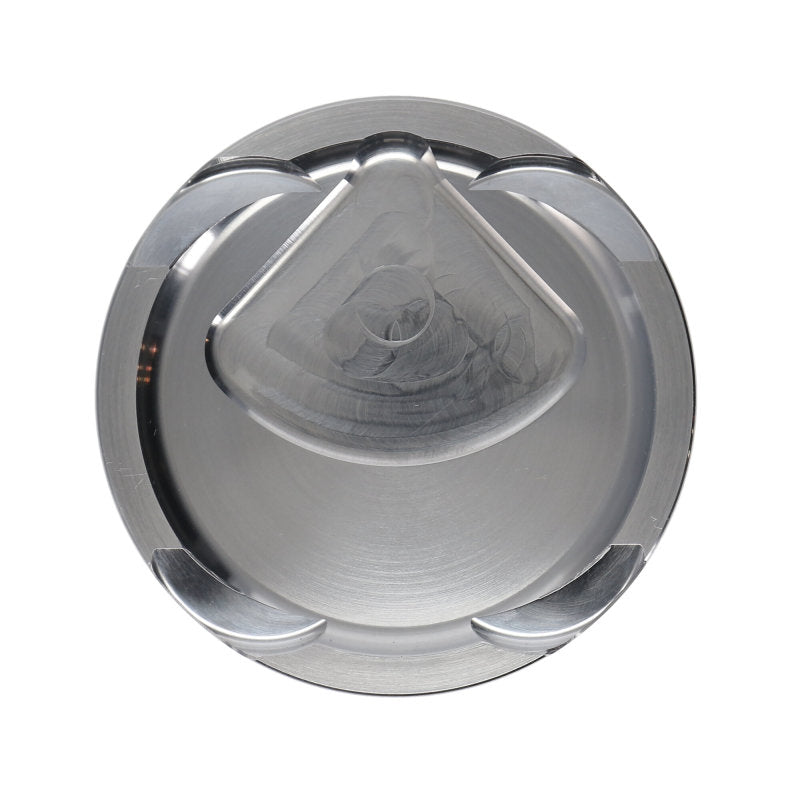

- Dish Design: The dished piston crown is engineered to optimize combustion chamber volume and compression ratio for the specified engines.
- Proven Performance: Trusted by professional tuners and engine builders worldwide for reliable, high-performance builds.
Construction & Design:
These pistons are forged from 2618 aluminum alloy, known for its superior strength and thermal stability compared to standard cast pistons. The forging process enhances grain structure, resulting in pistons that withstand high cylinder pressures and temperatures common in performance and forced induction applications.
The cam and barrel skirt profiles are designed to minimize cylinder wall wear while maintaining tight clearances for improved power delivery. The moly skirt coating on select part numbers further reduces friction and wear, contributing to longer engine life and smoother operation.
Installation & Fitment:
The Manley 86mm STD Grade A Dish Pistons are direct fit replacements for the factory pistons in the following vehicles:
- 2017–2020 Toyota 86
- 2013–2020 Subaru BRZ
- 2013–2016 Scion FR-S
These pistons are designed to work seamlessly with the OEM engine components and require professional installation. No modifications to the engine block or connecting rods are typically necessary when upgrading to these pistons, but proper machine work and balancing are recommended to ensure optimal performance and reliability.
What's Included:
- Single Manley 86mm STD Grade A Dish Piston
- Chrome Moly wrist pin (standard)
- Precision-machined ring lands and grooves
Ideal For:
This piston is ideal for enthusiasts and professional builders seeking a durable, high-performance forged piston for naturally aspirated or forced induction builds in the Toyota 86, Subaru BRZ, and Scion FR-S platforms. It supports increased horsepower and torque demands while maintaining reliability for street, track, or competition use.
