Perrin Oil Cooler Kit: Scion FRS (13-16) / Subaru BRZ (13-20) / Toyota 86 (17-20)

Perrin Oil Cooler Kit

13-16 Scion FRS

13-20 Subaru BRZ

17-20 Toyota 86

PSP-OIL-113

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler for BRZ/FR-S/86/GR86.

Oil Cooler Core Dimensions 9.5" x 4.75" x 2.2"

Core Delta PSI 3.0/3.5 PSI

Core BTU/hr Range 22,000-29,000

Additional Oil Required 1 quart

Mounting Brackets 6061 T6 aluminum

Filter Spacer 6061 T6 Aluminum

Oil Cooler Thermostat 85°C Activation Temp

Hose Size -10

Hose Construction AQP Elastomer Tube, Textile Braid Reinforcement, AQP Elastomer Cover

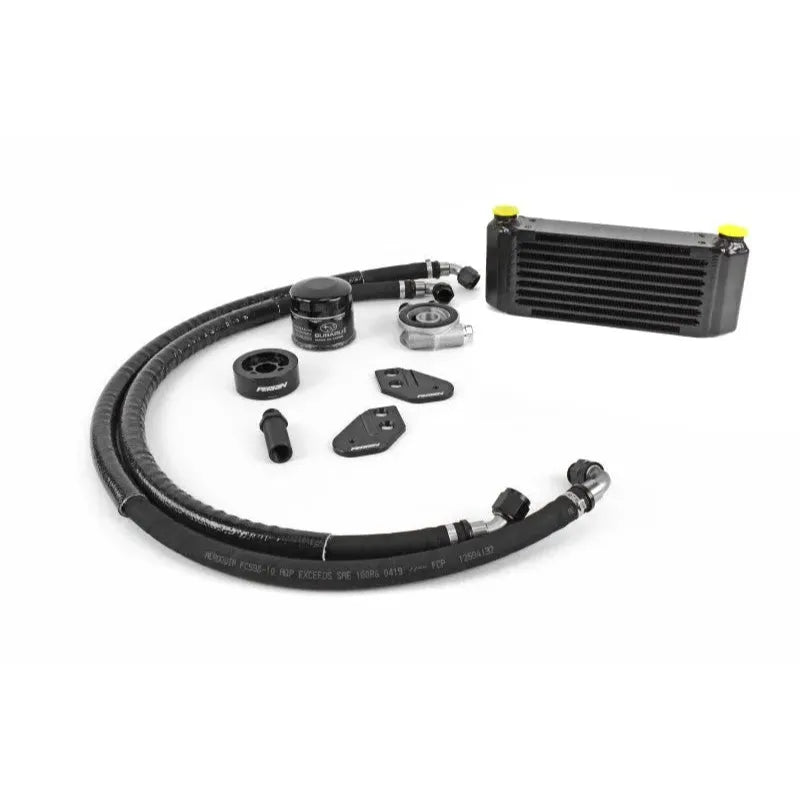

PSP-OIL-113

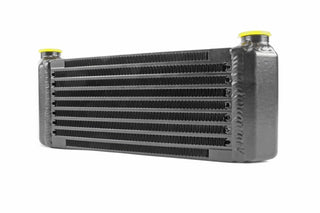

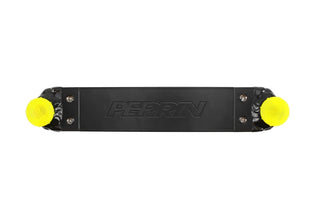

• (1) PERRIN Oil Cooler Core

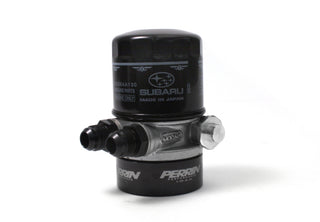

• (1) PERRIN Oil Filter Spacer
• (1) Thermostat Oil Filter/Cooler Adapter
• (1) M20 Threader Adapter

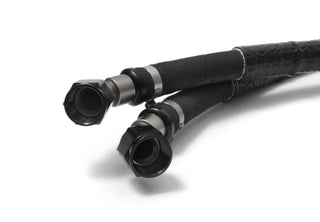

• (1) Long High-Pressure Hose
• (1) Short High-Pressure Hose

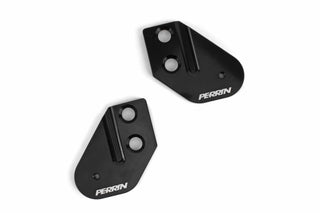

• (2) PERRIN Oil Cooler Mounting Brackets
• (2) 1.25" OD Fender Washers
• (2) M6x50 Socket Cap Screws
• (4) M6x15 Button Head Bolts
• (15) Zip ties
• (1) PERRIN License Plate Frame
• Warranty & Instructions

5 Year Warranty

PERRIN Performance warrants to the original purchaser that all PERRIN products will be free from defects in material and workmanship within a sixty (60) month period from the date of purchase. *Some exclusions apply
