HKS Oil Cooler Kit
2013–2020 Scion FR-S, Subaru BRZ & 2017–2020 Toyota 86
15004-AT112
Overview:
The HKS S-Type Oil Cooler Kit is engineered specifically for late-model Scion FR-S, Subaru BRZ, and Toyota 86 vehicles, providing reliable oil temperature management under demanding driving conditions. Designed to maintain optimal engine oil temperatures, this kit is essential for drivers who push their cars on the track or equip them with GT supercharger systems. By controlling oil temperature effectively, it helps protect engine components from heat-related wear and ensures consistent performance during high-stress driving scenarios.
Installed discreetly inside the fender, the oil cooler kit offers a clean, factory-like appearance while delivering superior cooling efficiency. This makes it an ideal upgrade for enthusiasts seeking both reliability and enhanced engine longevity without compromising vehicle aesthetics.
Key Features:
The HKS S-Type Oil Cooler Kit combines thoughtful engineering with high-performance components to deliver dependable oil cooling for your 86/BRZ platform. Key features include:

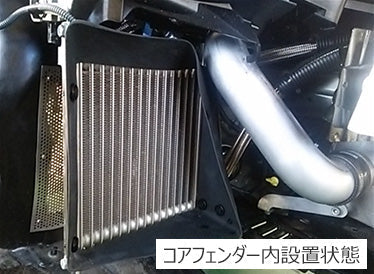

- Core mounted inside the fender for discreet installation and protection from road debris
- Compatible with GT supercharger tuning, including GT Supercharger System Pro Kit and various GT bolt-on turbo kits
- Dedicated air guide design to maximize cooling efficiency even during circuit driving or spirited street use
- High cooling capacity to maintain optimal oil temperatures under extreme heat and high load conditions

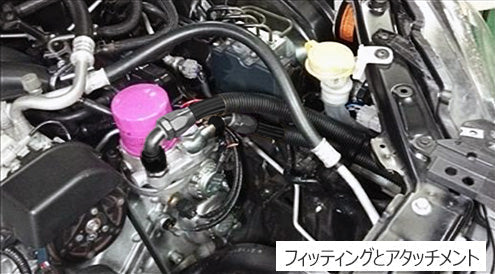

- Includes 86BRZ-specific spacer and center bolt to ensure proper fitment and avoid interference at the oil filter mounting area
- Recommended for both forced induction and naturally aspirated engines running on demanding circuits
- Requires modification of radiator support and plastic cover for installation
- Note: Not compatible with fog lamps or BRZ LED accessory liners
Construction & Design:
The oil cooler core is crafted with high-quality materials designed to withstand extreme heat and pressure, ensuring long-lasting durability. Its placement inside the fender protects it from external damage while allowing efficient airflow through a dedicated air guide. This thoughtful engineering balances cooling performance with a clean installation that maintains the vehicle’s original styling.
Specialized mounting hardware, including a spacer and center bolt tailored for the 86/BRZ oil filter flange, guarantees a secure and precise fit. The kit’s design accommodates supercharger and turbocharger setups with front-mounted intercoolers, making it versatile for various performance builds.
Installation & Fitment:
The HKS S-Type Oil Cooler Kit is designed for direct fitment on 2013–2020 Scion FR-S, Subaru BRZ, and 2017–2020 Toyota 86 models. Installation requires some modification to the radiator support and plastic cover to accommodate the cooler core inside the fender. Additionally, the kit is not compatible with factory fog lamps or BRZ LED accessory liners, which must be removed prior to installation.
Included spacers and bolts ensure proper clearance and secure mounting at the oil filter flange, preventing interference and maintaining engine integrity. This kit is ideal for vehicles equipped with GT supercharger or bolt-on turbo kits, but also benefits naturally aspirated cars used in circuit driving conditions.
What's Included:
- Oil cooler core mounted inside fender
- Dedicated air guide for optimized airflow
- 86BRZ-specific spacer and center bolt for oil filter flange
- Mounting hardware and fittings required for installation
- Installation instructions
Ideal For:
This oil cooler kit is perfect for enthusiasts and racers who demand reliable oil temperature control during high-performance driving. It is especially suited for:
- Owners of Scion FR-S, Subaru BRZ, and Toyota 86 models from the specified years
- Vehicles equipped with GT supercharger or bolt-on turbo kits
- Drivers who frequently participate in track days or circuit racing
- Those seeking to protect engine longevity by preventing oil overheating
- Performance builds requiring discreet, efficient oil cooling solutions
