Wilwood 4-Piston Caliper Front Big Brake Kit

2005–2010 Scion tC

140-9013 / 140-9013-D

Overview:

The Wilwood 4-Piston Caliper Front Big Brake Kit is a high-performance upgrade designed specifically for the 2005 to 2010 Scion tC. This comprehensive front brake kit delivers exceptional stopping power, making it ideal for enthusiasts seeking improved braking performance for street, sport driving, and occasional track use. By upgrading your vehicle’s front braking system with Wilwood’s proven components, you’ll experience enhanced pedal feel, reduced fade, and superior heat dissipation compared to the factory setup.

Built with quality and reliability in mind, this kit is perfect for drivers who want to complement their wheel, tire, and suspension upgrades with a braking system that matches their vehicle’s performance potential.

Key Features:

This Wilwood Big Brake Kit combines advanced engineering and premium materials to provide outstanding braking performance and durability.

• Billet Superlite 4-piston calipers engineered for consistent clamping force and improved brake modulation
• 12.88" GT series directional vane rotors available in slotted or drilled & slotted configurations for enhanced cooling and debris clearance
• Machined aluminum hats designed to fit OE front hubs, ensuring straightforward installation and excellent rotor support
• PolyMatrix high-performance brake pads that offer strong initial bite and fade resistance
• ABS compatible design maintains factory safety system functionality
• Forged Superlite calipers available in anodized or black finish for durability and style
• Includes all necessary brackets and hardware for a complete front brake upgrade

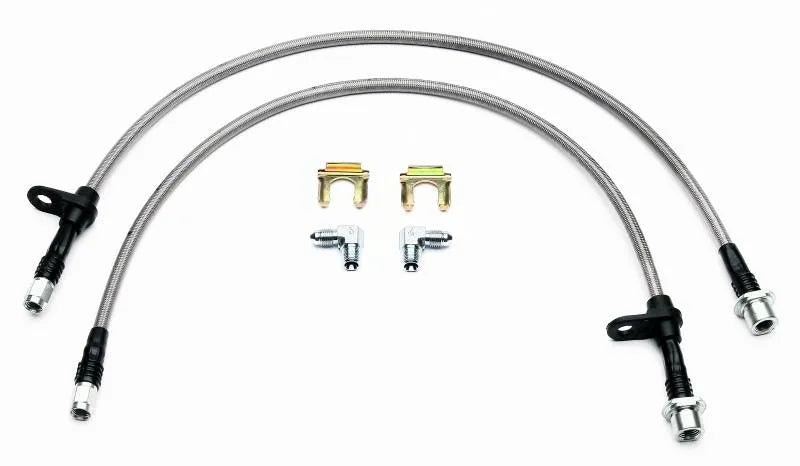

• Optional stainless steel braided brake lines (part #220-9365) recommended for improved brake pedal feel and durability

Construction & Design:

The kit features forged billet aluminum calipers that provide strength and lightweight performance. The 12.88" rotors utilize GT series directional vanes to optimize airflow and heat dissipation, reducing brake fade during aggressive driving. The machined aluminum hats are precision-engineered to bolt directly to the factory front hubs, ensuring a secure and precise fit without modification. PolyMatrix brake pads are designed to deliver consistent friction and long service life under demanding conditions.

Installation & Fitment:

This Wilwood Big Brake Kit is engineered for direct bolt-on installation using the original equipment front hubs of the 2005–2010 Scion tC. No cutting, drilling, or special tuning is required, making it a straightforward upgrade for enthusiasts and professional installers alike. While stainless braided brake lines are not included, they are highly recommended to maximize braking performance and pedal feel.

• Fits 2005–2010 Scion tC front hubs
• Uses factory mounting points for calipers and rotors
• No modifications to vehicle suspension or steering components necessary

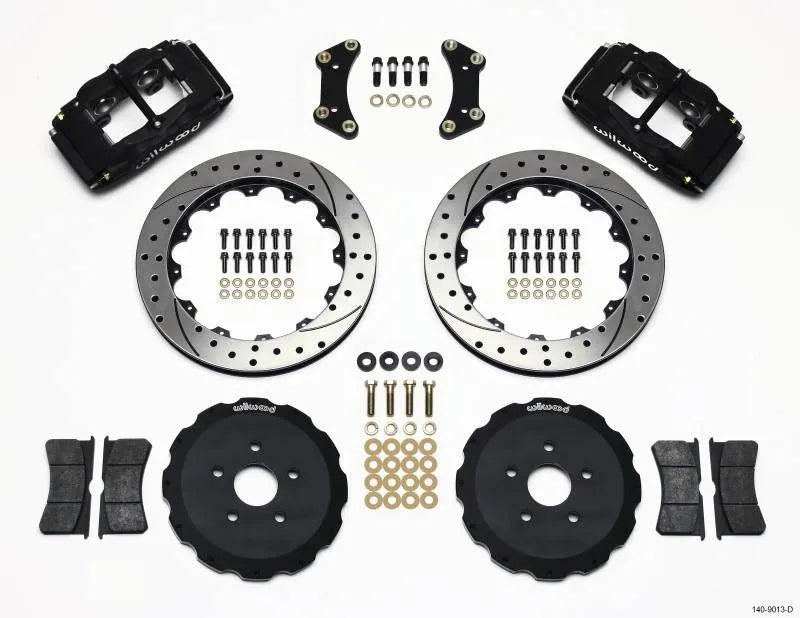

What's Included:

• Pair of Wilwood forged Superlite 4-piston front calipers (right and left sides)
• Set of 12.88" GT series rotors (choose slotted or drilled & slotted option)
• Machined aluminum rotor hats compatible with OE hubs
• High-performance PolyMatrix brake pads
• All required mounting brackets and hardware

Ideal For:

This brake kit is ideal for Scion tC owners who want to upgrade their front braking system for improved stopping power and heat management. It suits drivers who participate in spirited street driving, autocross, or occasional track days and desire a reliable, high-quality brake upgrade that complements other performance modifications.
